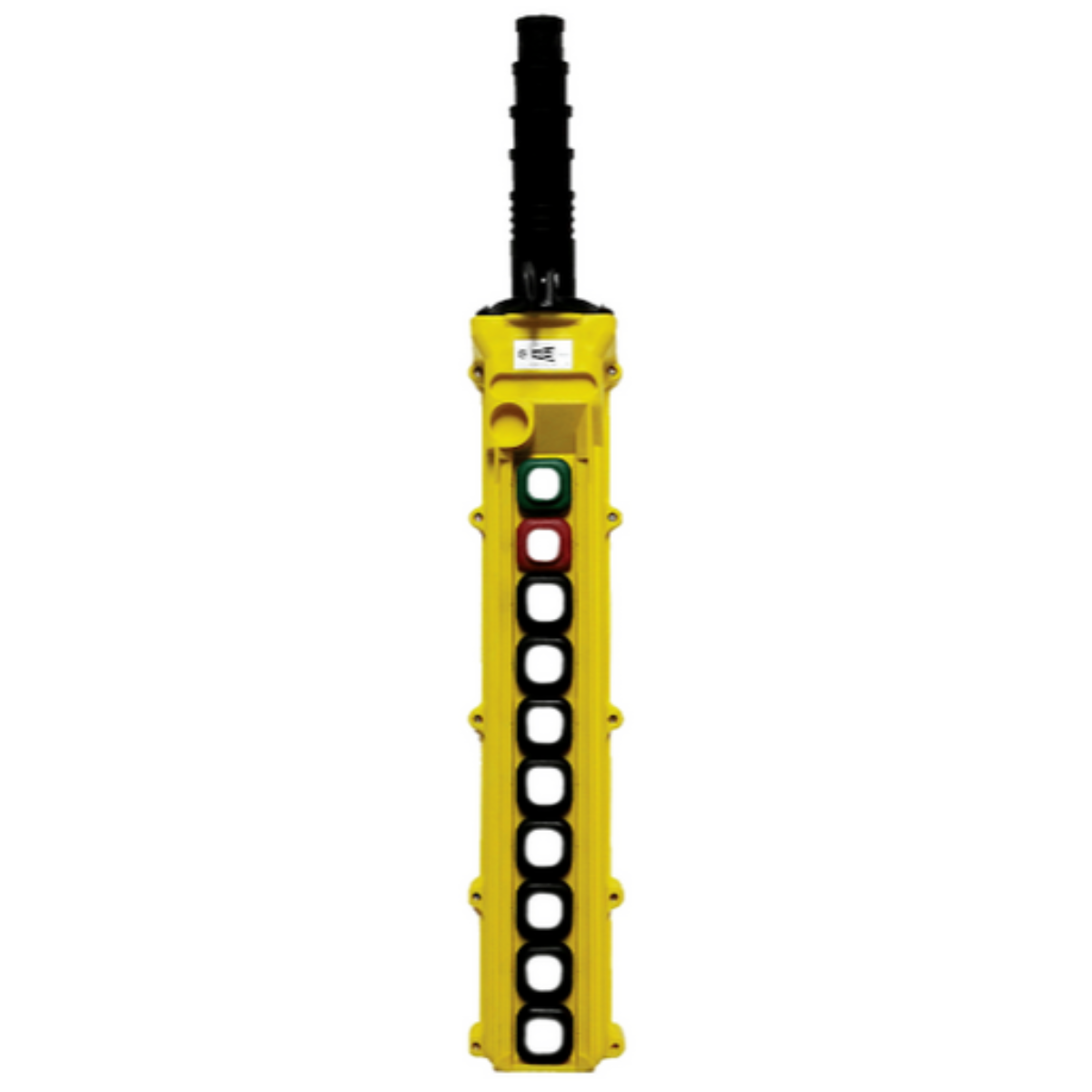

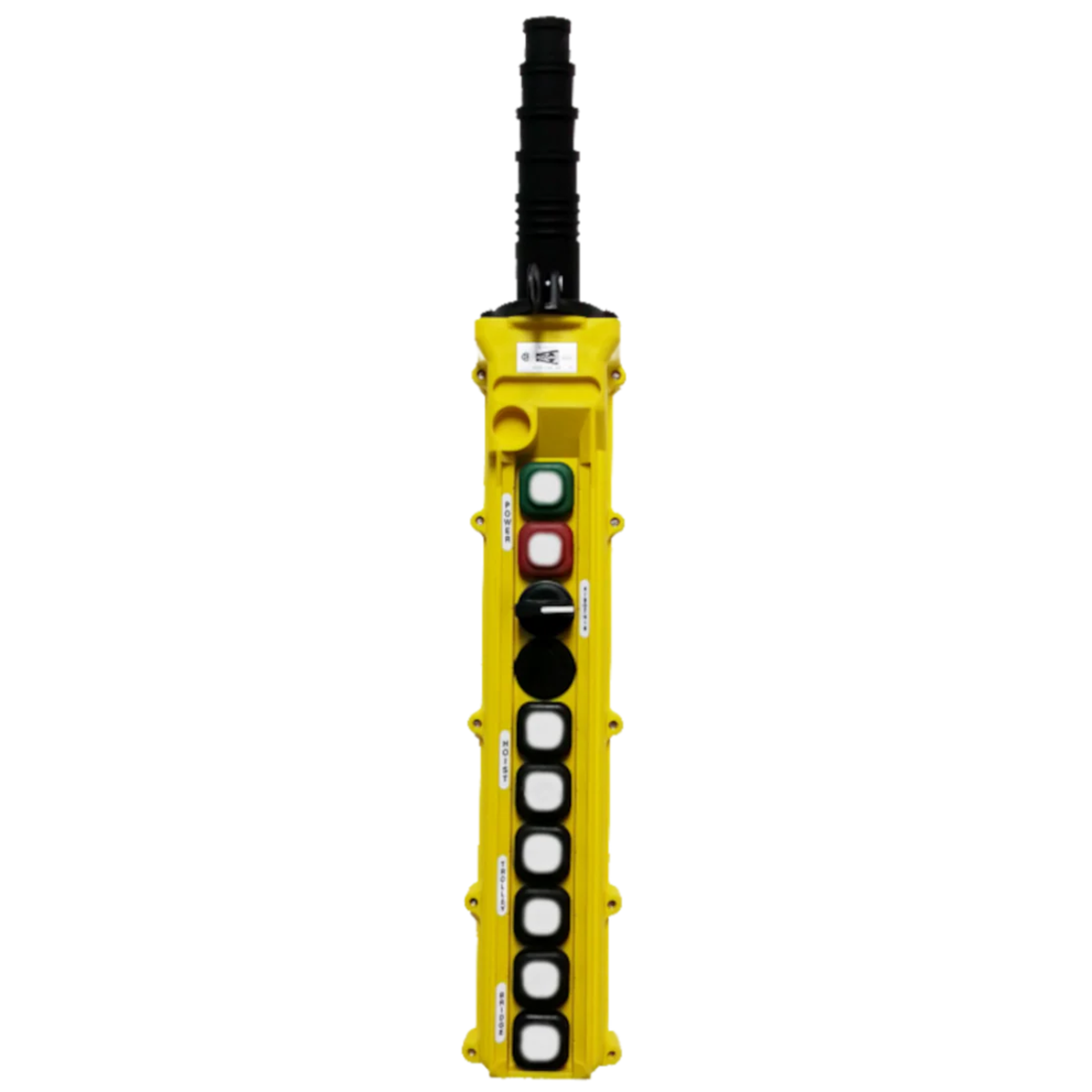

The Duct-O-Wire L Series Pendant Push Button Station, 10-Button, Slim Profile, Single Speed, Maintained On or Off is built for operators who need dependable, hands on control over crane, hoist, or conveyor motions without any guesswork. Rather than motion buttons, this model is built around a single, dedicated maintained on or off switch, giving you a simple start and stop station for power control on your hoist, crane, monorail, or conveyor. This makes it an ideal fit anywhere you need clean power control without the complexity of multiple motion buttons.

With a maintained action, the switch stays in the position you set it to until you switch it back, which is convenient for equipment that needs to run continuously between operator actions. Like every station in the Duct-O-Wire L Series line, it is molded from bright yellow polypropylene for high visibility around moving equipment, and the slim back profile keeps the pendant light and comfortable to hold through a full shift.

This pendant is a straightforward, dependable option for facilities that want a dedicated on or off control station rather than a full motion pendant. It mounts easily onto existing pendant drops and fits the same footprint as other 2 button L Series stations, so replacing an older or damaged unit is quick and painless.

Product Info:
• Button configuration: 10 button, dedicated on or off switch
• Switch action: maintained
• Enclosure style: slim profile
• Approximate dimensions: 3.13 inches wide, 2.63 inches deep, 15.00 inches long
• Approximate ship weight: 1.04 pounds
• Cable range: 0.640 to 0.890 inches, multi step cord grip for 4 to 24 conductor cable
• Enclosure rating: NEMA 1, 3, 4, 4X, 12 (NEMA 4 and 4X without cord grip installed)
• Certifications: UL Listed, CSA Approved
• Included: legend plates, strain relief hook, cable clamp set, and neoprene boots

Whether you are replacing a worn pendant or outfitting a new hoist or crane installation, the Duct-O-Wire L10-S-1M gives you dependable, ready to wire control backed by a well established manufacturer. Order the model that matches your button count, motion, and switch requirements, and expect the same rugged build quality and easy installation across the entire L Series pendant line.
