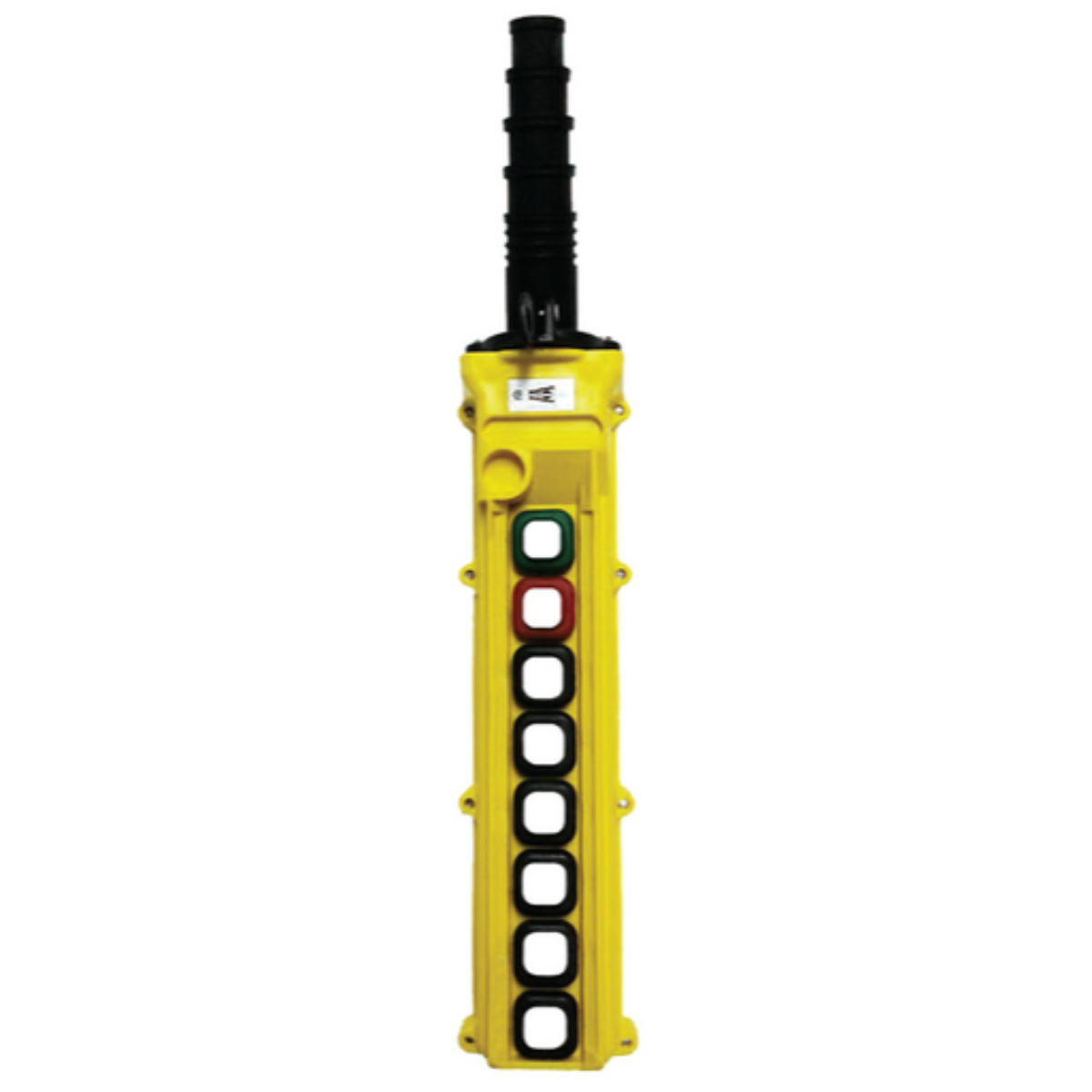

Duct-O-Wire L8-S-2M Pendant Push Button Station
Series: L Series
Category: Industrial Pendant Control Stations
Product Overview
The Duct-O-Wire L8-S-2M is a high-performance, ergonomic pendant push button station designed for the precise and reliable operation of overhead cranes, hoists, and other industrial machinery. As part of the L Series, this 8-button shallow pendant station features a three-motion control layout, enabling independent control of lift, travel, and traverse motions.
Its slim, shallow-profile design enhances operator comfort and allows for simple installation in a wide range of applications. Engineered with rugged polypropylene construction and rated for NEMA 1, 3, 4, 4X, and 12 environments, the L8-S-2M offers dependable operation in challenging conditions, including dust, moisture, and industrial contaminants.
Key Features
- Three-Motion Operation: Supports complex machinery control with separate buttons for each function.
- Durable Construction: Polypropylene housing resists impacts, chemicals, and environmental wear.
- Slim Ergonomic Profile: Designed for operator comfort and easy handling.
- Wide Environmental Ratings: Suitable for indoor and outdoor use (NEMA 1, 3, 4, 4X, 12).
- Cord Grip Flexibility: Multi-step grip supports 4 to 24 conductor cables.
- Replaceable Neoprene Boots: Protect switches and extend unit life.
- UL Listed and CSA Approved: Meets industry standards for safety and quality.
- Accessory Options: Compatible with a wide variety of switch configurations and legend plates.
Technical Specifications
SpecificationDetails
Enclosure Type 8 Button Shallow
Length 17.75 inches
Width 3.13 inches
Depth 2.00 inches
Cable Range 0.640 – 0.890 inches
Approx. Shipping Weight 0.88 lbs (0.4 kg)
Material Impact-Resistant Polypropylene
Environmental Ratings NEMA 1, 3, 4, 4X, 12
Cord Grip Multi-Step for 4–24 Conductor Cable
Certifications UL Listed, CSA Approved
Mounting Strain Relief Hook & Cable Clamp Set
Legend Plates Easy-to-read, customizable

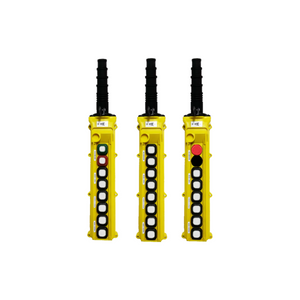

Note: Product image may include optional accessories. Consult the product catalog or a sales representative for complete customization options.
