Product Overview

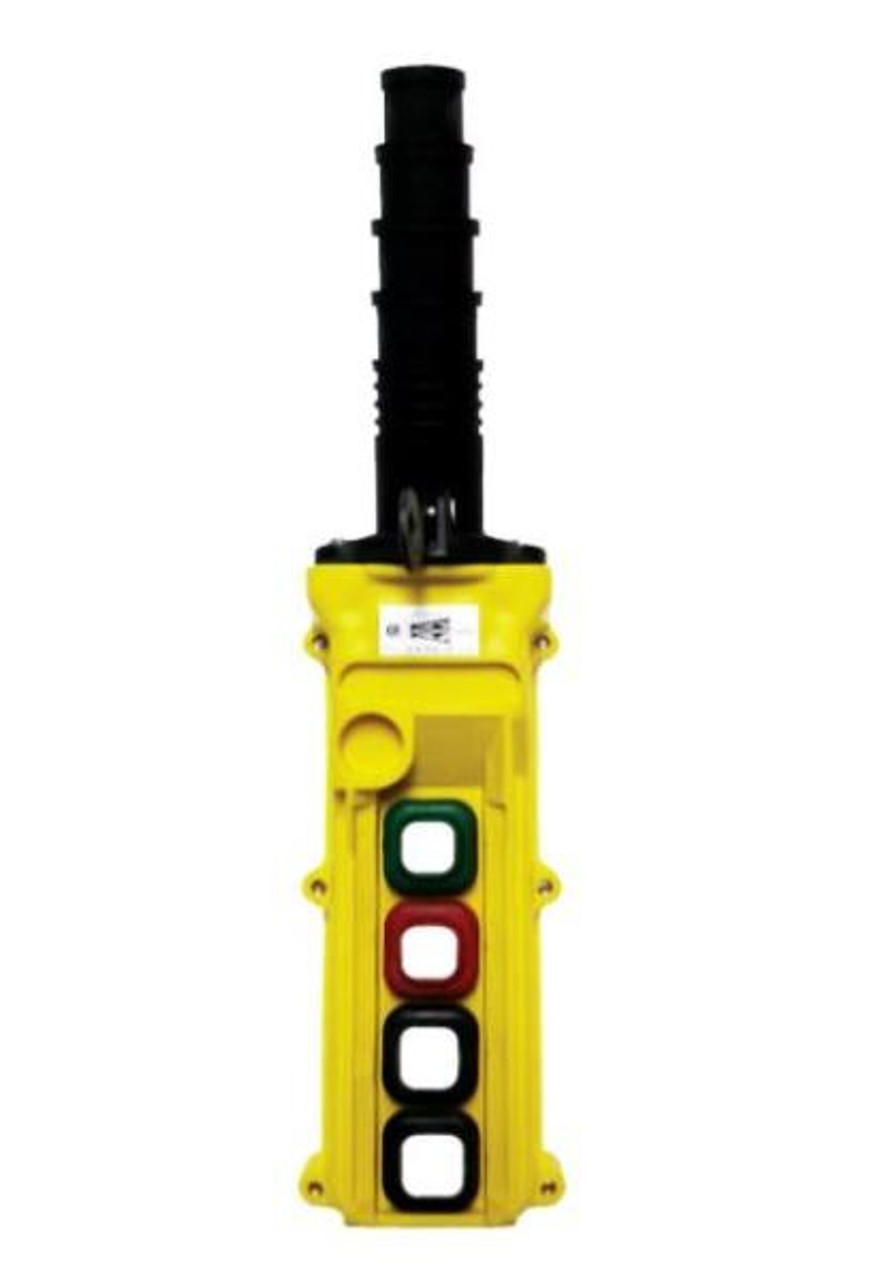

The Duct-O-Wire L4-S-2M Pendant Push Button Station is a compact and durable control solution designed for the reliable operation of your industrial machinery. Part of the trusted L Series from Duct-O-Wire, the L4-S-2M model features a maintained On/Off switch and two-motion control—ideal for applications requiring precise speed management and motion control.
Engineered with ergonomics and durability in mind, the L4-S-2M is constructed from high-impact polypropylene and is built to endure even the harshest industrial environments, including exposure to moisture, chemicals, and mechanical wear. It is well-suited for use with overhead cranes, hoists, monorails, conveyors, and other heavy-duty equipment.
This push-button station's slim back profile and lightweight design allow for easy handling and installation, while features like multi-step cord grips, replaceable neoprene boots, and easy-to-read legend plates ensure continued ease of use and longevity in demanding settings.
Technical Specifications
FeatureDetails
Model L4-S-2M
Enclosure Type 4 Button Shallow
Dimensions 3.13" W × 2.00" D × 8.75" L
Cable Range 0.640" to 0.890"
Approximate Weight: 0.64 lbs
Construction Material High-Impact Polypropylene
Ingress Protection NEMA Types 1, 3, 4, 4X, and 12
Cord Grip Compatibility Multi-Step Cord Grip for 4 to 24 Conductor Cables
Mounting Accessories Strain Relief Hook and Cable Clamp Set Included
Switch Type Maintained On/Off Switch with Two-Motion Buttons
Boot Material Replaceable Neoprene Boots
Markings Easy-to-Read Legend Plates
Certifications UL Listed, CSA Approved
The Duct-O-Wire L4-S-2M provides reliable performance, easy installation, and user-friendly control, making it an ideal choice for industrial environments that demand precision, safety, and durability.
