Product Overview

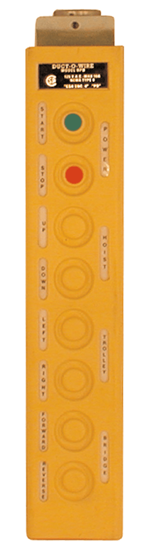

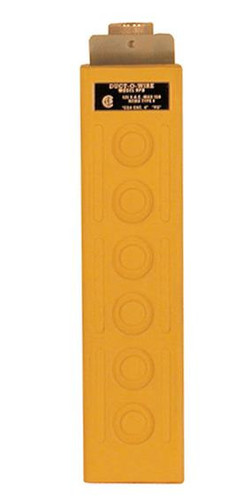

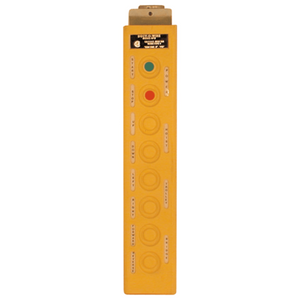

Duct-O-Wire RPB-3-1M Pendant Station
The Duct-O-Wire RPB-3-1M is a rugged, ergonomically designed pushbutton pendant station tailored for overhead crane and hoist applications. Designed with a steel-reinforced nitrile rubber enclosure, this pendant is built to endure harsh industrial environments. Its tongue-and-groove cover plate construction offers superior protection against the elements of dirt, dust, and moisture, making it ideal for demanding conditions.
The RPB-3-1M model supports both one-speed and two-speed control, and it can be configured with momentary or maintained switches to meet various control needs. Its modular design allows for a wide selection of accessory switches and replacement parts, ensuring long-term flexibility and ease of maintenance. Wire mesh grips can be added for enhanced strain relief and cable protection.
Certified by UL and CSA, and rated for NEMA 1, 3, 4, and 12 enclosures, the RPB-3-1M ensures reliable and safe operation across a wide range of industrial settings.
Product Specification Sheet – Duct-O-Wire RPB-3-1M
FeatureSpecification
Product Type Pushbutton Pendant Station
Model Number RPB-3-1M
Enclosure Type Nitrile Rubber Coated Steel Construction
Dimensions (W x D x L) 3.00 in. x 2.5 in. x 15.75 in.
Cable Range 0.640 in. to 0.875 in.
Approx. Shipping Weight: 4.25 lbs.
Speed Control One-Speed and Two-Speed
Switch Type Options Momentary and Maintained
Enclosure Ratings NEMA 1, 3, 4, 12
Reinforcement Steel Reinforced Nitrile Rubber Construction
Button Protection Tongue and Groove Cover Plate
Strain Relief Wire Mesh Grips Available (optional accessory)
Certifications UL Listed, CSA Approved
Accessories A Wide variety of accessory switches and replacement parts are available
Note : The product image may include optional accessories that are not included in the base model.
