Product Overview

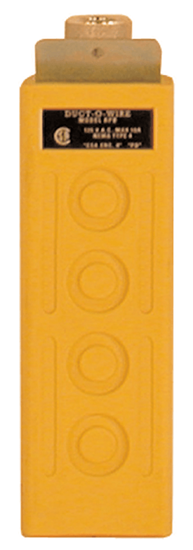

Duct-O-Wire RPB2-1 Pendant Station
The Duct-O-Wire RPB2-1 is a rugged, industrial-grade pushbutton pendant station from the RPB Series, designed for reliable control of overhead cranes and hoists. It offers one-speed and two-speed control options, supporting both momentary and maintained switch configurations to meet a wide range of material handling needs.
Built with steel-reinforced nitrile rubber, this unit is engineered for long service life in harsh environments. Its tongue-and-groove cover plate design offers superior protection against dust, moisture, and other contaminants. A broad selection of accessory switches and optional wire mesh grips for strain relief enhance system flexibility and reliability.
This pendant is UL-listed, CSA-approved, and compliant with NEMA 1, 3, 4, and 12 standards—making it ideal for demanding applications requiring durable and secure operator interfaces.
Technical Specifications
AttributeValue
Model RPB2-1
Control Type One-Speed and Two-Speed Options
Switch Type Momentary and Maintained
Enclosure Material Steel-Reinforced Nitrile Rubber
Protection Design Tongue and Groove Cover Plate
Dimensions (L x W x D) 9.00 in. x 3.00 in. x 2.5 in.
Cable Range 0.437 to 0.740 in.
Approx. Shipping Weight: 2.75 lbs.
Environmental Rating NEMA 1, 3, 4, 12
Certifications UL Listed, CSA Approved
Strain Relief Options Wire Mesh Grips Available
Accessory Compatibility Large Variety of Replacement and Add-On Switches
