Product Overview

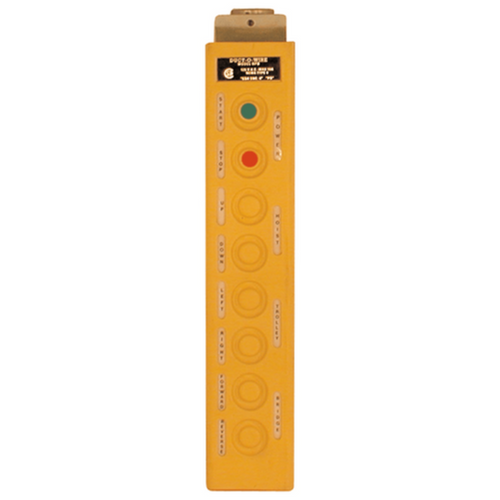

Duct-O-Wire RPB-1-2AM Pendant Station
The RPB-1-2 AM is a rugged and reliable pushbutton pendant station from Duct-O-Wire’s RPB Series, designed for industrial crane and hoist control applications. This model combines both one-speed and two-speed control options, allowing flexible functionality in a compact and ergonomic housing.
Built with steel-reinforced nitrile rubber, the enclosure ensures exceptional durability and protection from harsh environments. The tongue and groove cover plate design prevents contaminants from entering the housing, making the pendant ideal for indoor and outdoor use.
With compatibility for various switches, accessories, and strain relief options, the RPB-1-2 AM offers customizability for a wide range of lifting applications.
Specifications
FeatureDetails
Model RPB-1-2AM
Control Type One-Speed and Two-Speed Control
Construction Steel-Reinforced Nitrile Rubber
Enclosure Type NEMA 1, 3, 4, 12
Dimensions (L x W x D) 9.0 in. x 3.0 in. x 2.5 in.
Cable Range 0.437 to 0.740 in.
Weight (Approx.) 2.75 lbs.
Switch Types Momentary & Maintained
Environmental Protection Tongue and Groove Cover for Element Protection
Certifications UL Listed, CSA Approved
Accessories Wire Mesh Grips, Accessory Switches Available
Grip Options : Optional Wire Mesh Grips for Strain Relief
