Duct-O-Wire RPB Series Pendant Station One Motion-RP-1-One Speed RPB-1-1

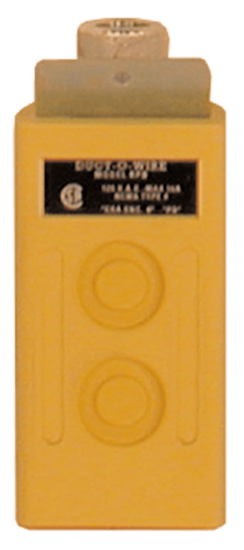

Duct-O-Wire RPB-1-1 Pushbutton Pendant Station

One-Speed Control | Steel-Reinforced Rubber Enclosure | Industrial Duty

Product Description

The Duct-O-Wire RPB-1-1 Pushbutton Pendant Station is engineered for rugged industrial use, offering a dependable control solution for single-motion and one-speed applications. As part of Duct-O-Wire’s highly durable RPB Series, this model is built with a steel-reinforced nitrile rubber enclosure that provides superior resistance to impact, oil, moisture, and industrial contaminants. Its tongue and groove cover plate design further protect internal components and pushbuttons, making it ideal for use in challenging environments like factories, warehouses, and outdoor job sites.

Whether you require momentary or maintained switching, the RPB-1-1 offers configurable operation modes, along with compatibility for a array of accessories and replacement parts to tailor it to your application needs. Optional wire mesh grips provide strain relief and help extend the lifespan of your wiring connections.

Key Features

• One-speed operation for one-motion control tasks
• Durable Steel-Reinforced Rubber Enclosure for harsh industrial conditions
• Tongue and Groove Design protects buttons from dust, moisture, and debris
• Accessory-Compatible: Add wire mesh grips, replacement switches, and more
• NEMA Rated for indoor and outdoor protection (Types 1, 3, 4, 12)
• UL Listed & CSA Approved for compliance and safety

Specifications

FeatureDescription

Manufacturer Duct-O-Wire

Model Number RPB-1-1M

Enclosure Material Nitrile Rubber-Coated Steel

Dimensions (L x W x D) 9.0 in. x 3.0 in. x 2.5 in.

Cable Entry Range 0.437 to 0.740 inches

Weight Approx. 2.75 lbs

NEMA Ratings Types 1, 3, 4, 12

Certifications UL Listed, CSA Approved

Switch Types Momentary or Maintained (depending on setup)

Compatible Accessories Wire mesh grips, replacement buttons/switches

Note

Product images may show optional features and accessories not included with the base model.
