Product Overview

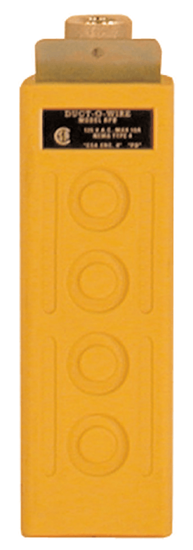

Duct-O-Wire RPB-2-2A Pushbutton Pendant Station
The Duct-O-Wire RPB-2-2A is a compact and durable pushbutton pendant station engineered for efficient industrial control in space-sensitive environments. As part of the rugged RPB Series, this model supports both one-speed and two-speed operations, offering convenience for a wide range of applications, including cranes, hoists, and machine tools. The RPB-2-2A features a steel-reinforced nitrile rubber enclosure that provides superior impact and weather resistance. A tongue and groove cover plate protects internal components by sealing out dust, water, and debris. Despite its smaller footprint, the unit accommodates momentary and maintained switches and is compatible with a variety of accessory and replacement parts. Wire mesh grips are available to enhance cable strain relief, making the RPB-2-2A a reliable choice for harsh industrial settings. UL Listed, CSA Approved, and compliant with NEMA 1, 3, 4, and 12 standards.
Product Specification Sheet
Product Name: Duct-O-Wire RPB-2-2A
Manufacturer: Duct-O-Wire
Manufacturer Part Number: RPB-2-2A
Series: RPB Series
Control Options: One-Speed and Two-Speed Operation
Switch Types: Momentary and Maintained
Enclosure Type: Nitrile Rubber Coated Steel
Environmental Ratings: NEMA 1, 3, 4, and 12
Dimensions:
- Width: 3.00 in.
- Depth: 2.50 in.
- Length: 9.00 in.
Cable Range: 0.437 to 0.740 in.
Approximate Shipping Weight: 2.75 lbs.
Certifications: UL Listed, CSA Approved
Accessories Available:
- Wire Mesh Grips for Strain Relief
- Selection of Accessory and Replacement Switches
Key Features:
- Compact design perfect for limited space applications
- Steel-reinforced construction ensures long service life
- Tongue and groove cover plate for button and component protection
- Customizable for you with a variety of accessory options
Note: The product image may include optional accessories that are not part of the base unit. Contact a representative or refer to the product catalog for complete configuration and ordering information.
