Standard Fold-Away Anchor TrackTM System 1-User (Non-Passable) Trussed Single Track, includes (2) Support Arms, Arm Reach: 8'-0", Bracket Centers 4'-0", Thrust/Pull Loading: ± 4500, Weight: 926 lbs FAF-1-08-23-520-20 Rigid Lifelines

Product Overview

• Worker Capacity: This system is built for one user at a time, ensuring safety with a sturdy trussed single track design. It's all about keeping you safe as you work.

• Support Arms: With two support arms included, you've got extra stability to rely on. These arms are there to back you up and keep everything steady while you do your thing.

• Arm Reach: You've got an arm reach of 8 feet, giving you plenty of room to move around and reach what you need without feeling restricted.

• Extended Track Length: The track spans 23 feet, including overhangs on both ends, giving you ample space to maneuver while you work. No need to worry about running out of room.

• Optimal Support Centers: Supported by brackets spaced 20 feet apart, this system ensures stability and reliability, so you can focus on your task at hand with confidence.

• Bracket Centers: Brackets are spaced 4 feet apart along the track, keeping everything evenly supported and sturdy as you work.

• Rotation Lock Feature: One of the support arms includes a rotation lock, giving you added control and stability as you move around. It's like having an extra set of hands to keep things steady.

• Custom Drop Length: If you're operating manually, you can specify the drop length of the operating rope. Just another way we're making sure this system works perfectly for you.

• Exclusive Auto-Brake Technology: Equipped with an anchor trolley featuring patented auto-brake technology, this system ensures smooth movement along the track without any unexpected surprises.

• Fixed Stops: Fixed stops at each end of the track make sure you stay within the safe zone. Safety first, always.

• High Loading Capacity: With a loading capacity of up to ±4500 pounds, this system can handle whatever you throw at it, so you can work confidently knowing you're supported.

• Optimized Weight: Weighing in at around 926 pounds, this system strikes the perfect balance between stability and maneuverability. It's heavy-duty without being cumbersome.

• Durable Coating and Painting: Coated with yellow industrial enamel, this system is built to last. It'll stand up to whatever your workplace throws at it, keeping you safe and secure.

• Comprehensive System Inclusions: You'll get everything you need with this system, including swing arms, track, trolley(s), end stops, and hangers. It's a complete package designed to make your job easier.

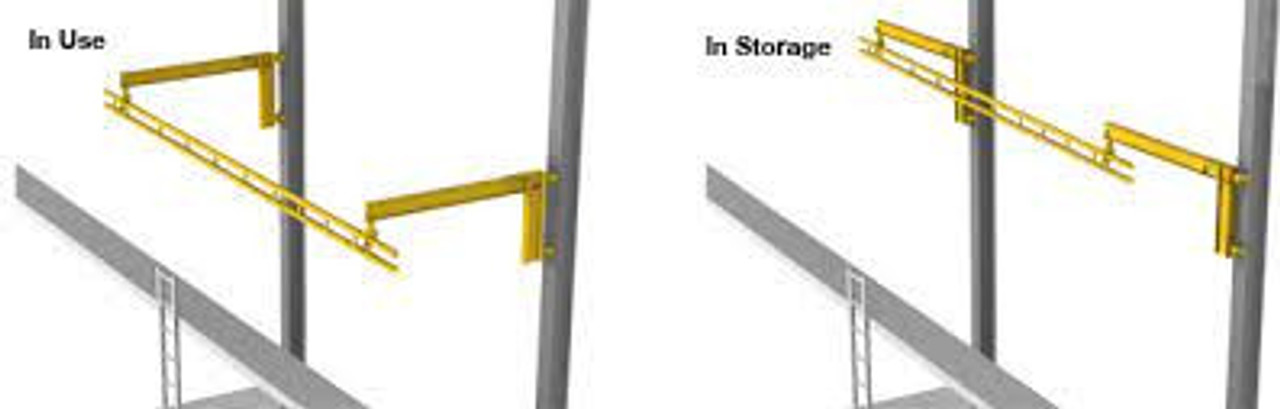

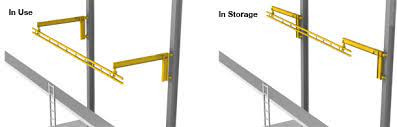

Fold-Away Anchor TrackTM System Standard
Worker Capacity: 1-User (Non-Passable) Trussed Single Track
Includes (2) Support Arms
Arm Reach: 8'-0"
Track Length: 23'-0" Including 18" Overhangs on Both Ends
Support Centers 20'-0"
Bracket Centers 4'-0"
Rotation Lock on One Arm Included
*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,
REMOVE IF MOTORIZED*
**Designed to be used ONLY when fully extended**
Trolleys: 1 Anchor Trolley(s) with Patented Auto-Brake
Technology
Fixed Stops One at Each End
Thrust/Pull Loading: ± 4500
Weight: ± 926 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if
applicable), and hangers.
