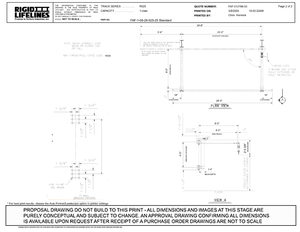

Standard Fold-Away Anchor TrackTM System 1-User (Non-Passable) Trussed Single Track, includes (2) Support Arms, Arm Reach: 8'-0", Bracket Centers 4'-0", Thrust/Pull Loading: ± 4500, Weight: 997 lbs FAF-1-08-28-525-25 Rigid Lifelines

Product Overview

• Worker Capacity: The Fold-Away Anchor TrackTM System is engineered to accommodate a single user at a time, ensuring non-passable functionality for enhanced safety in industrial environments.

• Trussed Single Track Design: Featuring a robust trussed single track design, this system offers exceptional strength and stability while minimizing weight. The trussed configuration enhances structural integrity, providing reliable support during operation.

• Support Arms Inclusion: Two support arms are included with the system to augment stability and support during use. These support arms play a vital role in enhancing safety and functionality, providing additional reinforcement where needed.

• Arm Reach: With an extended arm reach of 8 feet, this system enables users to access distant points within the workspace with precision and efficiency, facilitating enhanced productivity and maneuverability.

• Extended Track Length: The track spans 28 feet in length, including 18-inch overhangs on both ends, ensuring comprehensive coverage within the workspace. The extended track length offers versatility and flexibility in various industrial applications.

• Optimal Support Centers: Supported by brackets spaced 25 feet apart, this system ensures optimal support and stability during operation. The strategic placement of support centers enhances structural integrity and reliability, contributing to safe and efficient operation.

• Bracket Centers: Brackets are spaced 4 feet apart along the track, ensuring even weight distribution and structural stability. The well-designed bracket placement enhances overall performance and safety.

• Rotation Lock Feature: One of the support arms includes a rotation lock mechanism, enhancing safety and stability during use. The rotation lock prevents unintended rotation of the arm, ensuring controlled movement and minimizing the risk of accidents.

• Custom Drop Length of Operating Rope: Customers have the option to specify the drop length of the operating rope, particularly relevant for manual operation. This customization ensures proper installation and operation of the system, aligning with individual application requirements.

• Exclusive Auto-Brake Technology: Equipped with an anchor trolley featuring patented auto-brake technology, this system ensures smooth and controlled movement along the track. The auto-brake function engages automatically, enhancing safety and preventing unintended traversal.

• Fixed Stops: Fixed stops are integrated at each end of the track to prevent the trolley from traversing beyond the designated limits. These fixed stops serve as safety features, ensuring controlled operation within the predefined range and minimizing the risk of accidents or damage.

• High Loading Capacity: Capable of withstanding thrust or pull loading of up to ±4500 pounds, this system demonstrates exceptional strength and durability. Its robust construction ensures reliable performance in demanding industrial environments.

• Optimized Weight: Weighing approximately 997 pounds, this system strikes a balance between structural stability and maneuverability. The optimized weight facilitates ease of installation and adjustment while providing robust support for overhead movement.

• Durable Coating and Painting: Coated with yellow industrial enamel specifically formulated for indoor applications, this system offers superior corrosion resistance and durability. The durable coating ensures long-term protection against environmental factors, maintaining a professional appearance in indoor work environments.

• Comprehensive System Inclusions: The system comes complete with swing arms, track, trolley(s), end stops, splice(s) (if applicable), and hangers. This comprehensive inclusion ensures ease of installation and operation, streamlining the setup process and enhancing user convenience.

Fold-Away Anchor TrackTM System Standard
Worker Capacity: 1-User (Non-Passable) Trussed Single Track
Includes (2) Support Arms
Arm Reach: 8'-0"
Track Length: 28'-0" Including 18" Overhangs on Both Ends
Support Centers 25'-0"
Bracket Centers 4'-0"
Rotation Lock on One Arm Included
*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,
REMOVE IF MOTORIZED*

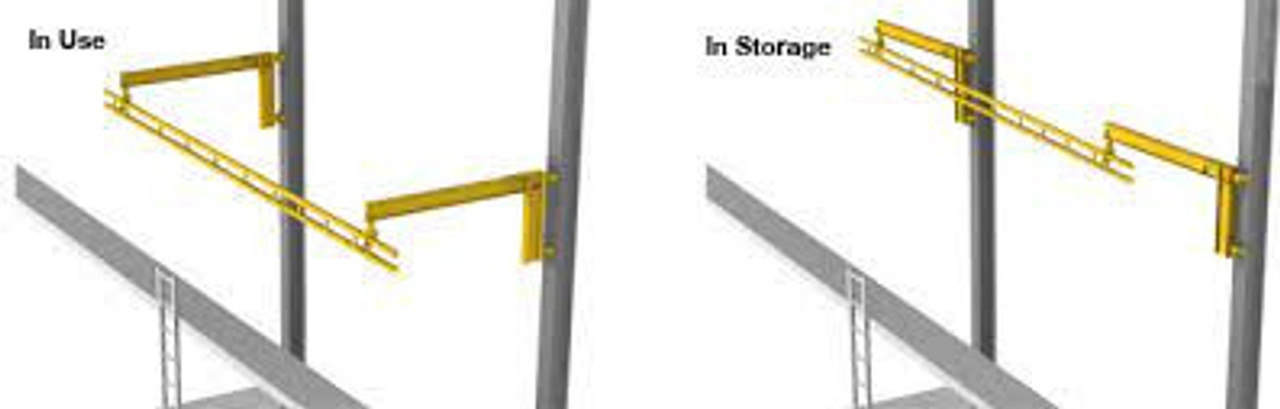

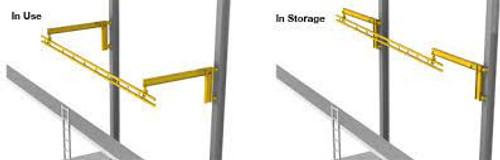

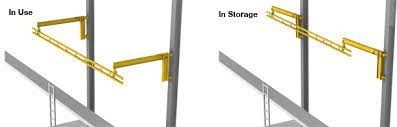

**Designed to be used ONLY when fully extended**
Trolleys: 1 Anchor Trolley(s) with Patented Auto-Brake
Technology
Fixed Stops One at Each End
Thrust/Pull Loading: ± 4500
Weight: ± 997 lbs
Coating & Painting: Yellow Industrial Enamel for Indoor Application
The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if
applicable), and hangers.
