Standard Fold-Away Anchor TrackTM System 1-User (Non-Passable) Trussed Single Track, includes (2) Support Arms, Arm Reach: 8'-0", Bracket Centers 4'-0", Thrust/Pull Loading: ± 4500, Weight: 1119 lbs FAF-1-08-33-530-30 Rigid Lifelines

Product Overview

• Worker Capacity: Engineered to accommodate a single user at a time, ensuring non-passable functionality, the Fold-Away Anchor TrackTM System prioritizes safety in industrial settings.

• Trussed Single Track Design: This system features a robust trussed single track design, meticulously engineered for optimal strength and stability while minimizing overall weight. The trussed configuration enhances structural integrity, providing reliable support during operation.

• Included Support Arms: Enhancing stability and support, the system comes equipped with two support arms. These support arms play a crucial role in reinforcing the structure, promoting safety, and facilitating smooth operation.

• Extended Arm Reach: With an arm reach of 8 feet, users can efficiently access distant points within the workspace, enhancing productivity and maneuverability during tasks.

• Extended Track Length: The track spans 33 feet in length, inclusive of 18-inch overhangs on both ends. This extended track length ensures comprehensive coverage within the workspace, offering versatility and flexibility in various industrial applications.

• Optimal Support Centers: Supported by brackets spaced 30 feet apart, the system ensures optimal support and stability during operation. The strategic placement of support centers enhances structural integrity, contributing to safe and efficient operation.

• Bracket Centers: Brackets are spaced 4 feet apart along the track, facilitating even weight distribution and structural stability. This well-designed bracket placement enhances overall performance and safety.

• Rotation Lock Feature: One of the support arms includes a rotation lock mechanism, enhancing safety and stability during use. The rotation lock prevents unintended rotation of the arm, ensuring controlled movement and minimizing the risk of accidents.

• Customizable Drop Length of Operating Rope: Customers have the option to specify the drop length of the operating rope, particularly relevant for manual operation. This customization ensures proper installation and operation of the system, aligning with individual application requirements.

• Exclusive Auto-Brake Technology: Equipped with an anchor trolley featuring patented auto-brake technology, the system ensures smooth and controlled movement along the track. The auto-brake function engages automatically, enhancing safety and preventing unintended traversal.

• Fixed Stops: Fixed stops are integrated at each end of the track to prevent the trolley from traversing beyond the designated limits. These fixed stops serve as safety features, ensuring controlled operation within the predefined range and minimizing the risk of accidents or damage.

• High Loading Capacity: Capable of withstanding thrust or pull loading of up to ±4500 pounds, the system demonstrates exceptional strength and durability. Its robust construction ensures reliable performance in demanding industrial environments.

• Optimized Weight: Weighing approximately 1119 pounds, the system strikes a balance between structural stability and maneuverability. The optimized weight facilitates ease of installation and adjustment while providing robust support for overhead movement.

• Durable Coating and Painting: Coated with yellow industrial enamel specifically formulated for indoor applications, the system offers superior corrosion resistance and durability. The durable coating ensures long-term protection against environmental factors, maintaining a professional appearance in indoor work environments.

• Comprehensive System Inclusions: The system comes complete with swing arms, track, trolley(s), end stops, splice(s) (if applicable), and hangers. This comprehensive inclusion ensures ease of installation and operation, streamlining the setup process and enhancing user convenience.

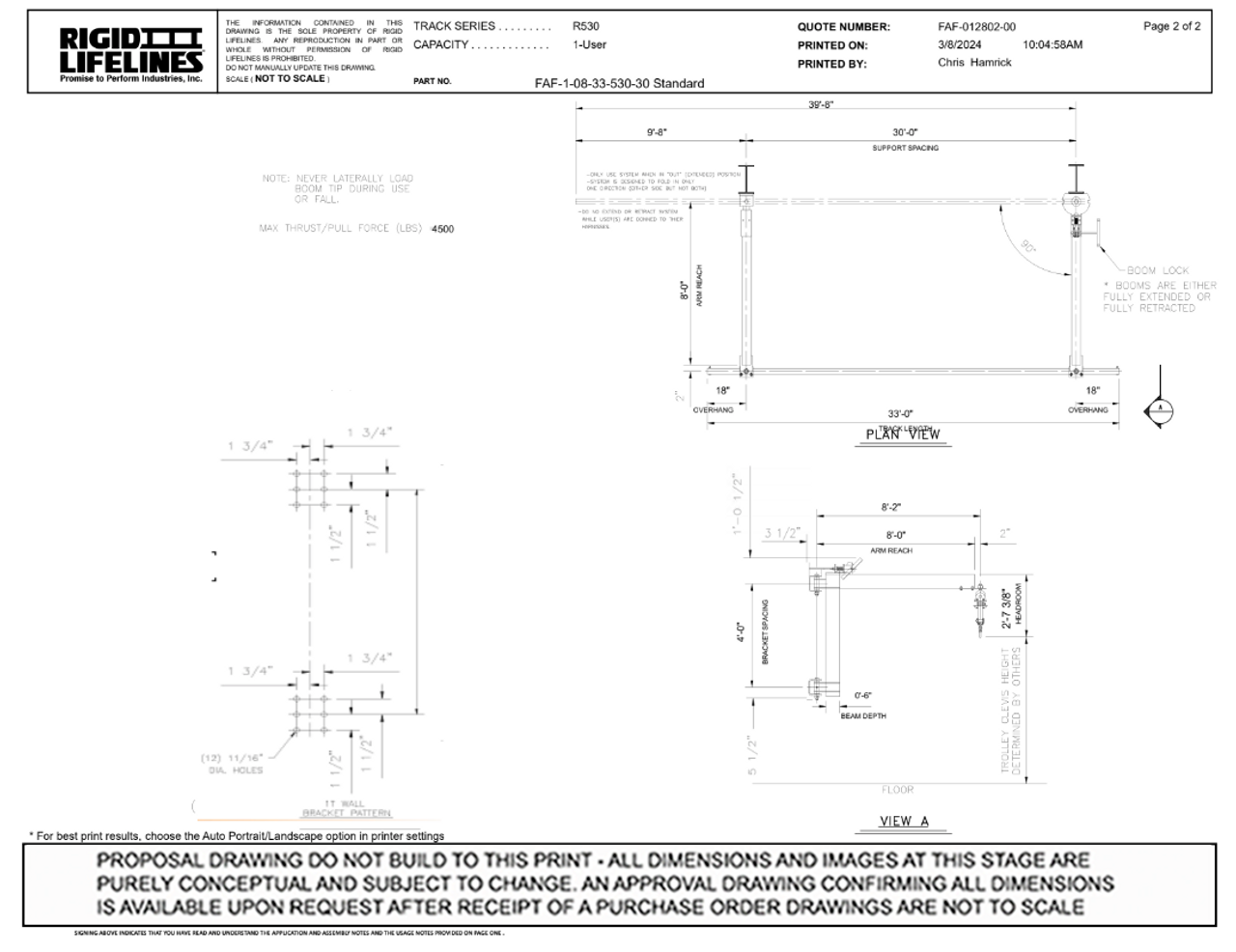

Fold-Away Anchor TrackTM System Standard

Worker Capacity: 1-User (Non-Passable) Trussed Single Track

Includes (2) Support Arms

Arm Reach: 8'-0"

Track Length: 33'-0" Including 18" Overhangs on Both Ends

Support Centers 30'-0"

Bracket Centers 4'-0"

Rotation Lock on One Arm Included

*Customer Must Specify Drop Length of Operating Rope - ONLY IF MANUAL,

REMOVE IF MOTORIZED*

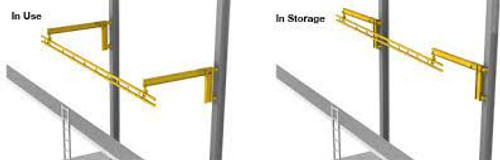

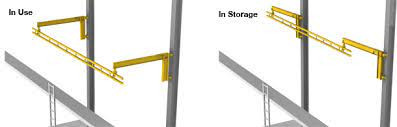

**Designed to be used ONLY when fully extended**

Trolleys: 1 Anchor Trolley(s) with Patented Auto-Brake

Technology

Fixed Stops One at Each End

Thrust/Pull Loading: ± 4500

Weight: ± 1119 lbs

Coating & Painting: Yellow Industrial Enamel for Indoor Application

The system is complete with swing arms, track, trolley(s), end stops, splice(s) (if

applicable), and hangers.
