Product Overview

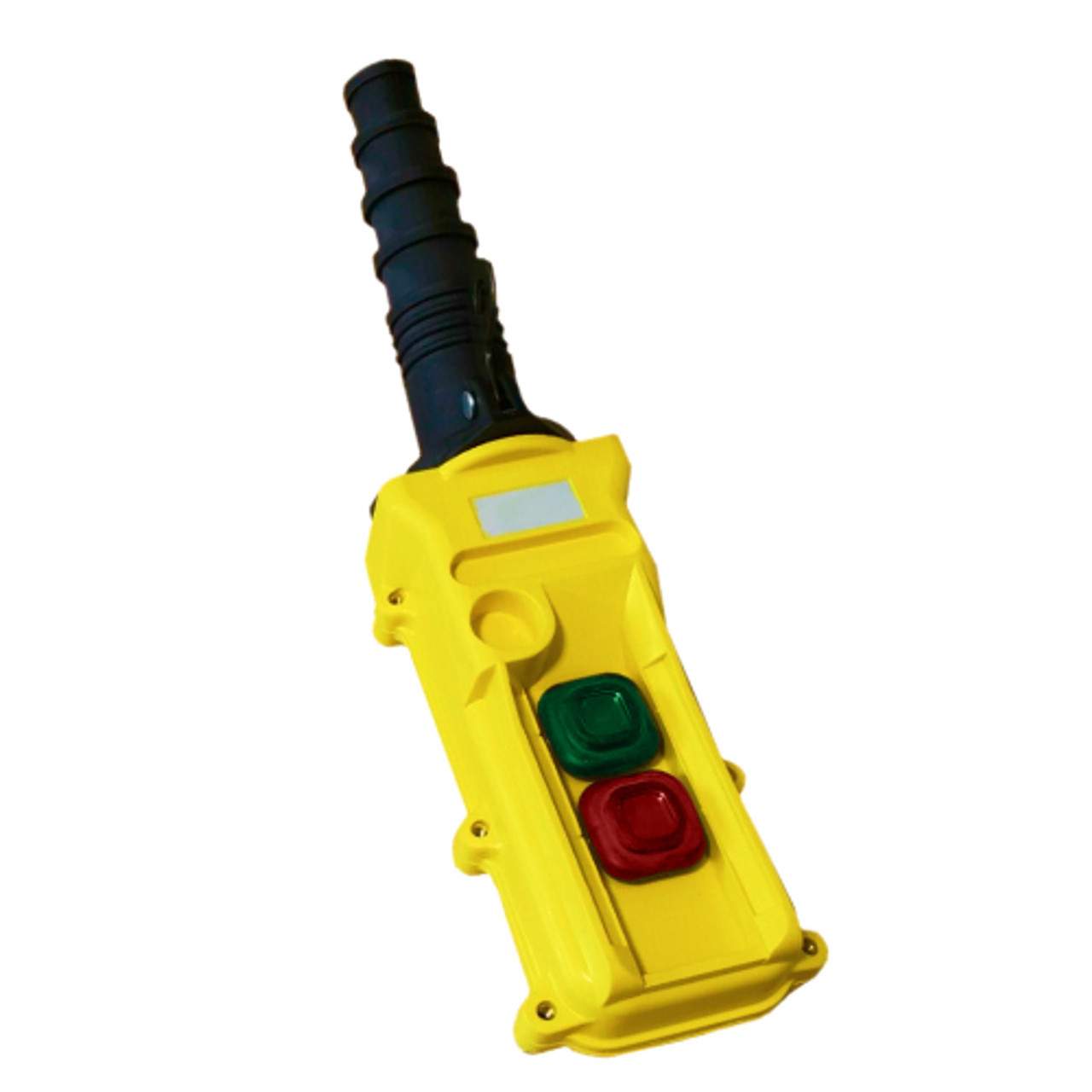

Duct-O-Wire L2-S-A Pendant Station – 2 Button
Product Description:
The Duct-O-Wire L2-S-A is a compact and durable two-button pendant station from the reliable L-Series, designed for controlling single-motion applications or simple on/off power functions. Ideal for replacing standard chain hoist pendants, this model is perfect for hook-mounted hoists or systems using push trolleys.
Being engineered for rugged environments, the L-Series offers high-impact-resistant housing, ergonomic button spacing, and industrial-grade internal components. Whether you're managing a simple hoist system or need a reliable replacement, the L2-S-A delivers dependable performance in a lightweight, easy-to-use format.
Key Features:
- Two-button configuration for single-speed, single-motion control or power on/off.
- Durable thermoplastic housing resists impact, oils, and chemicals.
- Compact and lightweight for reduced operator fatigue.
- Ergonomic design with tactile push buttons for positive operation feedback.
- Meets NEMA 1, 3, 4, and 12 enclosure standards.
- Ideal for chain hoist pendant replacement on hook-mounted or push trolley systems.
Technical Specifications:
SpecificationDetail
Model L2-S-A
Series L-Series
Number of Buttons 2
Button Type Momentary contact (spring return)
Enclosure Rating NEMA Types 1, 3, 4, and 12
Housing Material Impact-resistant thermoplastic
Operating Temperature -15°C to +40°C (5°F to 104°F)
Cable Entry Top or bottom (knockout design)
Contact Rating 600V AC max, 10A continuous
Mounting Hand-held with optional strain relief
Dimensions Approx. 7.5" H x 2.5" W x 2.5" D
Weight Approx. 1.0 lb
