Product Overview

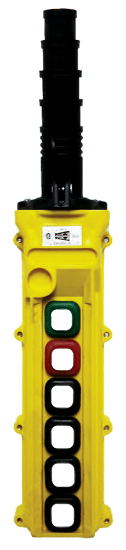

Duct-O-Wire L6-S-1A L Series Pendant Push Button Station
The Duct-O-Wire L6-S-1A is a compact, durable, and ergonomically designed pendant push button station engineered for efficient machine control in industrial environments. As part of the L Series, this 2-motion pendant offers intuitive operation with separate buttons for each motion, providing operators with precise control over equipment such as hoists, cranes, and conveyors.
Constructed from high-impact polypropylene and featuring replaceable neoprene boots, the L6-S-1A is built to withstand demanding conditions, including heat, moisture, and chemical exposure. Its rugged build and NEMA-rated enclosure ensures reliable protection in a wide range of harsh conditions.
Designed for user comfort and versatility, the L6-S-1A features a slim back profile for improved ergonomics and a lightweight form factor for ease of installation and use. It accommodates a multi-step cord grip and includes a strain relief hook and cable clamp set, making it suitable for conductor cables ranging from 4 to 24 wires.
Key Features
- Two-motion control: Dedicated push buttons for independent operation of two different motions
- Ergonomic design: Slim profile and shallow depth reduce operator fatigue
- Durable construction: Impact-resistant polypropylene body with replaceable neoprene boots
- Environmental protection: NEMA 1, 3, 4, 4X, and 12 rated for dust, water, and corrosion resistance
- Simple installation: Lightweight and easy to mount with strain relief and cable clamp included
- Certified quality: UL Listed and CSA Approved
- Clear operation: Easy-to-read legend plates and various accessory compatibility
Technical Specifications
- Enclosure Type: 6-button shallow (configured for 2 motions)
- Dimensions:
- Width: 3.13 in (79.5 mm)
- Depth: 2.00 in (50.8 mm)
- Length: 10.50 in (266.7 mm)
- Cable Range: 0.640 into 0.890 in (16.26 mm to 22.61 mm)
- Weight (approx.): 0.74 lbs (0.34 kg)
- Cable Capacity: Compatible with 4 to 24 conductor cables
- Material: Polypropylene housing with neoprene button boots
