Product Overview

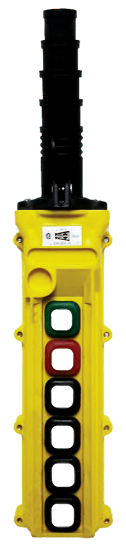

Duct-O-Wire L6-S-2A – L Series Pendant Push Button Station
The Duct-O-Wire L6-S-2A is a compact, durable pendant push button station designed for reliable operation in industrial environments. Engineered for two-motion control, this model is ideal for applications requiring straightforward and precise operation of overhead cranes, hoists, and similar machinery.
The L6-S-2A is designed with simplicity in mind, boasting a lightweight structure that promotes operator comfort and control. Its construction features a polypropylene enclosure, which is specifically engineered to withstand impacts, chemicals, and a wide variety of environmental conditions, ensuring reliability even in harsh conditions.
This station is equipped for two-motion operation, allowing users to navigate equipment with precision, thanks to separate push buttons designated for each movement direction. Additionally, the easy-to-read legend plates and replaceable neoprene boots enhance usability and contribute to the overall durability of the device.
Key Features
- Two-motion design for precise and straightforward machinery control
- A slim back profile enhances ergonomics and aesthetics
- Rugged polypropylene housing ensures long-lasting performance
- NEMA-rated for protection against dust, water, and environmental hazards (Types 1, 3, 4, 4X, 12)
- UL Listed and CSA Approved for compliance with North American safety standards
- Replaceable neoprene boots extend lifespan and reduce maintenance
- Multi-step cord grip supports a wide range of cable types (4 to 24 conductors)
- Strain relief hook and cable clamp set included for secure cable management
- A wide variety of optional accessory switches are available for customization
Specifications
- Model: L6-S-2A
- Enclosure Type: 6-Button Shallow (Configured for 2 motions)
- Dimensions:
- Width: 3.13 in.
- Depth: 2.00 in.
- Length: 10.50 in.
- Cable Range: 0.640 in. to 0.890 in.
- Approximate Shipping Weight: 0.74 lbs
- Construction Material: Polypropylene
- Environmental Ratings: NEMA 1, 3, 4, 4X, 12
- Certifications: UL Listed, CSA Approved
