Product Overview

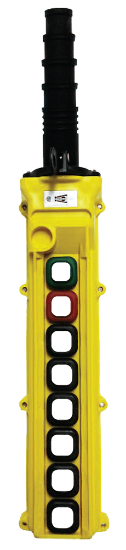

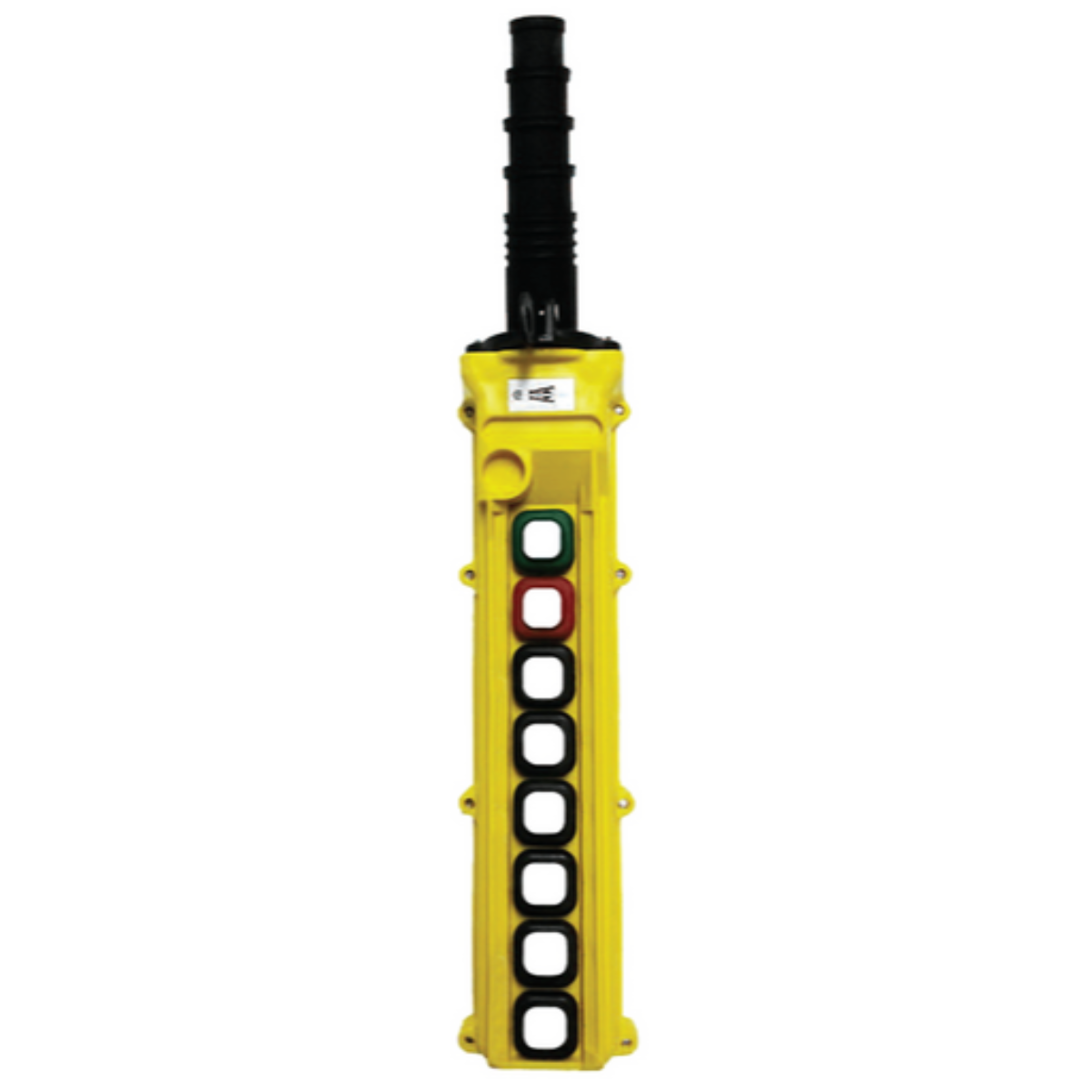

Duct-O-Wire L8-S-2A Pendant Push Button Station
The Duct-O-Wire L8-S-2A from the L Series is a robust and ergonomic pendant push button station designed for controlling industrial machinery with precision and ease. Featuring a three-motion design, this station provides individual buttons for each motion, giving operators seamless control over complex operations.
With its slim profile and shallow 8-button enclosure, the L8-S-2A offers an ideal solution for space-restricted installations such as overhead cranes, hoists, and conveyors. Constructed with durable polypropylene housing and rated for NEMA 1, 3, 4, 4X, and 12 enclosures, it is built to perform in demanding industrial environments—from high heat and humidity to exposure to oils and chemicals.
The L8-S-2A is UL-listed and CSA-approved and includes features like replaceable neoprene boots, easy-to-read legend plates, and a multi-step cord grip to support a wide range of conductor cables. The included strain relief hook and cable clamp set further ensure a secure and flexible installation.
Key Features & Specifications
- Model: L8-S-2A
- Enclosure Type: 8-button, shallow
- Motions: 3-motion control (individual buttons)
- Width: 3.13 in.
- Depth: 2.00 in.
- Length: 17.75 in.
- Cable Range: 0.640 to 0.890 in.
- Approx. Shipping Weight: 0.88 lbs
- Construction: Rugged polypropylene body
- Cord Grip: Multi-step, supports 4 to 24 conductor cable
- Boots: Replaceable neoprene
- Mounting: Slim, ergonomic back profile for easy handling
- Accessories: Compatible with a wide range of accessory switches
- Standards: UL Listed, CSA Approved
- Protection Ratings: NEMA 1, 3, 4, 4X, 12
- Additional: Strain relief hook and cable clamp included
Note: Product images may display optional accessories not included with the standard model. For customization options, consult your distributor or reference the full product catalog.
