Product Overview

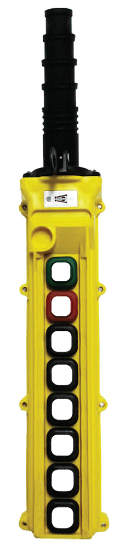

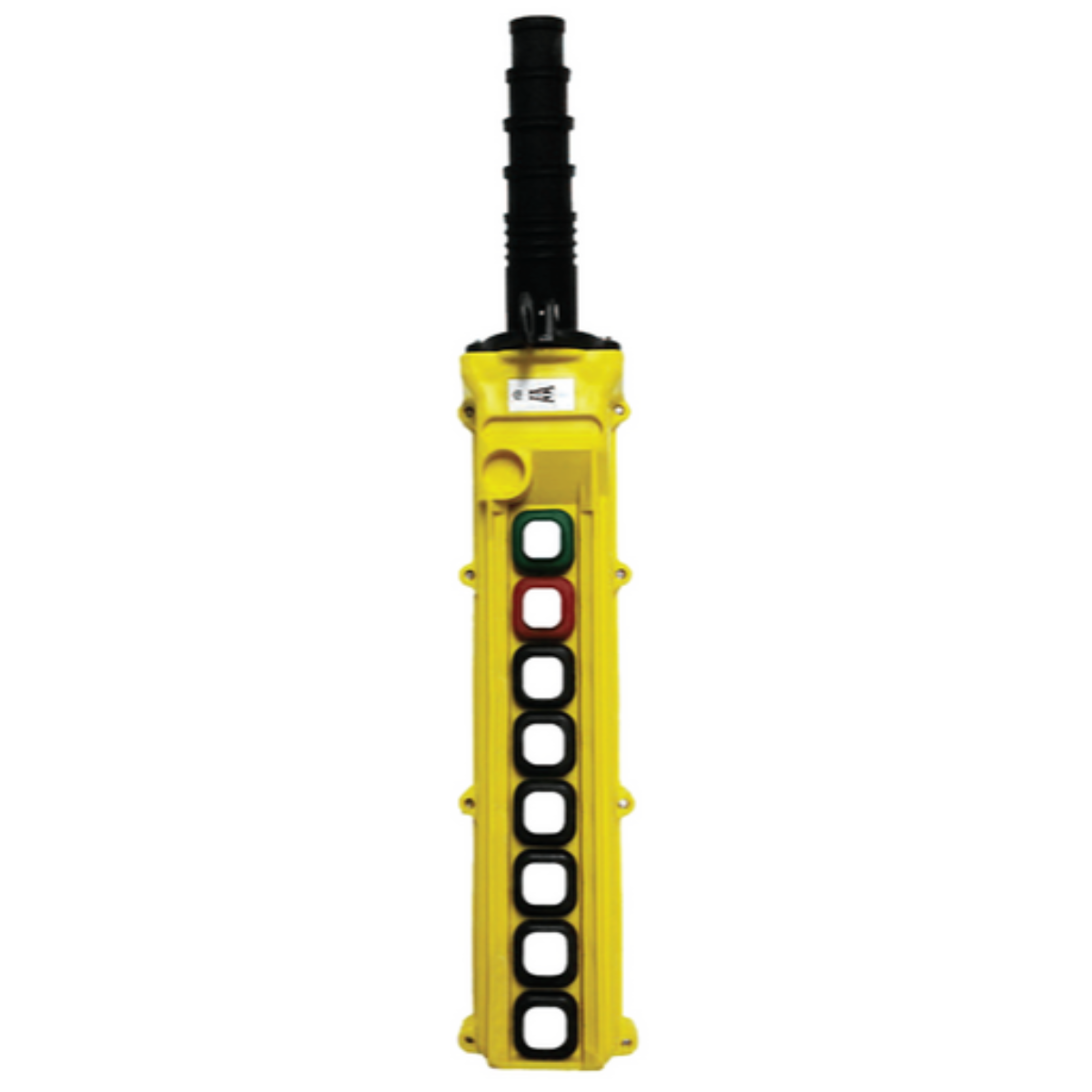

Duct-O-Wire L8-S-1A Pendant Push Button Station
The Duct-O-Wire L8-S-1A is a high-performance pendant push button station from the trusted L Series, engineered to provide reliable control in demanding industrial applications. This shallow 8-button configuration features a three-motion design, enabling precise, independent control of complex machinery functions. With a slim back profile and ergonomic housing, it offers comfort and ease of use for operators across a range of environments.
Crafted from durable polypropylene and rated for NEMA 1, 3, 4, 4X, and 12 enclosures, the L8-S-1A is built to endure harsh conditions such as extreme temperatures, moisture, and chemical exposure. Designed with both safety and convenience in mind, it includes replaceable neoprene boots, easy-to-read legend plates, and a strain relief hook and cable clamp set to ensure secure operation.
Whether used in overhead crane controls, hoist systems, or other industrial equipment, the Duct-O-Wire L8-S-1A provides exceptional reliability, operator-friendly design, and flexible functionality.
Technical Specifications
- Model: L8-S-1A
- Series: L Series Pendant Push Button Station
- Enclosure Type: 8 Button Shallow
- Dimensions:
- Width: 3.13 in.
- Depth: 2.00 in.
- Length: 17.75 in.
- Cable Range: 0.640 to 0.890 in.
- Shipping Weight: Approx. 0.88 lbs
- Material: High-Impact Polypropylene
- Back Profile: Slim for ergonomic handling
- Cord Grip: Multi-step, supports 4 to 24 conductor cable
- Boots: Replaceable Neoprene for switch protection
- Mounting: Strain Relief Hook and Cable Clamp Set included
- Certifications: UL Listed, CSA Approved
- Environmental Ratings: NEMA Types 1, 3, 4, 4X, 12
- Accessories: Compatible with a wide range of accessory switches and components
