Product Overview

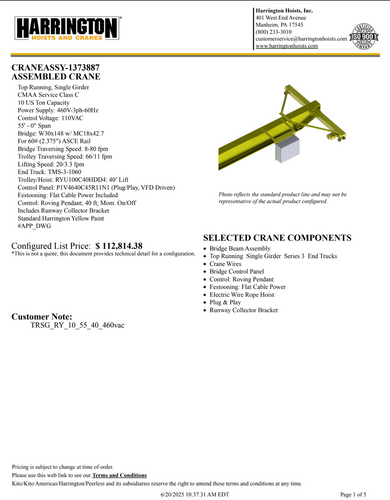

Harrington 10 Ton 55' Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1373887
The Harrington C-1373887 is a top-running single girder overhead crane designed to meet CMAA Class C service requirements. Built for industrial applications, this 10-ton capacity system features a 55-foot span and a 40-foot lift height, providing extended coverage and vertical travel for a wide array of material handling operations.
Equipped with a VFD-driven electric wire rope hoist, dual-speed motion control, and a plug-and-play festoon system, this crane ensures smooth, efficient performance while minimizing installation time and maintenance complexity.
System Overview
Crane Type Top Running, Single Girder
Service Class CMAA Class C
Rated Capacity 10 U.S. Tons
Span 55 ft – 0 in
Lift Height 40 ft
Power Supply 460V / 3 Phase / 60 Hz
Control Voltage 110VAC
Speeds & Motion Control
Bridge Traverse 8–80 fpm (VFD-controlled)
Trolley Traverse 66 / 11 fpm (Dual Speed, VFD)
Hoisting Speed 20 / 3.3 fpm (Dual Speed, VFD)
No-Load Hoist Speed 30 fpm
Major Components
Bridge Beam Assembly
- Beam: W30x148 with MC18x42.7 Channel Cap
- Grade: ASTM A572 Grade 50
- Span: 55 ft
- Weight: 10,315.66 lbs
- Painted: Standard Harrington Yellow
- Includes standard beam notching for festoon compatibility
End Trucks
- Model: TMS3-1060
- Capacity: 10 Ton
- Rail Compatibility: 60# ASCE (2.375")
- Wheel Diameter: 9.84 in
- Wheel Hardness: 160–220 BHN
- Motor Output: 1 HP each
- Amperage: 1.8 A each
- Traverse Speed: 80 fpm
- Net Weight: 564.5 lbs each
Electric Wire Rope Hoist
- Model: RYU100C40HDD4
- Lift: 40 ft
- Voltage: 460V / 3Ph / 50–60Hz
- Hoisting Speed: 20 / 3.3 fpm (VFD Adjustable)
- No-Load Speed: 30 fpm
- Trolley Speed: 66 / 11 fpm (VFD Adjustable)
- Flange Range: 5.90 – 13.78 in
- Net Weight: 2,397 lbs
- Max. Amperage: 27.4 A
- UL Listed to UL1340 & CSA 22.2 No. 33
- Includes Crane Connection Kit
Bridge Control Panel
- Model: P1V4640C45R11N1
- Voltage: 460V / 3Ph / 60Hz
- Fused for 32.4 A total draw
- Main Disconnect Fuse: 45 A
- Plug-and-Play Installation
- Variable Frequency Drive included
Pendant Control
- Type: NEMA 4, L-Series
- Buttons: 8 (Dual-Speed: Hoist, Trolley, Bridge)
- Length: 40 ft (beam bottom to pendant)
- Plug: 16P Quick-Connect
- Control Type: Momentary On/Off
Flat Cable Festoon System
- Power and pendant festoon on shared track
- Plug-and-Play configuration
- System Voltage: 460V / 3Ph / 60Hz
- Amperage: 26.1 A
- Designed for W30x148 beam with MC18 cap
Crane Wiring
- Amperage: 27.9 A
- NEMA 4 Liquidtight Conduit
- Includes wiring for both end-truck motors (1.8 A each)
- 55 ft crane span
- Plug-and-Play Ready
Regulatory Compliance
The C-1373887 system complies with the following safety and performance standards:
- OSHA 1910.179 – Overhead and Gantry Cranes
- ASME B30.2 / B30.16 / B30.17 – Crane and Hoist Standards
- ASME HST-4 – Electric Wire Rope Hoist Performance
- CMAA 74 – Crane Design Specifications
- NFPA 70 – National Electrical Code
- UL & CSA Certifications – Applicable electrical and mechanical components
Additional Notes:
- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
