Harrington 10 Ton 40' Span/40' Lift Top Running Single Girder Overhead Crane Assembly

Write a Review
$82,384.99
SKU: C-1373827
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Harrington 10 Ton 40' Span/40' Lift Top Running Single Girder Overhead Crane Assembly

Harrington 10 Ton 40' Span/40' Lift Top Running Single Girder Overhead Crane Assembly

$82,384.99

Harrington 10 Ton 40' Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1373827

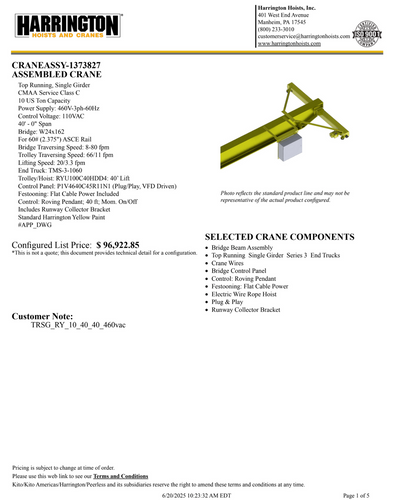

The Harrington C-1373827 is a high-performance, top-running single-girder overhead crane system designed to meet the demands of medium-duty material handling applications. Rated for up to 10-tons and classified as CMAA Class C. This crane offers premium performance in industrial environments such as fabrication shops, warehouses, manufacturing plants, and steel facilities.

With a 40-foot span and a 40-foot lift height, this system features a heavy-duty W24x162 bridge beam, a dual-speed electric wire rope hoist, and VFD-controlled drive components, ensuring smooth and precise material handling. The crane includes a complete flat cable festoon system, a roving pendant control, and a plug-and-play bridge control panel, ensuring simplified installation and minimal setup time on-site.

Built to rigorous industry standards, including OSHA, ASME, CMAA, and NFPA, this Harrington system ensures safety, dependability, and long-term value.

General Crane Specifications

Crane Type Top Running, Single Girder

Capacity 10 U.S. Tons

CMAA Service Class Class C – Moderate Duty

Span 40 ft – 0 in

Lift Height 40 ft

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110 VAC

Bridge Beam W24x162, ASTM A572 G50

Rail Size Compatibility 60# ASCE (2.375")

Paint Finish Standard Harrington Yellow

Motion Control Speeds (Adjustable with VFD)

Bridge Traversing 8–80 feet per minute (VFD)

Trolley Traversing 66 / 11 fpm (Dual-Speed)

Hoisting 20 / 3.3 fpm (Dual-Speed)

No Load Hoisting Up to 30 fpm

System Components Overview

Bridge Beam Assembly

  • Type: Single Girder, W24x162 with Notched Beam
  • Span: 40 ft
  • Capacity: 10 U.S. Tons
  • Grade: ASTM A572 Grade 50
  • Paint: Harrington Yellow
  • Weight: 6,748.11 lbs
  • Designed For: RY1U Trolley/Hoist & TMS3-1060 End Trucks
  • Note: Beam type and availability may affect lead time.

Motorized End Trucks

  • Model: TMS3-1060
  • Capacity: 10 Tons
  • Power Supply: 460V / 3Ph / 60Hz
  • Wheel Diameter: 9.84 in
  • Wheel Hardness: 160–220 BHN
  • Motor Output: 1.0 HP / 1.8 Amps each
  • Rail Size: 60# ASCE
  • Traverse Speed: 80 fpm
  • Weight: 564.5 lbs per truck

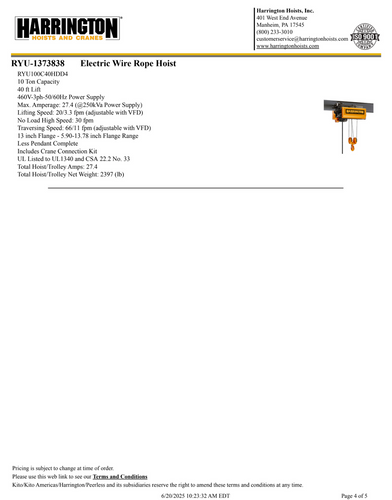

Electric Wire Rope Hoist

  • Model: RYU100C40HDD4
  • Capacity: 10 Tons
  • Lift Height: 40 ft
  • Voltage: 460V / 3Ph / 50–60Hz
  • Amps: 27.4 (max)
  • Lift Speed: 20 / 3.3 fpm (adjustable)
  • No Load Speed: 30 fpm
  • Trolley Speed: 66 / 11 fpm (adjustable)
  • Flange Range: 5.90–13.78 in (13 in std)
  • Certifications: UL1340, CSA 22.2 No. 33
  • Weight: 2,397 lbs
  • Includes: Crane connection kit (less pendant)

Bridge Control Panel

  • Model: P1V4640C45R11N1
  • Voltage: 460V / 3Ph / 60Hz
  • Fused Load Capacity: 32.4 Amps
  • Mainline Fuse: 45 Amps
  • Type: Variable Frequency Drive (VFD)
  • Design: Plug-and-play

Pendant Station

  • Model: L-Series, NEMA 4 Rated
  • Controls: 8-Button (Momentary On/Off)
  • Drop Length: 40 ft
  • Motion: Dual-Speed for Bridge, Trolley, and Hoist
  • Connector: 16P Plug
  • Mounting: Roving Flat Cable Station

Flat Cable Festooning

  • System: Flat Cable Power & Pendant, Plug-and-Play
  • Voltage: 460V / 3Ph / 60Hz
  • Amperage: 26.1 A
  • Span: 40 ft
  • Compatible With: RY1U 7.5–10 Ton Trolley/Hoist
  • Bridge Compatibility: W24x162

Crane Wiring Package

  • Configuration: LiquidTight Plug-and-Play
  • System Amps: 27.9
  • Enclosure Rating: NEMA 4
  • Motors: (2) End Truck Motors – 1.8 A each
  • Span: 40 ft

Regulatory Compliance

Manufactured in accordance with the following standards and regulations:

  • OSHA 1910.179 – Overhead and Gantry Cranes
  • ASME B30.2, B30.16, B30.17 – Cranes, Hoists, and Monorails
  • ASME HST-4 – Overhead Electric Wire Rope Hoists
  • CMAA 74 – Single Girder EOT Cranes
  • NFPA 70 – National Electrical Code

Additional Notes:

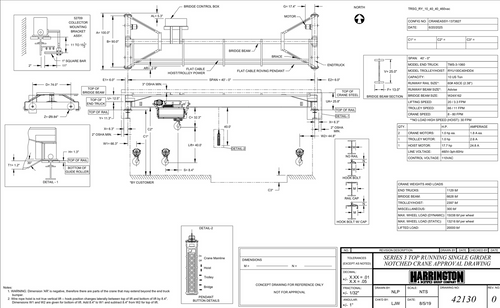

  • Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
  • Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
  • For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
  • Cranes shipped fully assembled also require a dedicated carrier.
  • Additional shipping costs associated with special dedicated handling are the customer's responsibility.
