Product Overview
Harrington 10 Ton 45' Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1373861
The Harrington C-1373861 is a high-performance, top-running single-girder crane engineered for CMAA Class C applications, offering reliable and efficient handling of heavy loads up to 10 U.S. tons. With a 45-foot span and 40-foot lift height, it is built for precise and durable operation across a wide range of industrial environments.
This turnkey crane solution integrates a VFD-driven electric wire rope hoist, plug-and-play wiring, and dual-speed pendant control for optimized lifting, traversing, and travel motions. Compliant with key OSHA, ASME, and CMAA standards, it provides both safety and performance with minimal installation time required.
Key Specifications
Crane Type Top Running, Single Girder
Capacity 10 U.S. Tons
Service Class CMAA Class C (Moderate Duty)
Span 45 ft – 0 in
Lift Height 40 ft
Power Supply 460V / 3 Phase / 60 Hz
Control Voltage 110 VAC
Bridge Beam W24x162, ASTM A572 Grade 50
Rail Type 60# ASCE (2.375")
Paint Harrington Standard Yellow
Motion Speeds (VFD Adjustable)
Bridge Travel 8 – 80 fpm
Trolley Travel 66 / 11 fpm (Dual Speed)
Hoist Lift 20 / 3.3 fpm (Dual Speed)
No-Load Hoisting Speed Up to 30 fpm
Major Components
Bridge Beam Assembly
- Single Girder, Notched W24x162 Beam
- 45 ft span, 10-ton rated
- Grade: ASTM A572 G50
- Beam Weight: 7,558.11 lbs
- Pre-fabricated for flat cable festoon and RY1U hoist
End Trucks
- Model: TMS3-1060
- Capacity: 10 Ton
- Wheel Diameter: 9.84 in
- Wheel Hardness: 160–220 BHN
- Motor Power: 1 HP each / 1.8 A
- Traverse Speed: 80 fpm
- Includes motor plug kit
- Net Weight: 564.5 lbs per truck
Electric Wire Rope Hoist
- Model: RYU100C40HDD4
- Lift: 40 ft
- Power: 460V / 3Ph / 50–60Hz
- Hoist Speed: 20 / 3.3 fpm (dual-speed, VFD-adjustable)
- Trolley Speed: 66 / 11 fpm
- No-Load Speed: Up to 30 fpm
- Flange Range: 5.90 – 13.78 in
- Amp Draw: 27.4 A
- UL and CSA Certified
- Net Weight: 2,397 lbs

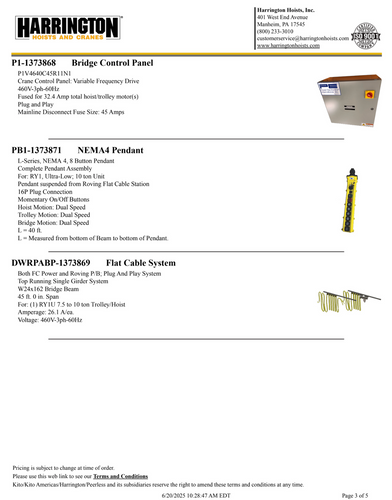

Bridge Control Panel
- Model: P1V4640C45R11N1
- Plug-and-play design
- VFD control
- Rated: 460V / 3Ph / 60Hz
- Hoist/Trolley Fuse Rating: 32.4 A
- Mainline Fuse: 45 A
Roving Pendant Control
- L-Series, 8-button NEMA 4 Enclosure
- 40 ft Pendant Drop
- 16P Plug Connection
- Dual-speed operation for Hoist, Trolley, and Bridge
Festooning
- Flat cable festoon with plug-and-play power and pendant
- 45 ft span coverage
- Rated: 460V / 3Ph / 60Hz
- Load: 26.1 A
Crane Wiring
- Complete crane wiring system
- NEMA 4 rated
- 27.9 A system draw
- Dual-end truck motors at 1.8 A each
- Pre-wired with liquid-tight conduit
Compliance & Safety Standards
Manufactured in compliance with:
- OSHA 1910.179 – Overhead & Gantry Cranes
- ASME B30.2, B30.16, B30.17 – Crane & Hoist Safety
- ASME HST-4 – Performance for Electric Wire Rope Hoists
- CMAA Specification 74 – EOT Cranes with Under Running Hoist
- NFPA 70 – National Electrical Code
Additional Notes:

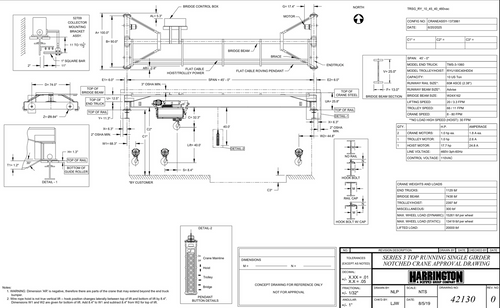

- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
