Product Overview

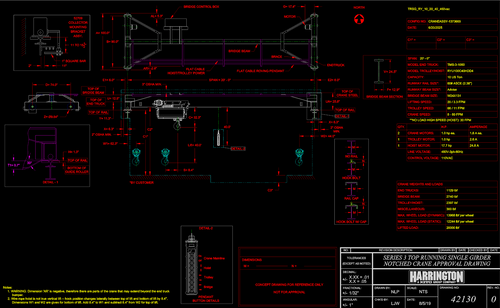

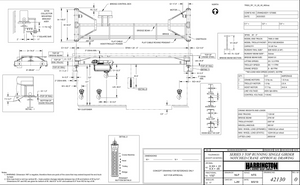

Harrington 10 Ton 20' Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1373665
The Harrington C-1373665 is a robust, pre-engineered 10-ton single girder crane system designed for efficient material handling in industrial environments. Built for CMAA Class C service, this crane features dual-speed VFD controls, plug-and-play wiring, and a compact design suitable for moderate to heavy-duty lifting applications.
Equipped with a 40-foot lift electric wire rope hoist and a 20-foot span, this assembled system offers precision, safety, and longevity, providing reliable performance in overhead lifting operations.
General Specifications
Crane Type Top Running, Single Girder
Service Class CMAA Class C
Rated Capacity 10 U.S. Tons
Span 20 ft – 0 in
Lift Height 40 ft
Power Supply 460V / 3-Phase / 60Hz
Control Voltage 110VAC
Rail Compatibility 60# ASCE (2.375") Rail
Paint Finish Standard Harrington Yellow
Performance Data
MotionSpeed (Dual Speed / VFD Adjustable)
Bridge Travel 8–80 fpm
Trolley Travel 66 / 11 fpm
Hoisting Speed 20 / 3.3 fpm
No Load Hoisting Speed 30 fpm
Key Components & Features
Bridge Beam Assembly – W24x131
- Material: ASTM A572 Grade 50
- Beam Weight: 2,859.70 lbs
- Notched Beam Design with Standard Harrington Yellow Paint
Motorized End Trucks
- Capacity: 10 Ton
- Span: 20 ft
- Wheel Diameter: 9.84 in
- Motor Output: 1.0 HP, 1.8 Amps Each
- Rail: 60# ASCE Rail
- Speed: 80 fpm
- Net Weight: 564.5 lbs each
Wire Rope Hoist
- Capacity: 10 Ton
- Lift: 40 ft
- VFD Adjustable Lifting & Trolley Speeds
- Voltage: 460V / 3Ph / 50–60Hz
- Hoist/Trolley Max Amps: 27.4
- Flange Range: 5.90–13.78 in
- Net Weight: 2,397 lbs
- UL & CSA Certified
- Includes Crane Connection Kit
Bridge Control Panel
- Type: VFD-Driven, Plug-and-Play
- Voltage: 460V / 3Ph / 60Hz
- Hoist/Trolley Fuse: 32.4 A
- Mainline Disconnect Fuse: 45 A
Pendant Station
- L-Series, NEMA 4, 8 Button
- Roving Pendant – 40 ft Drop
- Motion Control: Dual Speed (Bridge, Trolley, Hoist)
- 16P Plug Connection
Festooning System
- Flat Cable for Power and Pendant
- Amperage: 26.1 A
- Voltage: 460V / 3Ph / 60Hz
- Plug-and-Play
Crane Wiring
- System Load: 27.9 Amps
- End Truck Motors: 1.8 A each
- Liquid tight Conduit
- Enclosure: NEMA 4
Compliance & Standards
Manufactured to meet the latest industry and regulatory standards:
- OSHA 29 CFR 1910.179 – Overhead and Gantry Cranes
- ASME B30.2 – Overhead and Gantry Cranes
- ASME B30.16 – Overhead Hoists
- ASME B30.17 – Cranes & Monorails
- ASME HST-4 – Wire Rope Hoists
- CMAA 74 – Top Running Single Girder Cranes
- NFPA 70 – National Electrical Code
Additional Notes:
- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
