Harrington 10 Ton 40' Span/30' Lift Top Running Single Girder Overhead Crane Assembly

Product Overview

Harrington 10 Ton 40' Span/30' Lift Top Running Single Girder Overhead Crane Assembly – C-1373570

The Harrington C-1373570 is a heavy-duty, overhead crane system tailored for medium-duty industrial applications. This top-running, single girder crane is rated for 10 U.S. tons and engineered to CMAA Service Class C specifications, making it ideal for a wide range of manufacturing, processing, and material handling operations.

This crane features a 40-foot span and integrates a robust W24x162 bridge beam designed to handle higher-moment loads and deliver optimal structural integrity over longer distances. It is paired with a 30-foot lift, a dual-speed electric wire rope hoist, and VFD-controlled bridge motion, allowing for smooth and precise load control with enhanced safety and energy efficiency.

The system is complete with plug-and-play festooning, a roving pendant station, and a pre-wired control panel, providing easy operation, low maintenance, and reduced installation time. With a fully assembled delivery option, this crane is designed to minimize downtime and streamline integration into your workspace.

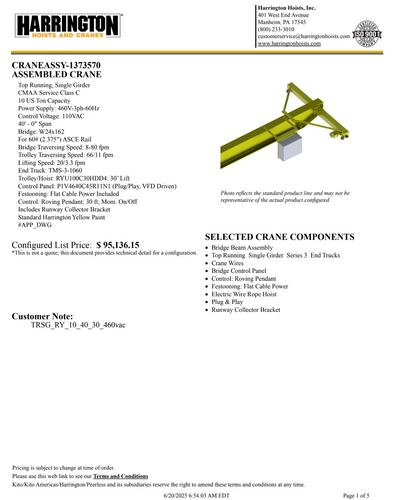

General Specifications

Crane Type Top Running, Single Girder

Capacity 10 U.S. Tons

CMAA Service Class Class C – Moderate Duty

Span 40 ft – 0 in

Lift Height 30 ft

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110 VAC

Bridge Beam W24x162, ASTM A572 G50

Rail Compatibility 60# ASCE Rail (2.375" width)

Paint Finish Standard Harrington Yellow

Motion & Speed Control (VFD Adjustable)

Bridge Traversing 8–80 feet per minute (VFD)

Trolley Traversing 66 / 11 fpm (dual-speed)

Hoisting Speed 20 / 3.3 fpm (dual-speed)

No-Load Hoisting Up to 30 fpm

System Components Overview

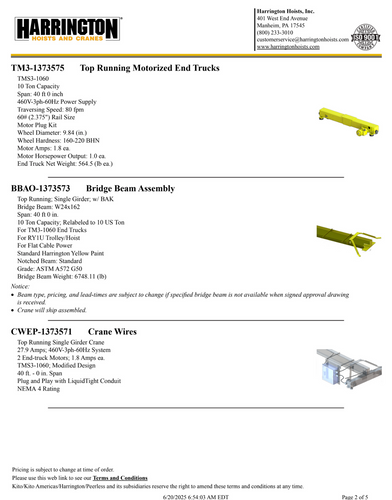

Bridge Beam Assembly

• Beam Type: W24x162 Single Girder with Notched Beam
• Span: 40 ft
• Material: ASTM A572 Grade 50
• Weight: 6,748.11 lbs
• Application: Designed for TMS3-1060 End Trucks and RYU Hoist Integration
• Finish: Harrington Yellow
• Notes: May be subject to lead-time adjustments based on beam availability

Motorized End Trucks

• Model: TMS3-1060
• Capacity: 10 Tons
• Rail Size: 60# ASCE Rail
• Wheel Diameter: 9.84 in
• Motor Power: 1.0 HP / 1.8 Amps each
• Hardness: 160–220 BHN
• Traverse Speed: 80 fpm
• Weight: 564.5 lbs per truck
• Voltage: 460V / 3Ph / 60Hz

Electric Wire Rope Hoist

• Model: RYU100C30HDD4
• Capacity: 10 Tons
• Lift Height: 30 ft
• Power Supply: 460V / 3Ph / 50–60Hz
• Amps: 27.4
• Lift Speed: 20 / 3.3 fpm (VFD adjustable)
• No Load Speed: 30 fpm
• Trolley Speed: 66 / 11 fpm
• Flange Range: 5.90–13.78 in (13 in flange std)
• Certifications: UL1340, CSA 22.2 No. 33
• Weight: 2,227 lbs
• Includes: Crane connection kit (less pendant)

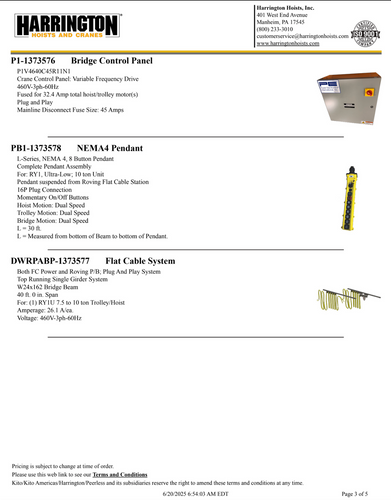

Bridge Control Panel

• Model: P1V4640C45R11N1
• Voltage: 460V / 3Ph / 60Hz
• Main Disconnect Fuse Size: 45 Amps
• Fused Load: 32.4 Amps for hoist/trolley
• Type: VFD-Driven, Plug-and-Play Configuration

Pendant Station

• Series: L-Series
• Type: NEMA 4 Enclosed, 8-Button
• Operation: Momentary On/Off – Dual Speed for Hoist, Trolley, Bridge
• Drop Length: 30 ft (beam to the bottom of pendant)
• Mounting: Suspended from flat cable station
• Connector: 16P Plug

Festoon Cable System

• System Type: Flat Cable with Plug-and-Play Interface
• Voltage: 460V / 3Ph / 60Hz
• Amperage: 26.1 A
• Bridge Compatibility: W24x162
• Span: 40 ft
• Designed For: RY1U 7.5–10 Ton Hoists

Crane Wiring

• Design: Plug-and-Play with LiquidTight Conduit
• System Load: 27.9 Amps
• Enclosure Rating: NEMA 4
• Span: 40 ft
• Modifications: Configured for TMS3-1060 end trucks

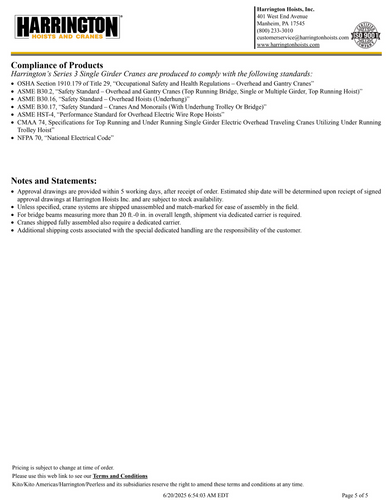

Compliance and Standards

This system is built to align with all applicable U.S. safety and performance codes:

• OSHA 1910.179 – Overhead and Gantry Cranes
• ASME B30.2, B30.16, B30.17 – Cranes, Hoists, Monorails
• ASME HST-4 – Electric Wire Rope Hoists
• CMAA 74 – Top Running & Under Running Crane Systems
• NFPA 70 – National Electrical Code

Additional Notes:

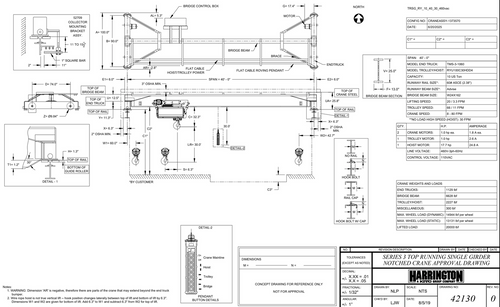

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
