Product Overview
Harrington 10 Ton 30' Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1373688
The Harrington C-1373688 overhead crane is a high-performance lifting solution designed for demanding industrial environments. Featuring a 10-ton capacity, 30-foot span, and 40-foot lift, this crane integrates top-tier components, including VFD-controlled motion, robust end trucks, and a wire rope hoist. Built to comply with OSHA and ASME standards, this system ensures reliability, smooth operation, and simplified installation through its plug-and-play configuration.
General Specifications
Crane Type Top Running, Single Girder
Capacity 10 U.S. Tons
Service Classification CMAA Class C
Span 30 ft – 0 in
Lift Height 40 ft
Power Supply 460V / 3-Phase / 60Hz
Control Voltage 110 VAC
Rail Type 60# ASCE (2.375")
Paint Finish Harrington Standard Yellow
Performance & Motion (Dual Speed / VFD Controlled)
Bridge Travel 8–80 fpm
Trolley Travel 66 / 11 fpm
Hoisting Speed 20 / 3.3 fpm
No Load Hoist Speed 30 fpm
Crane Components
Bridge Beam Assembly
- Beam Size: W24x146
- Span: 30 ft
- Capacity: 10 U.S. Tons
- Grade: ASTM A572 Grade 50
- Beam Weight: 4,633.45 lbs
- Includes Notching for Flat Cable
- For TM3-1060 End Trucks and RY1U Trolley/Hoist
Motorized End Trucks
- Model: TMS3-1060
- Capacity: 10 Ton
- Traversing Speed: 80 fpm
- Motor Output: 1.0 HP / 1.8 Amps each
- Wheel Diameter: 9.84 in
- Wheel Hardness: 160–220 BHN
- Net Weight: 564.5 lbs each
- Rail Compatibility: 60# ASCE (2.375")
Electric Wire Rope Hoist
- Model: RYU100C40HDD4
- Capacity: 10 Ton
- Lift: 40 ft
- Lifting Speed: 20 / 3.3 fpm (VFD adjustable)
- No Load Speed: 30 fpm
- Trolley Speed: 66 / 11 fpm (VFD adjustable)
- Voltage: 460V / 3Ph / 50–60Hz
- Flange Range: 5.90–13.78 in
- Max Amperage: 27.4
- Total Weight: 2,397 lbs
- Certifications: UL 1340, CSA 22.2 No. 33
- Includes Connection Kit; Pendant Not Included
Bridge Control Panel
- Model: P1V4640C45R11N1
- Type: VFD-Controlled
- Plug-and-Play Design
- Input: 460V / 3Ph / 60Hz
- Fuse Size: 45 Amps
- Rated for Total Hoist/Trolley Load: 32.4 Amps
Pendant Control
- Type: NEMA 4, L-Series
- Configuration: 8-Button, Momentary
- Pendant Drop: 40 ft
- Dual Speed Control: Hoist, Trolley, and Bridge
- 16P Plug Connection
- Mounted on Roving Flat Cable Track
Festoon System
- Type: Flat Cable, Plug-and-Play
- Designed for 30 ft Span / W24x146 Beam
- Voltage: 460V / 3Ph / 60Hz
- Amperage: 26.1 A
Crane Wiring
- Amperage: 27.9 A
- Protection: NEMA 4
- Construction: LiquidTight Conduit
- Plug-and-Play Ready
- End Truck Motors: 1.8 A each
Compliance Standards
This crane complies with applicable safety and electrical standards, including:
- OSHA 1910.179 – Overhead and Gantry Cranes
- ASME B30.2 / B30.16 / B30.17 – Cranes, Hoists, and Monorails
- ASME HST-4 – Electric Wire Rope Hoists
- CMAA 74 – Single Girder EOT Cranes
- NFPA 70 – National Electrical Code
Additional Notes:

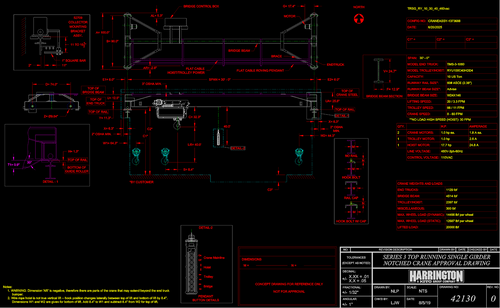

- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
