Harrington 10 Ton 45' Span/30' Lift Top Running Single Girder Overhead Crane Assembly

Product Overview

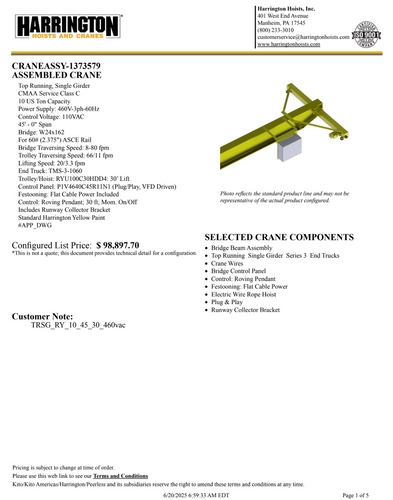

Harrington 10 Ton 45' Span/30' Lift Top Running Single Girder Overhead Crane Assembly – C-1373579

The Harrington C-1373579 is a top-running single-girder overhead crane system designed to deliver superior lifting performance in demanding Class C service applications. Rated at 10 U.S. tons, this crane features a robust 45-foot span and a 30-foot lift height, combining rugged construction with advanced controls and safety compliance for streamlined material handling.

Powered by a VFD-controlled hoist and bridge/trolley motion system, this unit features plug-and-play wiring, a dual-speed electric wire rope hoist, and a flat cable festooning system for efficient power and control distribution. With adjustable speed operation, a roving pendant station, and full compliance with OSHA, ASME, and CMAA specifications, it provides safe, consistent operation and simple field integration.

General Specifications

Crane Type Top Running, Single Girder

Capacity 10 U.S. Tons

Service Class CMAA Class C – Moderate Duty

Span 45 ft – 0 in

Lift Height 30 ft

Power Supply 460V / 3 Phase / 60 Hz

Control Voltage 110 VAC

Bridge Beam W24x162, ASTM A572 Grade 50

Rail Compatibility 60# ASCE Rail (2.375")

Finish Harrington Standard Yellow Paint

Motion Speeds (Adjustable with VFD)

Bridge Travel 8–80 feet per minute

Trolley Travel 66 / 11 feet per minute (Dual-Speed)

Hoist Lift 20 / 3.3 feet per minute (Dual-Speed)

No Load Lift Up to 30 fpm

Component Breakdown

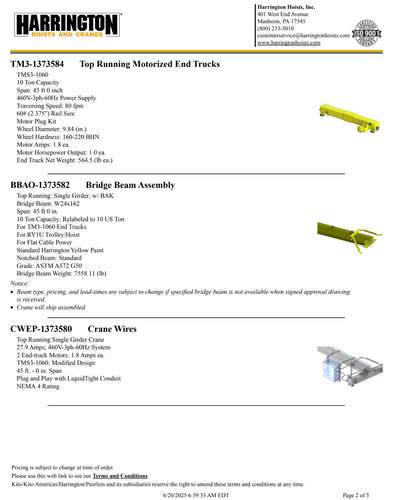

Bridge Beam Assembly

• Type: Single Girder, Notched Beam
• Span: 45 ft
• Material: ASTM A572 G50, W24x162
• Weight: 7,558.11 lbs
• Compatibility: RY1U Hoist, TM3-1060 End Trucks
• Includes: BAK brackets, Flat Cable compatibility

Motorized End Trucks

• Model: TMS3-1060
• Capacity: 10 Tons
• Wheel Diameter: 9.84 in
• Wheel Hardness: 160–220 BHN
• Motors: (2) x 1.0 HP / 1.8 A
• Traverse Speed: 80 fpm
• Rail Size: 60# ASCE
• Weight: 564.5 lbs per unit

Electric Wire Rope Hoist

• Model: RYU100C30HDD4
• Capacity: 10 Tons
• Lift Height: 30 ft
• Power: 460V / 3Ph / 50–60Hz
• Hoisting Speed: 20 / 3.3 fpm (VFD Adjustable)
• No Load Speed: Up to 30 fpm
• Trolley Speed: 66 / 11 fpm
• Flange Range: 5.90 – 13.78 in
• Certifications: UL1340, CSA 22.2 No. 33
• Weight: 2,227 lbs
• Amperage: 27.4 A

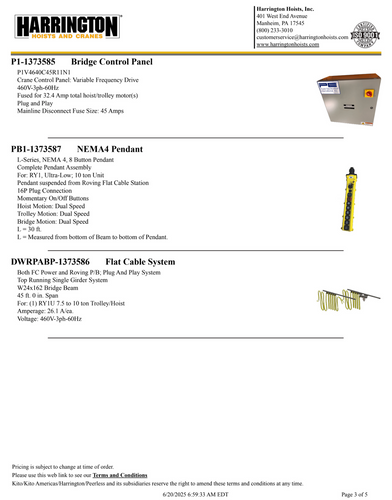

Bridge Control Panel

• Model: P1V4640C45R11N1
• Type: VFD Driven, Plug-and-Play
• Voltage: 460V / 3Ph / 60Hz
• Motor Load Fused: 32.4 A
• Mainline Fuse Size: 45 A

Pendant Control Station

• Model: L-Series NEMA 4
• Type: 8-Button Pendant, Dual-Speed Operation
• Drop Length: 30 ft (Beam to Pendant)
• Connection: 16P Plug
• Control Functions:
  • Hoist Up/Down – Dual Speed
  • Trolley Left/Right – Dual Speed
  • Bridge Forward/Reverse – Dual Speed

Flat Cable Festooning System

• Voltage: 460V / 3Ph / 60Hz
• Amperage: 26.1 A
• Span Coverage: 45 ft
• System: Includes power and pendant festoon; plug-and-play design

Wiring System

• Configuration: LiquidTight Conduit with Plug-and-Play
• System Amps: 27.9 A
• Motors: Dual End Truck Motors at 1.8 A each
• Enclosure Rating: NEMA 4
• Span: 45 ft

Compliance and Standards

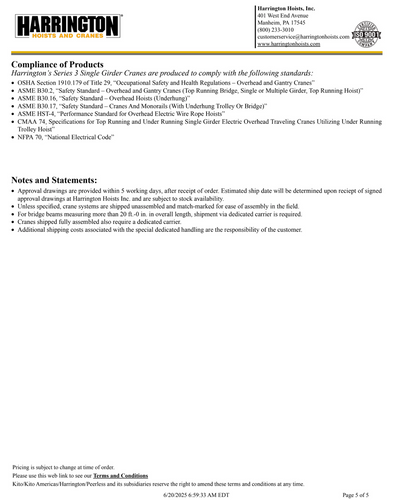

This crane system is manufactured to meet or exceed the following standards:

• OSHA 1910.179 – Overhead and Gantry Cranes
• ASME B30.2 – Overhead and Gantry Cranes
• ASME B30.16 – Overhead Hoists
• ASME B30.17 – Cranes and Monorails
• ASME HST-4 – Electric Wire Rope Hoists
• CMAA 74 – Single Girder Electric Overhead Traveling Cranes
• NFPA 70 – National Electrical Code

Additional Notes:

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
