Harrington 7.5 Ton 40' Span/40' Lift Top Running Single Girder Overhead Crane Assembly

Product Overview

Harrington 7.5 Ton 40' Span/40' Lift Top Running Single Girder Overhead Crane Assembly – C-1372763

The C-1372763 is a 7.5-ton top-running single girder crane system engineered by Harrington Hoists for CMAA Class C service. Built for reliable performance in demanding industrial environments, this system integrates a heavy-duty bridge, precision-engineered end trucks, a robust wire rope hoist, and variable-frequency controls—all designed for long-term operation and simplified maintenance.

This crane features a 40-foot span, plug-and-play wiring, and a 40-foot lift height, making it ideal for general-purpose lifting in manufacturing, service bays, or fabrication shops. The system is equipped with a dual-speed electric hoist and full VFD-controlled motion, paired with a flat cable festoon system and roving pendant station for optimal operator access and control.

General Specifications

Crane Type Top Running, Single Girder

Service Class CMAA Class C

Capacity 7.5 U.S. Tons

Span 40 ft – 0 in

Lift Height 40 ft

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Bridge Beam W24x131

Rail Compatibility 60# ASCE Rail (2.375" head width)

Configured List Price $91,775.30 (Subject to change)

Paint Finish Standard Harrington Yellow

Performance Overview

Bridge Travel 8–80 fpm

Trolley Travel 66 / 11 fpm

Lifting Speed 20 / 3.3 fpm

No Load Lift 30 fpm

Included Components

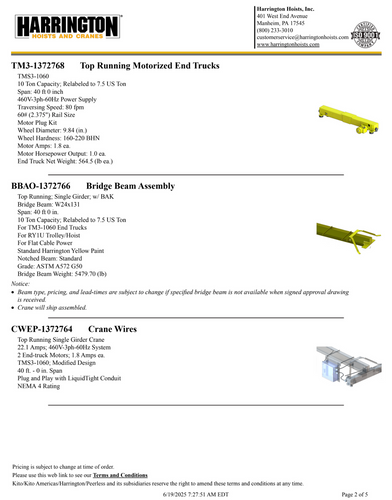

• W24x131 Single Girder Bridge Beam Assembly
• TMS3-1060 Motorized End Trucks
• RYU075C40HDD4 Electric Wire Rope Hoist
• VFD-Controlled Bridge Control Panel (Plug & Play)
• 8-Button Roving Pendant Station (40 ft drop)
• Flat Cable Festoon System (Power & Pendant)
• Pre-assembled Crane Wiring with Liquidtight Conduit
• Runway Collector Bracket

Component Specifications

Bridge Beam

• Size: W24x131
• Material: ASTM A572 Grade 50
• Capacity: 10 Ton (Relabeled to 7.5 Ton)
• Span: 40 ft
• Notched Beam Configuration
• Weight: 5,479.70 lbs
• Standard Yellow Paint Finish

End Trucks

• Model: TMS3-1060
• Rated Capacity: 10 Ton (Relabeled)
• Wheel Diameter: 9.84 in
• Wheel Hardness: 160–220 BHN
• Traversing Speed: 80 fpm
• Motor Output: 1.0 HP / 1.8 A per motor
• Designed for 60# ASCE rail
• Net Weight: 564.5 lbs each

Electric Wire Rope Hoist

• Model: RYU075C40HDD4
• Capacity: 7.5 Ton
• Lift Height: 40 ft
• Voltage: 460V / 3Ph / 50–60Hz
• Hoist Speed: 20 / 3.3 fpm (adjustable)
• No Load Speed: 30 fpm
• Trolley Speed: 66 / 11 fpm (adjustable)
• Flange Range: 5.90–13.78 in
• Total Amperage: 21.6 A
• Weight: 2,397 lbs
• Certifications: UL1340, CSA 22.2 No. 33

Bridge Control Panel

• Model: P1V4640C40R11N1
• VFD-Driven Control Panel
• Power Input: 460V / 3Ph / 60Hz
• Hoist/Trolley Fuse Rating: 28.4 A
• Main Disconnect Fuse: 40 A
• Plug-and-Play Connectivity

Pendant Station

• NEMA 4 Enclosure – L-Series
• 8-Button Pendant with Momentary On/Off
• Motion Controls: Dual Speed (Hoist, Trolley, Bridge)
• Drop Length: 40 ft
• 16P Plug Connection
• Mounted to Roving Flat Cable Trolley

Festoon System

• Flat Cable for Power & Pendant
• Plug-and-Play Design
• Compatible with W24x131 Beam
• Amperage: 20.3 A
• Voltage: 460V / 3Ph / 60Hz
• Designed for Single Girder Top Running System

Wiring

• Crane Wiring Assembly
• Amperage: 22.1 A System Load
• Includes Liquidtight Conduit
• NEMA 4 Rated
• Plug and Play for Easy Setup
• Customized for 40 ft Span and TMS3-1060 Trucks

Standards and Compliance

The system meets or exceeds the following regulatory and performance standards:

• OSHA 1910.179 – Overhead and Gantry Cranes
• ASME B30.2 / B30.16 / B30.17 – Crane & Hoist Safety Standards
• ASME HST-4 – Overhead Electric Wire Rope Hoists
• CMAA 74 – Specification for Single Girder EOT Cranes
• NFPA 70 – National Electrical Code

Additional Notes:

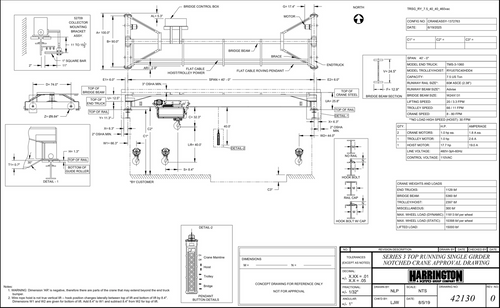

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
