Harrington 10 Ton 55' Span/30' Lift Top Running Single Girder Overhead Crane Assembly

Write a Review
$94,373.99
SKU: C-1373597
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Harrington 10 Ton 55' Span/30' Lift Top Running Single Girder Overhead Crane Assembly

Harrington 10 Ton 55' Span/30' Lift Top Running Single Girder Overhead Crane Assembly

$94,373.99

Harrington 10 Ton 55' Span/30' Lift Top Running Single Girder Overhead Crane Assembly – C-1373597

The Harrington C-1373597 is a fully assembled, top-running, single-girder overhead crane engineered for demanding industrial lifting applications. With a 10-ton capacity, an extended 55-foot span, and a 30-foot lift, this crane provides enhanced coverage and lifting performance within CMAA Class C service parameters.

This system features a dual-speed electric wire rope hoist, a plug-and-play festoon system, and a VFD-driven control panel, ensuring smooth operation and simplified installation. It provides a robust solution for material handling operations that require high durability and reliability.

System Specifications

Crane Type Top Running, Single Girder

Service Class CMAA Class C

Rated Capacity 10 U.S. Tons

Span 55 ft – 0 in

Lift Height 30 ft

Power Supply 460V / 3-Phase / 60 Hz

Control Voltage 110 VAC

Configured List Price $111,027.68 (Subject to change at the time of order)

Motion Speeds

Bridge Travel 8–80 fpm (VFD-controlled)

Trolley Travel 66 / 11 fpm (Dual Speed, VFD)

Hoist Lift 20 / 3.3 fpm (Dual Speed, VFD)

No Load Hoist Speed 30 fpm

Component Overview

Bridge Beam Assembly

  • Beam: W30x148 with MC18x42.7 Channel Cap
  • Span: 55 ft
  • Grade: ASTM A572 Grade 50
  • Weight: 10,315.66 lbs
  • Finish: Standard Harrington Yellow
  • Designed for RY1U hoist and TMS3-1060 end trucks
  • Supplied notched for festoon cable system

End Trucks

  • Model: TMS3-1060
  • Capacity: 10 Ton
  • Traverse Speed: 80 fpm
  • Rail Compatibility: 60# ASCE (2.375")
  • Wheel Diameter: 9.84 in
  • Hardness: 160–220 BHN
  • Motor Output: 1 HP / 1.8 A each
  • Net Weight: 564.5 lbs each
  • Includes motor plug kit

Electric Wire Rope Hoist

  • Model: RYU100C30HDD4
  • Capacity: 10 Ton
  • Lift: 30 ft
  • Voltage: 460V / 3Ph / 50–60Hz
  • Amps: 27.4 max (@250kVA supply)
  • Hoisting Speed: 20 / 3.3 fpm (VFD adjustable)
  • No Load Speed: 30 fpm
  • Trolley Speed: 66 / 11 fpm (VFD adjustable)
  • Flange Range: 5.90 – 13.78 in
  • Net Weight: 2,227 lbs
  • Certifications: UL1340, CSA 22.2 No. 33
  • Includes crane connection kit

Control Panel

  • Model: P1V4640C45R11N1
  • Fused for 32.4 A total motor draw
  • Mainline Disconnect Fuse: 45 A
  • Voltage: 460V / 3Ph / 60Hz
  • Features: Plug-and-play setup, VFD-driven for all motions

Pendant Control

  • Type: L-Series, NEMA 4 Rated
  • 8-Button Roving Pendant
  • Motion: Dual Speed (Bridge, Trolley, Hoist)
  • Plug: 16P Quick-Connect
  • Drop Length: 30 ft (beam bottom to pendant bottom)
  • Operation: Momentary On/Off

Flat Cable Festoon System

  • For Power and Pendant (Plug & Play)
  • Voltage: 460V / 3Ph / 60Hz
  • Amperage: 26.1 A
  • Designed for W30x148 beam with MC18 cap
  • Span: 55 ft

Wiring

  • System Amperage: 27.9 A
  • For Modified TMS3-1060 End Trucks
  • Power for Two 1.8 A motors
  • Conduit: Liquidtight with NEMA 4 rating
  • Pre-configured for plug-and-play setup

Compliance & Safety Standards

This crane is manufactured in compliance with the following standards:

  • OSHA 1910.179 – Overhead and Gantry Cranes
  • ASME B30.2, B30.16, B30.17 – Hoist & Crane Safety
  • ASME HST-4 – Electric Wire Rope Hoist Performance
  • CMAA 74 – Crane Specifications
  • NFPA 70 – National Electrical Code
  • UL and CSA Certification on applicable components

Additional Notes:

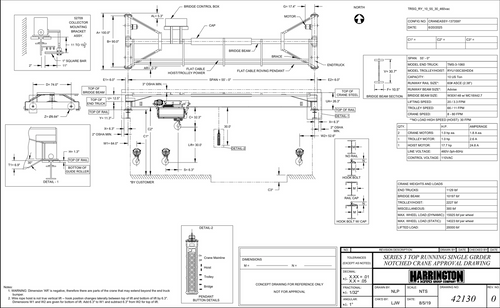

  • Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
  • Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
  • For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
  • Cranes shipped fully assembled also require a dedicated carrier.
  • Additional shipping costs associated with special dedicated handling are the customer's responsibility.
