Product Overview

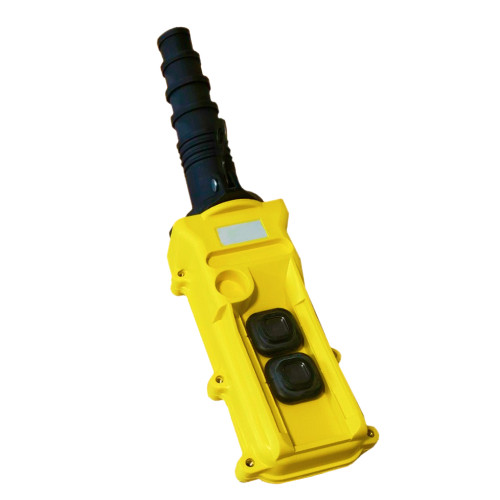

Duct-O-Wire L2-S-1 Pendant Station – 2 Button (Maintained On/Off Control)
Product Description:
The Duct-O-Wire L2-S-1 is a specialized two-button pendant station from the L-Series designed for maintained (latched) on/off control. Unlike standard momentary-contact pendants, the L2-S-1 features maintained contacts, allowing the button state to stay engaged until manually changed—ideal for powering equipment on or off without continuous button pressure.
Its rugged design includes an impact-resistant thermoplastic housing and an ergonomic layout, making it suitable for industrial environments where simple power control or start/stop functionality is needed. This model is perfect for controlling power to a hoist, motor, or other equipment where maintained switching is required.
Key Features:
- Two-button configuration for maintained on/off or start/stop functions.
- Maintained contact switches (latching) – there is no need to hold down the button.
- Heavy-duty thermoplastic housing resists impact, moisture, and industrial wear.
- Ergonomic design for comfortable, easy operation.
- Suitable for basic power control applications or machinery start/stop control.
- NEMA-rated for industrial use in harsh environments.
Technical Specifications:
SpecificationDetail
Model L2-S-1
Series L-Series
Number of Buttons 2 (maintained-contact type)
Function Maintained on/off control
Button Type Maintained (push-on, push-off)
Enclosure Rating NEMA Types 1, 3, 4, and 12
Housing Material Impact-resistant thermoplastic
Operating Temperature -15°C to +40°C (5°F to 104°F)
Cable Entry Top or bottom via knockout
Contact Rating 600V AC max, 10A continuous
Mounting Hand-held with optional strain relief
Dimensions Approx. 7.5" H x 2.5" D x 2.5" W
Weight Approx. 1.0 lb
