Product Overview

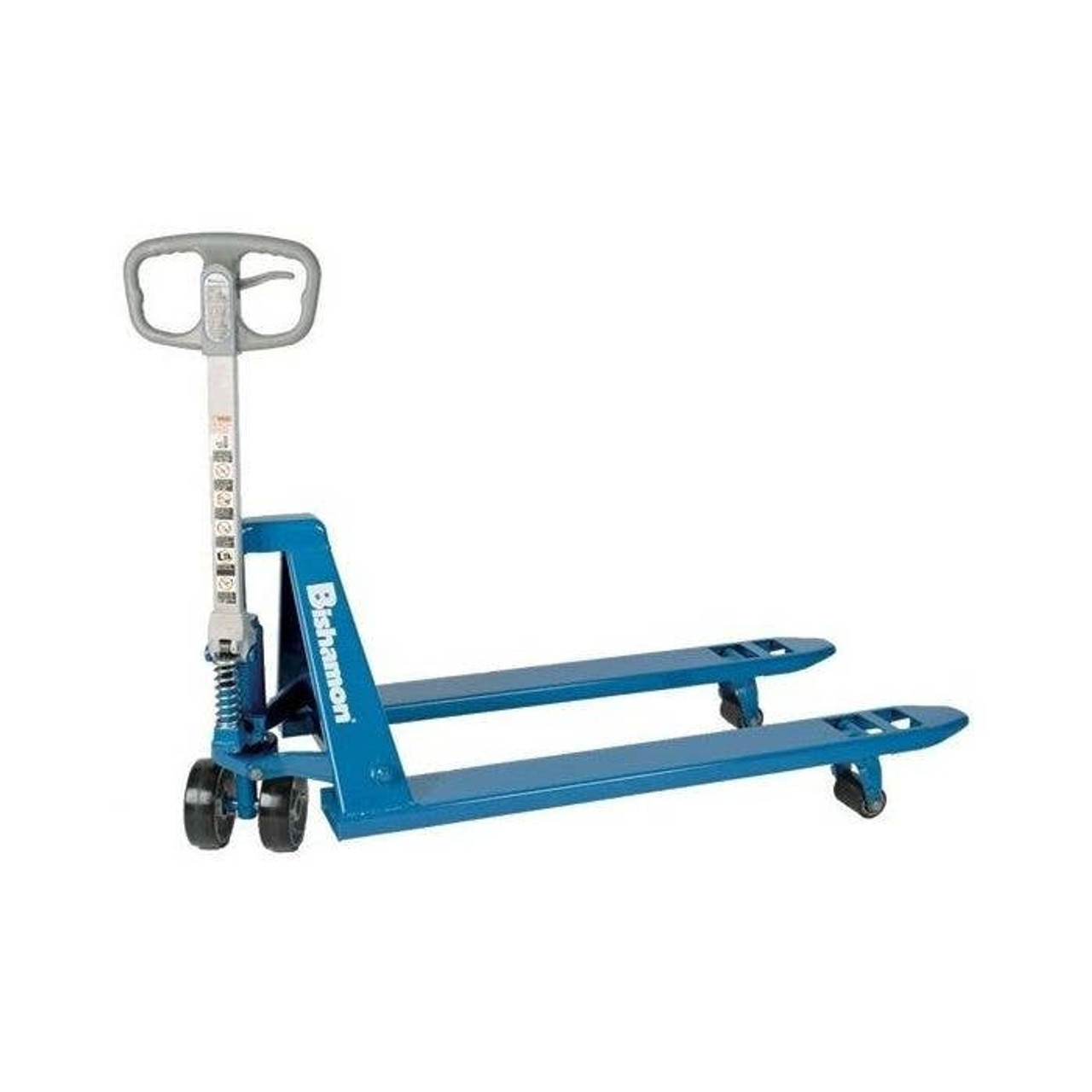

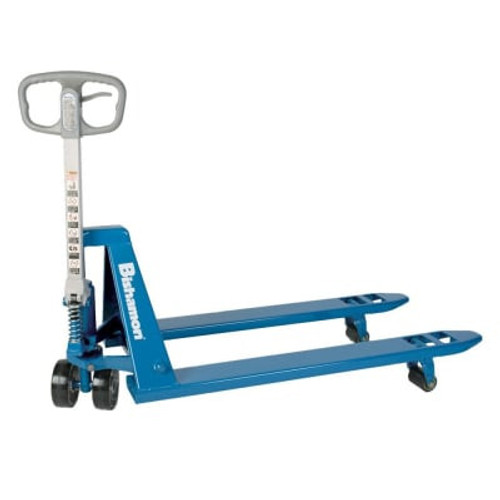

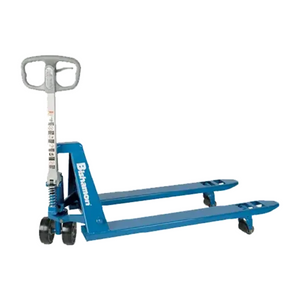

Bishamon BS-55B Blue Label Pallet Truck
Rugged Design. Smooth Handling. Built to Last.
The Bishamon BS-55B is a premium pallet truck in the trusted Blue Label Series, designed for high-performance material handling in the most demanding industrial environments. Manufactured with precision engineering and heavy-duty materials, the BS-55B delivers effortless pallet movement, exceptional durability, and reliable service life.
Its narrow fork width makes the BS-55B ideal for applications requiring tighter maneuverability and compatibility with smaller or half-size pallets. Just like other models in the series, the BS-55B is fully rebuildable, offering extended longevity and reduced maintenance costs over time.
Whether used in warehouses, stockrooms, cold storage, or onboard trucks, the BS-55B consistently meets the highest standards of quality and performance.
Standard Features
- Three-position ergonomic hand lever controls lift, lower, and neutral functions in any handle position
- 210° handle rotation for excellent control and tight turns
- Low-friction thrust bearings in the hydraulic assembly and steering head
- High-quality polyurethane wheels and load rollers for reduced effort and long service life
- Premium ball bearings on all wheels and rollers for smooth rollability
- One-piece formed forks, and solid steel push rods maximize strength
- Durable-formed steel entry slides guide forks into pallets and help deflect debris
- Rugged, high-strength steel frame with continuous welds
- Fully rebuildable hydraulic unit and chassis
- Durable baked enamel blue finish
Key Benefits
- Smooth, Easy Movement: Quality components ensure effortless pallet transport
- Compact Fork Width: Ideal for narrow pallets and tight spaces
- Tough and Reliable: Built for heavy-duty, all-day use in industrial settings
- Operator-Friendly Design: Swiveling handle and ergonomic controls reduce fatigue
- Service-Ready Build: Rebuildable design means fewer replacements and lower long-term cost
Technical Specifications – BS-55B
SpecificationDetails
Model BS-55B
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 20.5 inches
Fork Length 48 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated, baked enamel (Blue)
Weight Approx. 180 lbs
Construction Fully welded steel frame, rebuildable
Recommended Use Warehouses, trucks, narrow aisles, retail stockrooms, cold storage, loading docks
