Product Overview

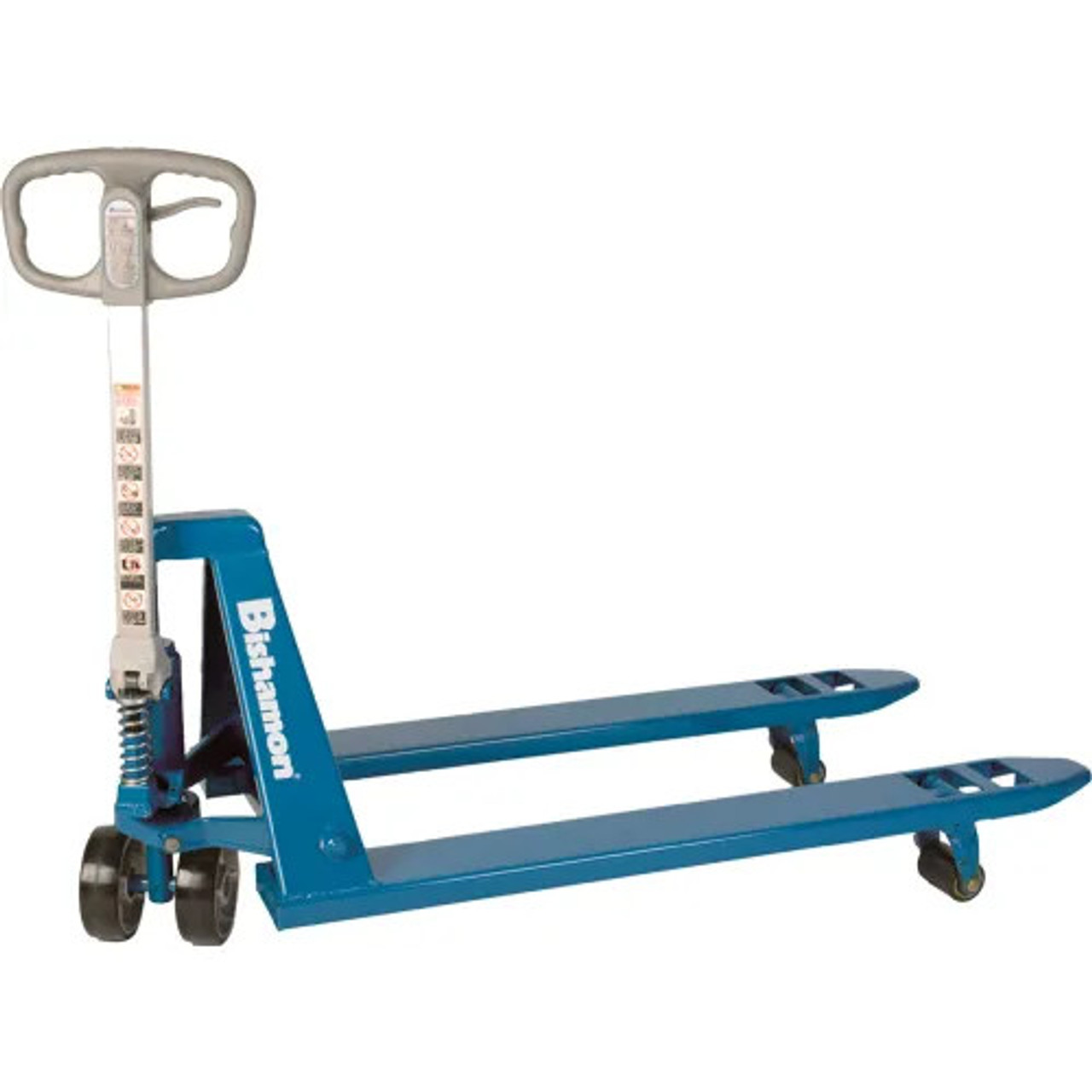

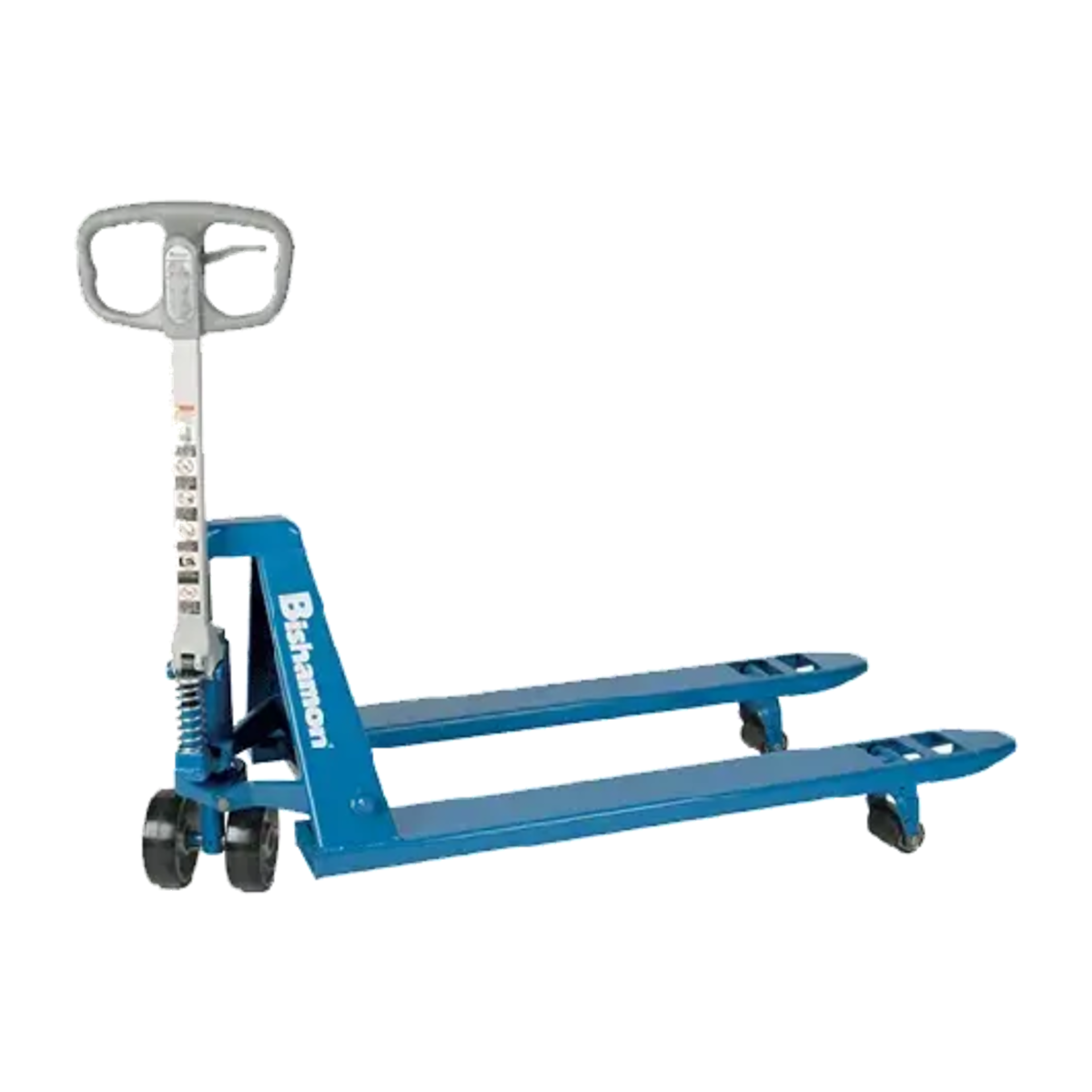

Bishamon BS-55E Blue Label Pallet Truck
Maximum Load Length. Maximum Performance.
The Bishamon BS-55E is the extended-length solution in the trusted Blue Label Series, engineered for transporting extra-long or double-pallet loads with ease and stability. Featuring 72-inch forks, the BS-55E delivers the same precision handling, heavy-duty construction, and premium performance that have made Bishamon the gold standard in pallet trucks.
Built to thrive in demanding environments such as warehouses, manufacturing plants, and distribution centers, the BS-55E features a fully rebuildable design and rugged steel construction for long-term, cost-effective use.
Standard Features
- The three-position ergonomic hand lever controls lifting, lowering, and neutral with ease
- 210° swivel handle for excellent control, even with oversized loads
- Low-friction thrust bearings in the hydraulic unit and steering mechanism
- High-grade polyurethane steer and load wheels for smooth, quiet operation
- Premium ball bearings on all wheels and rollers for consistent rollability
- One-piece formed forks with solid steel push rods for extra durability
- Formed steel entry slides assist pallet entry and deflect debris
- Heavy-duty welded steel frame
- Fully rebuildable hydraulic pump and chassis
- Durable baked enamel blue powder-coated finish
Key Benefits
- Extra-Long 72" Forks: Ideal for transporting longer or double pallets
- Industrial-Grade Strength: 5,500 lb capacity for heavy-duty applications
- Smooth Handling: Engineered for quiet, stable operation with long loads
- Ergonomic Control: Easy-to-use handle reduces operator fatigue
- Extended Service Life: Rebuildable system lowers long-term maintenance costs
Technical Specifications – BS-55E
SpecificationDetails
Model BS-55E
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 27 inches
Fork Length 72 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated, baked enamel (Blue)
Weight Approx. 220 lbs
Construction Fully welded steel frame, rebuildable
Recommended Use Oversized pallets, double-stacked loads, warehouses, factories, logistics operations
