Product Overview

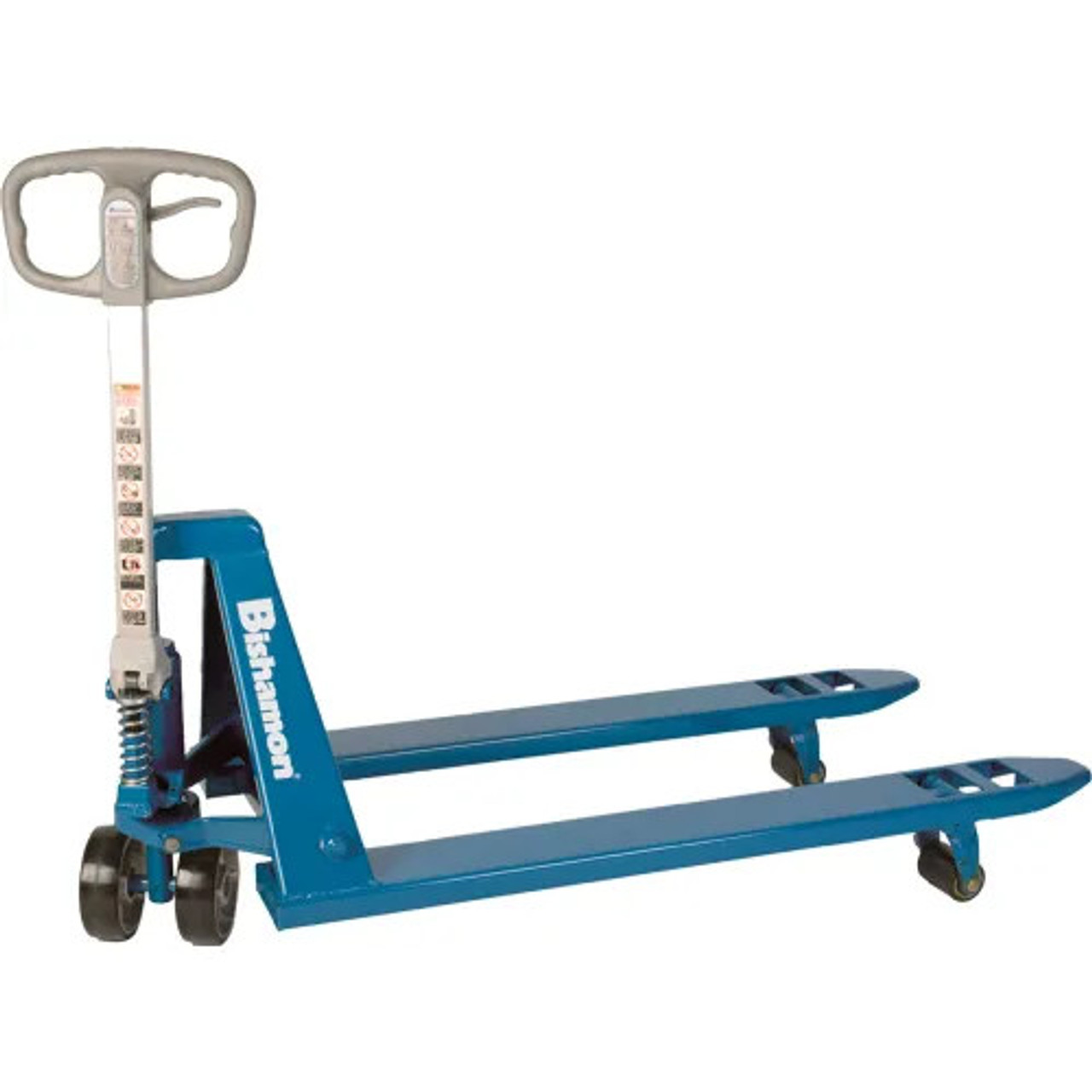

Bishamon BS-55C Blue Label Pallet Truck
Compact Length. Full-Scale Performance.
The Bishamon BS-55C is a compact, high-performance pallet truck in the trusted Blue Label Series, engineered for smooth, durable operation in tight spaces and high-traffic environments. With a shorter 36-inch fork length, the BS-55C is ideal for maneuvering in narrow aisles, retail backrooms, and confined workspaces—without sacrificing strength or reliability.
Like all Blue Label models, the BS-55C is built with high-strength materials and premium components, ensuring exceptional rollability, long service life, and a fully rebuildable design that minimizes lifetime operating costs.
Standard Features
- Ergonomic, three-position hand lever for lift, lower, and neutral operations in any handle position
- 210° handle rotation for excellent maneuverability in confined spaces
- Low-friction thrust bearings in the hydraulic pump and steering mechanism
- Polyurethane steer and load wheels for smooth rolling and long wear
- High-quality ball bearings on all rollers and wheels
- Formed steel entry slides guide forks into pallets and help deflect debris
- One-piece formed forks and solid steel push rods for maximum structural integrity
- Rugged all-steel frame with continuous welds for superior durability
- Fully rebuildable hydraulic pump and chassis
- Durable blue powder-coated finish
Key Benefits
- Short Fork Length: Compact 36" forks provide easier handling in tight or narrow areas
- Heavy-Duty Construction: Designed for full industrial use with 5,500 lb capacity
- Smooth Operation: Premium wheels and thrust bearings ensure easy movement
- Ergonomic Design: Reduces operator fatigue with intuitive controls
- Extended Service Life: Fully rebuildable components lower long-term ownership costs
Technical Specifications – BS-55C
SpecificationDetails
Model BS-55C
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 27 inches
Fork Length 36 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated, baked enamel (Blue)
Weight Approx. 170 lbs
Construction Fully welded steel frame, rebuildable
Recommended Use Retail stockrooms, narrow aisles, warehouses, freezers, trucks, confined work areas
