Product Overview

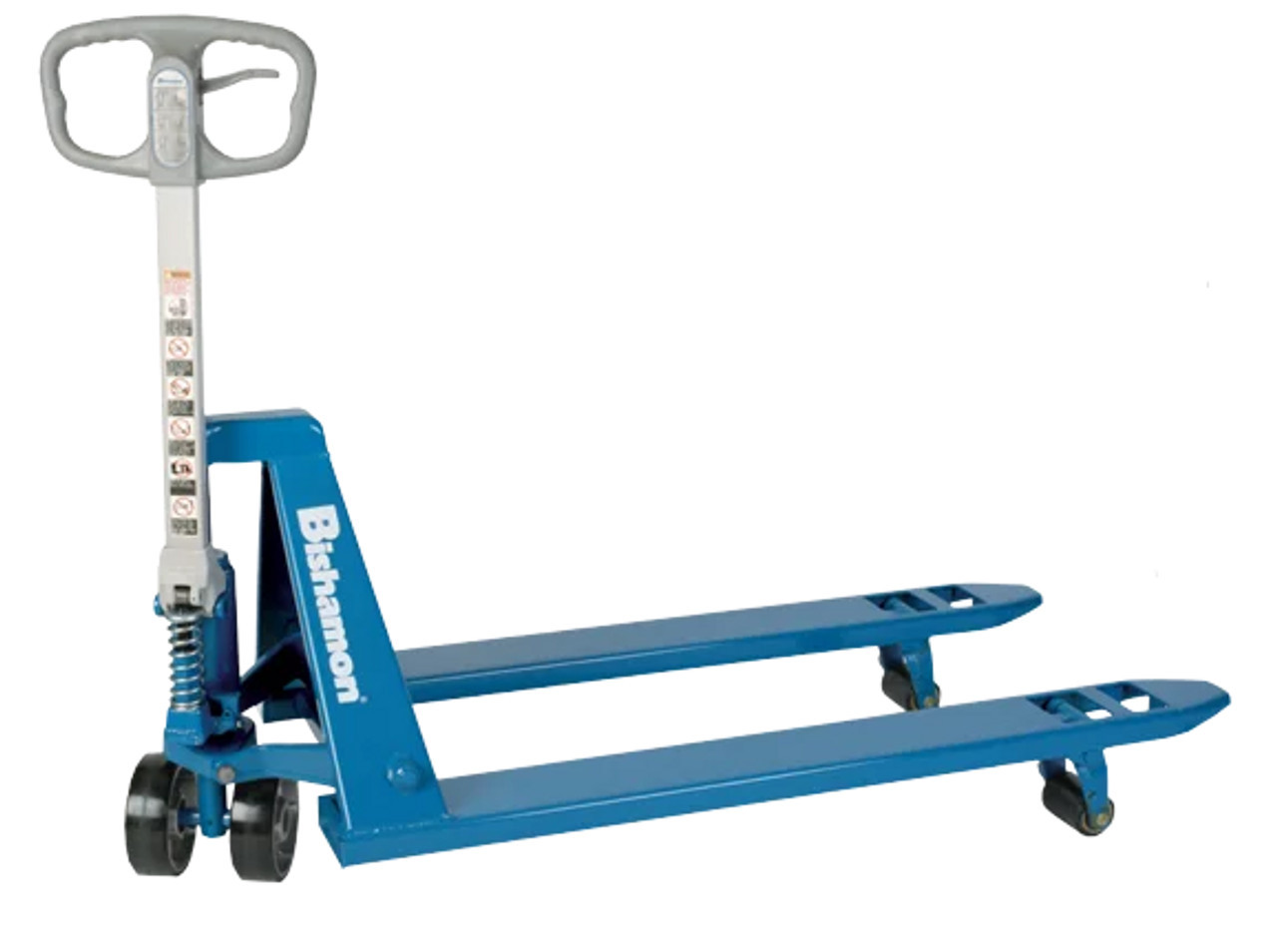

Bishamon BS-55H Blue Label Low-Profile Pallet Truck
Low Clearance. Full Capacity. Built to Perform.
The Bishamon BS-55H is a low-profile model in the trusted Blue Label Series, specifically designed to handle low-clearance pallets and skids that standard pallet jacks cannot access. With a lowered fork height of just 2.0 inches, the BS-55H offers easy entry under slim, non-standard pallets—while still maintaining a full 5,500 lb capacity.
Engineered with Bishamon's premium components, rugged steel construction, and a fully rebuildable hydraulic system, the BS-55H provides superior durability, rollability, and ergonomic operation. It's the go-to solution for tight pallet tolerances in warehouses, packaging plants, and logistics operations.
Standard Features
- Ergonomic 3-position control lever (Lift / Lower / Neutral) functions in any handle position
- 210° steering arc for exceptional control in confined spaces
- Low-friction thrust bearings in the hydraulic unit and steering system
- Premium polyurethane wheels and load rollers ensure quiet, smooth movement
- High-quality sealed ball bearings reduce resistance and increase longevity
- One-piece formed fork construction for strength and rigidity
- Steel entry slides guide forks into low-clearance openings and protect against debris
- Heavy-duty steel push rods and welds withstand demanding use
- Fully rebuildable pump and chassis for extended equipment life
- Powder-coated blue baked enamel finish provides corrosion protection
Key Benefits
- Low-Profile Design: Forks lower to just 2.0 inches—ideal for skids and low-clearance pallets
- Full 5,500 lb Capacity: No compromise on strength or lifting power
- Smooth Rollability: Premium components reduce effort and increase productivity
- Built to Last: Heavy-duty, rebuildable design for years of dependable service
- Versatile Use: Perfect for specialized material handling in tight pallet height conditions
Technical Specifications – BS-55H
SpecificationDetails
Model BS-55H
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 27 inches
Fork Length 48 inches
Lowered Fork Height 2.0 inches
Raised Fork Height 6.9 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type Low-profile hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated, baked enamel (Blue)
Weight Approx. 190 lbs
Construction Heavy-duty welded steel, rebuildable
Recommended Use Low-clearance pallets, display pallets, warehouses, distribution centers, packaging facilities
