Product Overview

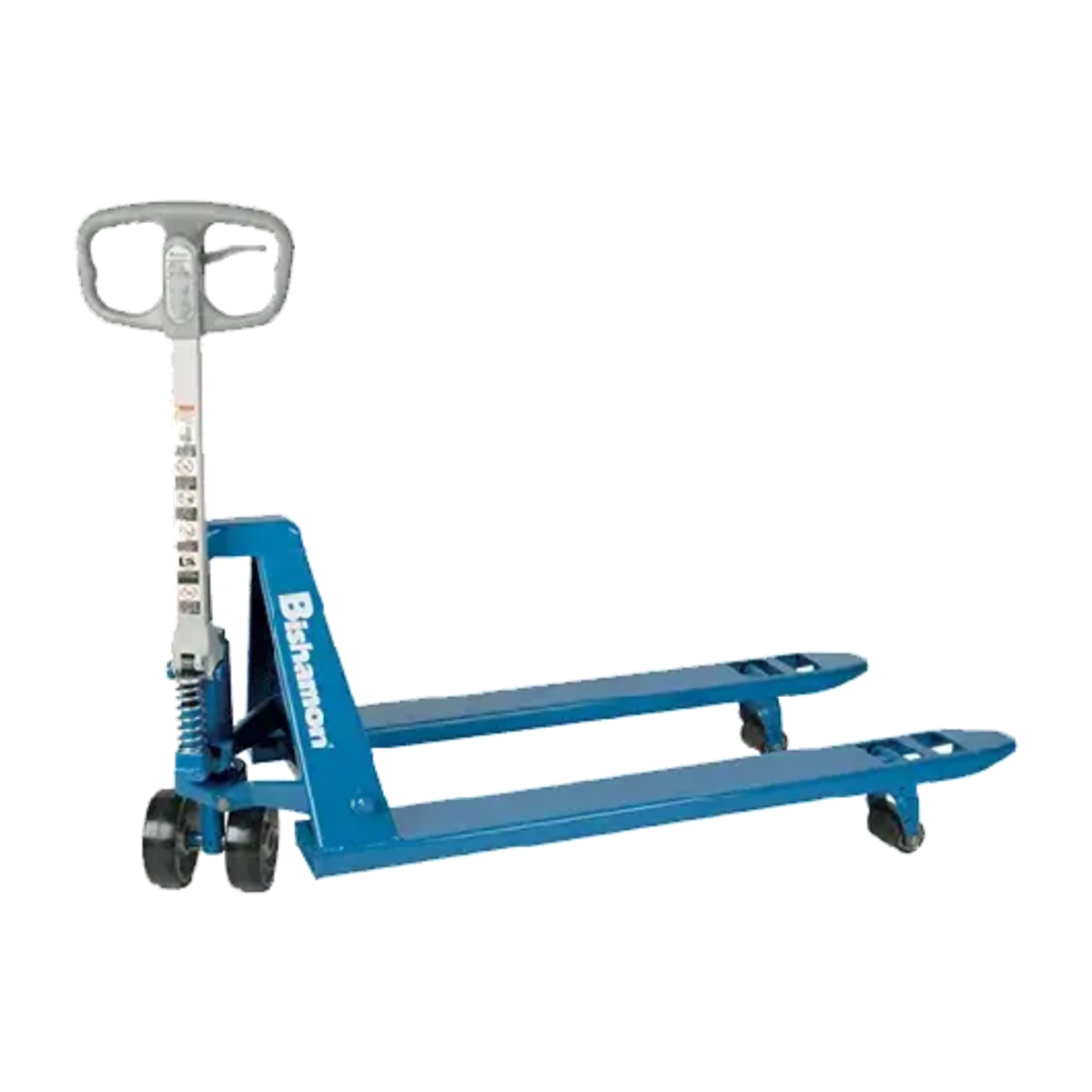

Bishamon BS-55D Blue Label Pallet Truck
Extended Reach. Premium Strength. Superior Control.
The Bishamon BS-55D is a long-fork model in the industry-leading Blue Label Series, designed to handle oversized palletized loads with precision and ease. Featuring a 60-inch fork length, the BS-55D is ideal for transporting longer or double-stacked pallets in warehouses, distribution centers, and manufacturing plants.
Built with the same premium materials and rugged engineering as all Blue Label models, the BS-55D offers outstanding rollability, ergonomic control, and heavy-duty performance. Its fully rebuildable design ensures lasting value and lower total cost of ownership over the life of the truck.
Standard Features
- Three-position ergonomic hand lever controls lift, lower, and neutral functions
- 210° handle rotation allows a tight turning radius, even with longer loads
- Heavy-duty thrust bearings for smooth operation under full load
- High-quality polyurethane wheels and load rollers for durability and effortless movement
- Premium sealed ball bearings on all wheels and rollers
- One-piece formed forks and non-adjustable solid steel push rods for maximum structural integrity
- Formed steel entry slides assist with pallet entry and debris deflection
- Fully welded, high-strength steel frame
- Hydraulic assembly and chassis are fully rebuildable
- Baked enamel powder-coated finish for long-lasting protection
Key Benefits
- Extra Fork Length: 60" forks handle longer pallets and larger loads with ease
- Heavy-Duty Capacity: Supports up to 5,500 lbs in demanding industrial conditions
- Smooth Rollability: Premium components reduce resistance during transport
- Operator Comfort: Ergonomic controls and fluid maneuverability reduce strain
- Built to Last: Durable, rebuildable design extends operational life
Technical Specifications – BS-55D
SpecificationDetails
Model BS-55D
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 27 inches
Fork Length 60 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated, baked enamel (Blue)
Weight Approx. 200 lbs
Construction Fully welded steel frame, rebuildable
Recommended Use Long pallet handling, warehouses, factories, distribution centers, loading docks
