Product Overview

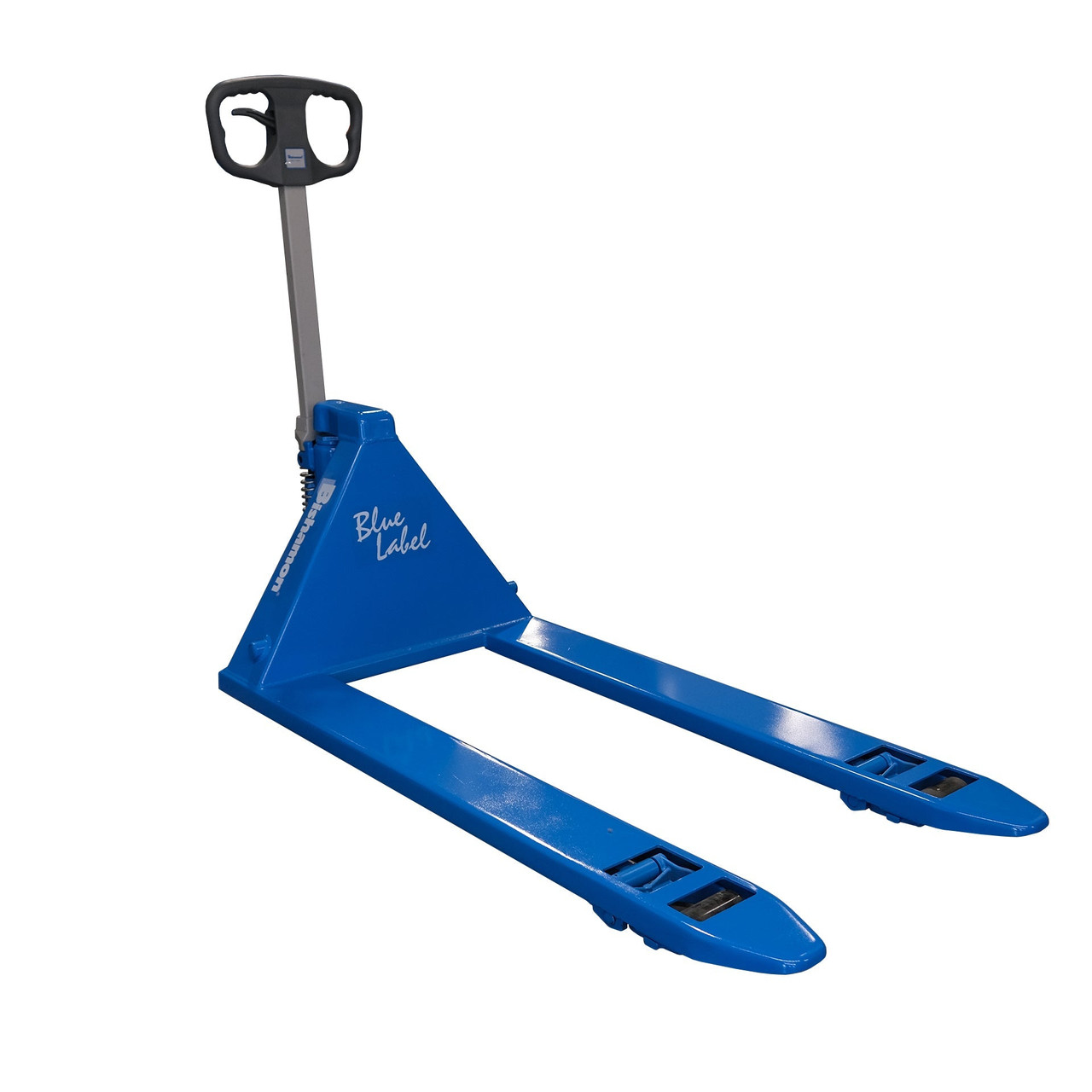

Bishamon BS-55A Blue Label Pallet Truck
Premium Performance. Unmatched Durability.
The Bishamon BS-55A is part of the acclaimed Blue Label Series—a line of premium pallet trucks engineered for exceptional performance in demanding material handling environments. Designed with precision and manufactured using high quality materials, the BS-55A offers you unmatched rollability, durability, and long-term reliability. Whether you are operating in warehouses, stockrooms, supermarkets, cold storage facilities, or loading docks, the BS-55A delivers smooth and efficient pallet movement. Unlike many competing models, it features a fully rebuildable design for extended service life and reduced total cost of ownership.
Standard Features
- Ergonomic three-position hand lever controls lift, lower, and neutral functions in any handle position
- 210° handle rotation for excellent maneuverability
- Low-friction thrust bearings in the steering head and hydraulic assembly
- Polyurethane steer and load wheels for superior rollability and durability
- High-quality ball bearings on all wheels and rollers
- High-strength steel frame with continuous welds for rugged use
- One-piece formed fork increases strength and service life
- Formed steel entry slides guide forks into pallets and deflect debris
- Solid steel, non-adjustable push rods for enhanced durability
- Fully rebuildable hydraulic assembly and frame
- Durable baked enamel blue finish
Key Benefits
- Unmatched Rollability: Premium wheels and bearings ensure smooth, effortless movement
- Exceptional Durability: Built for continuous use in harsh industrial environments
- Ergonomic Operation: User-friendly controls and a swiveling handle for reduced operator strain
- Versatile Application: Performs reliably in dry, wet, and cold environments—including freezers
- Service-Friendly Design: Fully rebuildable components extend product life and reduce downtime
Technical Specifications – BS-55A
SpecificationDetails
Model BS-55A
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 27 inches
Fork Length 48 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated, baked enamel (Blue)
Weight Approx. 190 lbs
Construction Fully welded steel frame, rebuildable
Recommended Use Warehouses, trucks, factories, supermarkets, cold storage rooms, loading docks
