Product Overview

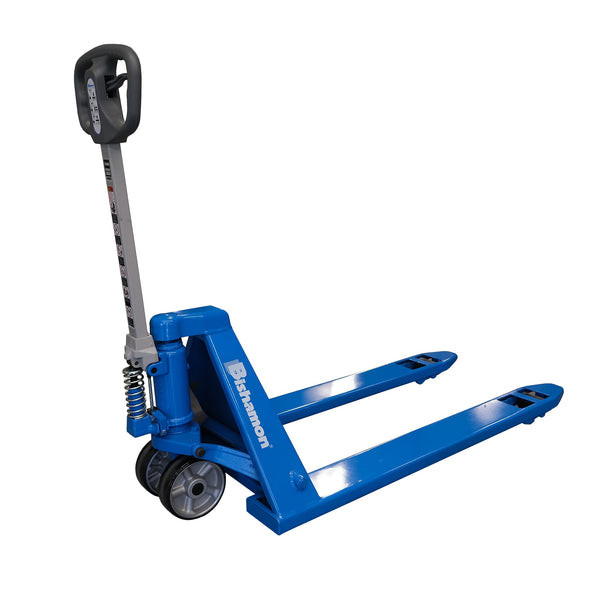

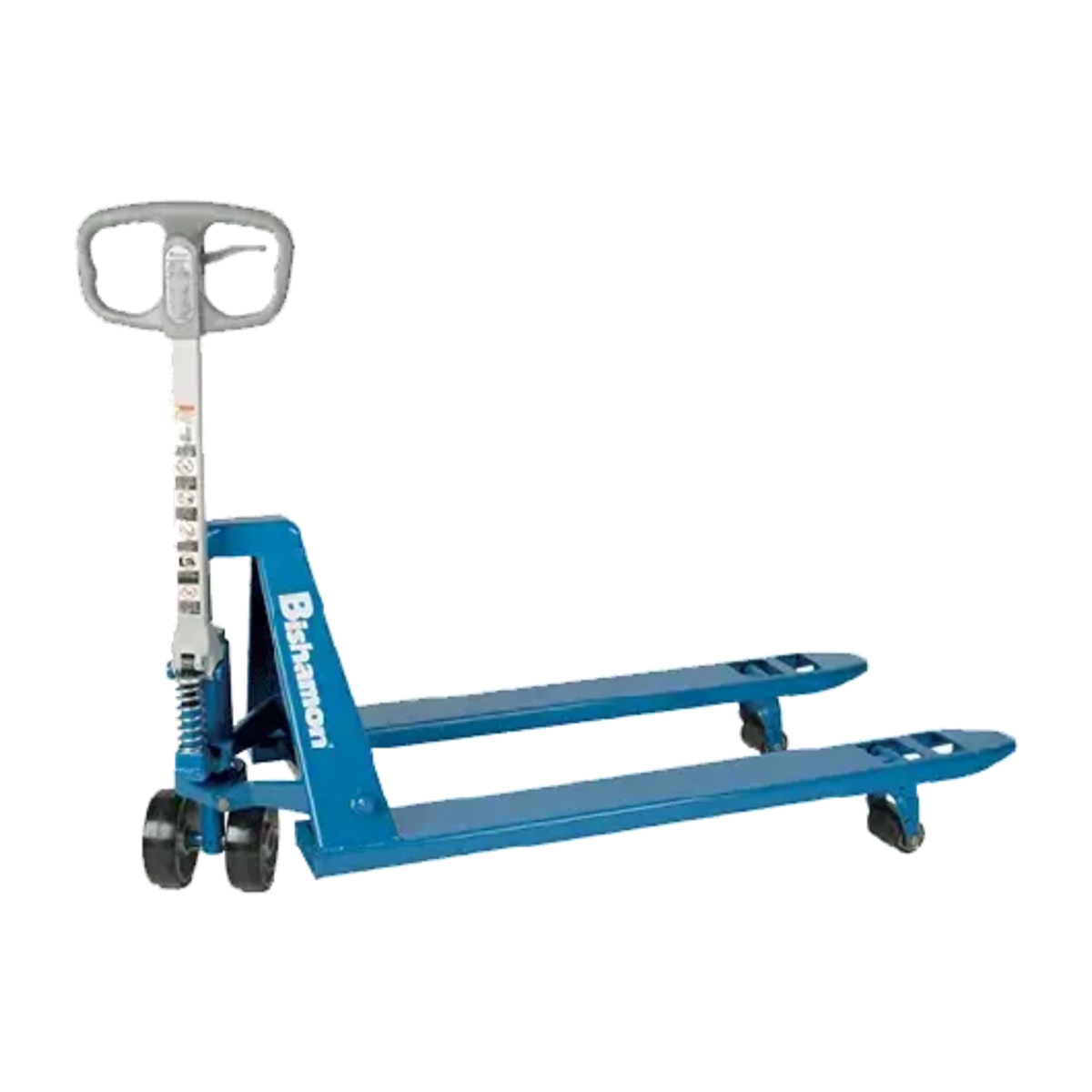

Bishamon BS-55G Blue Label Pallet Truck
Slim Fit. Heavy Load. Precision Handling.
The Bishamon BS-55G is a narrow-fork version of the trusted Blue Label Series, expertly designed to handle standard-size pallets with ease in space-constrained environments. With an overall fork width of 20.5 inches, the BS-55G offers increased maneuverability without compromising strength—making it ideal for warehouses, trucks, small stockrooms, and retail spaces.
Like all models in the Blue Label Series, the BS-55G features a 5,500 lb capacity, premium rollability, ergonomic control, and a fully rebuildable design—delivering long-term value and peak performance.
Standard Features
- Three-position ergonomic control lever (Lift / Lower / Neutral) functions in any handle position
- 210° handle swivel allows easy turning, even in confined spaces
- Low-friction thrust bearings in the hydraulic pump and steering head
- Durable polyurethane steer and load wheels for smooth, quiet operation
- High-performance sealed ball bearings for minimal rolling resistance
- One-piece formed forks and solid steel push rods for structural integrity
- Forged steel entry/exit slides aid in pallet entry and debris diversion
- Heavy-duty, welded steel construction
- Fully rebuildable hydraulic and frame assembly
- High-durability powder-coated blue finish
Key Benefits
- Narrow Fork Profile (20.5”): Ideal for tight areas and standard GMA-style pallets
- High Capacity: Rated for 5,500 lbs for heavy-duty use
- Smooth Operation: Precision movement even under full load
- Operator Comfort: Ergonomic design reduces fatigue and enhances safety
- Extended Service Life: Rebuildable components for long-term reliability
Technical Specifications – BS-55G
SpecificationDetails
Model BS-55G
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 20.5 inches
Fork Length 48 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Durable baked enamel, blue
Weight Approx. 185 lbs
Construction Welded steel frame, rebuildable
Recommended Use Narrow aisles, retail, trucks, stockrooms, standard pallet handling
