Product Overview

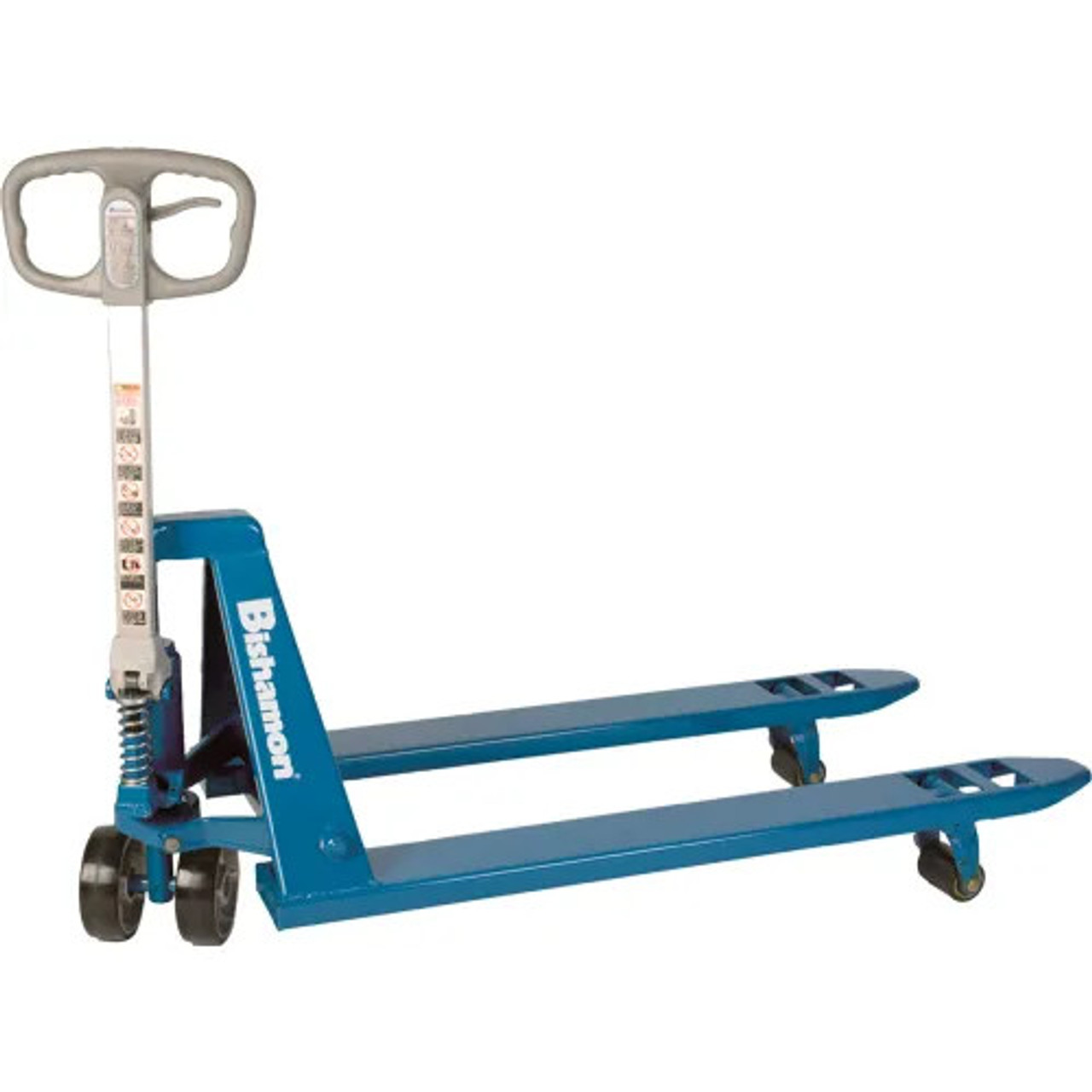

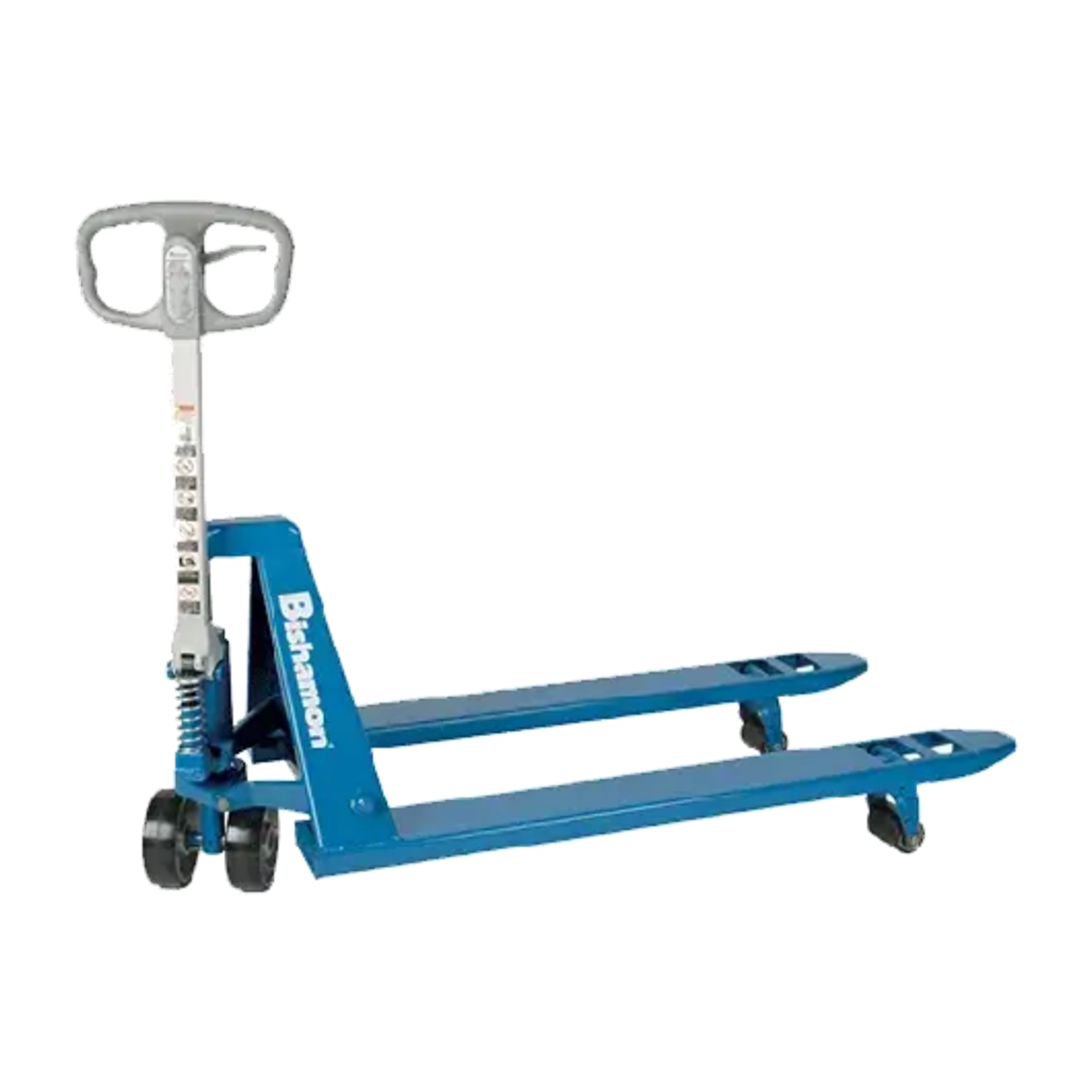

Bishamon BS-55F Blue Label Pallet Truck
Narrow Frame. Full Power. Superior Maneuverability.
The Bishamon BS-55F is the ultra-narrow model in the Blue Label Series, engineered to deliver powerful performance in tight aisles, compact storage areas, and specialized pallet applications. With a fork width of just 16 inches, the BS-55F provides unmatched maneuverability while maintaining the same 5,500 lb load capacity found across the BS Series.
Designed with advanced engineering and premium materials,, this pallet truck features a fully rebuildable hydraulic system and frame, ensuring a long service life and excellent return on investment. Ideal for retail, food service, mobile delivery, and other environments where space is limited and precision matters.
Standard Features
- Three-position ergonomic hand lever (Lift / Neutral / Lower) operable from any handle position
- 210° rotating handle for tight maneuvering in confined areas
- Precision thrust bearings in the hydraulic assembly and steering head
- Polyurethane steer and load wheels for low resistance and durability
- Sealed ball bearings on all wheels and rollers for smooth, quiet operation
- One-piece formed forks and solid steel push rods for reinforced strength
- Entry/exit slides for smooth pallet engagement and debris deflection
- Heavy-duty, welded steel frame
- Fully rebuildable hydraulic pump and chassis
- Tough powder-coated blue finish for added protection
Key Benefits
- Narrow 16” Fork Width: Perfect for half-pallets, custom skids, and tight spaces
- Heavy-Duty Build: Maintains full 5,500 lb capacity despite compact profile
- Operator-Friendly Controls: Designed for comfort and efficiency
- Smooth Mobility: Premium wheels and bearings reduce push force
- Long-Term Value: Rebuildable design means years of reliable service
Technical Specifications – BS-55F
SpecificationDetails
Model BS-55F
Capacity 5,500 lbs (2,500 kg)
Fork Width (Overall) 16 inches
Fork Length 48 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type High-quality hydraulic pump
Handle Ergonomic, three-position lever
Finish Baked enamel, powder-coated blue
Weight Approx. 175 lbs
Construction Fully welded steel frame, rebuildable
Recommended Use Retail, cold storage, mobile carts, delivery trucks, tight aisle applications, half-pallet handling
