Product Overview

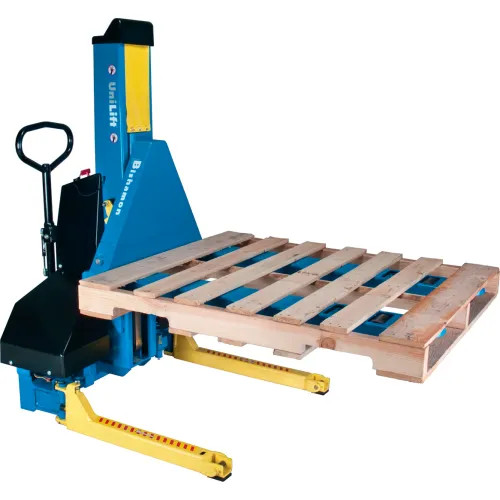

Bishamon UNI-20 UniLift™ Pallet Transporter & Positioner
Lift, Transport, Position — All in One.
The Bishamon UNI-20 UniLift™ combines the functionality of a pallet jack, lift table, and work positioner in one innovative piece of equipment. Designed for open-bottom pallets, skids, and containers, the UNI-20 offers a full 2,000 lb lifting capacity and provides a seamless transition between transporting loads and elevating them to ergonomic working heights.
Ideal for manufacturing, assembly, packaging, and warehouse operations, the UNI-20 improves productivity and worker safety by reducing bending, reaching, and lifting. With electric lift operation, high maneuverability, and rugged construction, the UNI-20 is an innovative solution for facilities focused on efficiency and ergonomics.
Standard Features
- 2-in-1 design combines pallet truck and lift table functionality
- Powered lift mechanism raises loads to a comfortable working height
- Manual push for easy transport without excessive strain
- Exclusive single-scissor lift design for smooth and stable vertical motion
- Ideal for open-bottom pallets, skids, and containers (not compatible with closed-bottom pallets)
- Compact footprint for easier maneuverability in tight spaces
- Heavy-duty steel construction for industrial reliability
- Foot-operated floor lock ensures safe load handling at height
- Battery-powered lift system with charger included
- Durable powder-coated finish for corrosion resistance
Key Benefits
- Improves Ergonomics: Reduces strain from bending or reaching
- Increases Efficiency: Quickly moves and positions loads at optimal height
- Versatile Use: Combines lifting, transporting, and staging into one operation
- Electric Lift System: Simplifies handling of heavy loads
- Compact and Maneuverable: Fits easily into standard industrial workflows
Technical Specifications – UNI-20
SpecificationDetails
Model UNI-20
Capacity 2,000 lbs (907 kg)
Fork Width (Overall) 27 inches
Fork Length 45 inches
Lowered Fork Height Approx. 3.5 inches
Raised Fork Height Up to 36 inches
Power Source 12V DC battery with onboard charger
Lift Type Electric-powered scissor lift
Wheels Polyurethane steer and load wheels
Weight Approx. 370 lbs
Construction Welded steel, powder-coated finish
Recommended Use Assembly lines, packing stations, open-bottom skids, ergonomic material positioning
