Product Overview

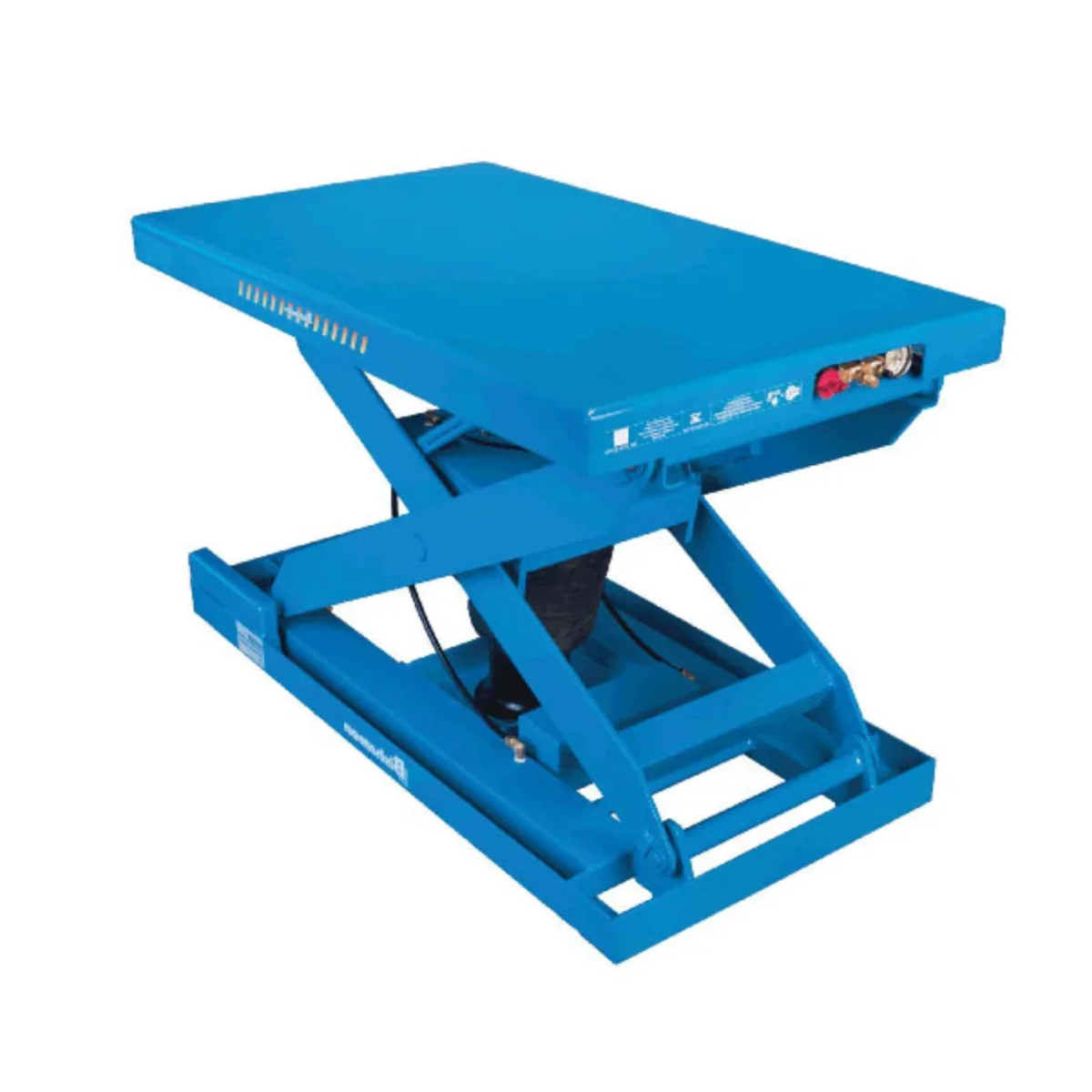

Bishamon EZ Loader-3648® – Rectangular Self-Leveling Pallet Positioner
Wider Platform. Ergonomic Height Adjustment. Built for Productivity.
The Bishamon EZ Loader-3648® is a heavy-duty rectangular self-leveling pallet positioner designed for applications that demand a larger, more stable work surface. Featuring a 36" x 48" rectangular platform, this model is ideal for handling non-standard or larger pallet loads, long boxes, or items where a rotating surface is unnecessary or undesirable.
The EZ Loader-3648 automatically maintains the load at an ergonomic height during loading and unloading, using pneumatic air pressure—no electrical or hydraulic systems are required. Helps reduce back strain, fatigue, and injury risk while improving overall efficiency. Its rugged steel frame and maintenance-free operation make it a trusted solution for material handling in manufacturing, distribution, and warehouse operations.
Key Features
- Large 36" x 48" Rectangular Platform – Accommodates wider or oversized pallet loads
- Pneumatic Self-Leveling Operation – Automatically raises or lowers the platform based on load weight
- No Electricity Required – Operates with standard 60–100 psi shop air
- Fixed Platform Design – No turntable; ideal for linear workflows and fixed pallet alignment
- Heavy-Duty Construction – Durable steel with powder-coated finish for industrial use
- Compact Footprint – Freestanding unit with stable base; no floor anchoring required
- Ergonomic Design – Minimizes bending, reaching, and walking around the load
- Maintenance-Free Performance – No springs, hydraulics, or electrical systems to service
Benefits
- Improves Safety and Comfort – Maintains ideal working height throughout the loading cycle
- Supports Oversized Loads – A wider platform ensures safe, stable handling of large or odd-sized items
- Reduces Manual Labor Strain – Eliminates unnecessary lifting and stretching
- Great for Conveyor Integration – Fixed platform suits in-line workstations
- Easy to Install and Operate – Simple plug-and-play design with shop air connection
Technical Specifications – EZ Loader-3648
SpecificationDetails
Model EZ Loader-3648
Capacity Range 400 – 4,000 lbs (181 – 1,814 kg)
Platform Size 36 inches x 48 inches
Lowered Height 10.5 inches
Raised Height 30 inches
Lift Type Pneumatic (self-leveling)
Platform Rotation None (fixed platform)
Power Source Standard shop air (60–100 psi)
Construction All-steel frame with powder coat finish
Weight Approx. 530 lbs
Applications Material handling, packaging, assembly, warehouse operations, conveyor lines
