Bishamon EZ Loader With 36 X 48 Platform Stainless Steel

Write a Review
$11,200.00
$9,800.00
(You save $1,400.00 )
SKU: EZ Loader-3648-SS
Condition: New
Weight: 510.00 LBS

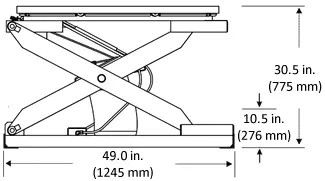

Width: 44.00 (in)
Height: 15.00 (in)
Depth: 48.00 (in)
Shipping: Calculated at Checkout
Capacity: 2,500 - 4,999 lbs
Style: Pallet Positioner
Rotator Ring Diameter: 43 in
Travel: 20 in
Adding to cart… The item has been added
Bishamon EZ Loader With 36 X 48 Platform Stainless Steel

Bishamon EZ Loader With 36 X 48 Platform Stainless Steel

$11,200.00
$9,800.00
(You save $1,400.00 )
Description

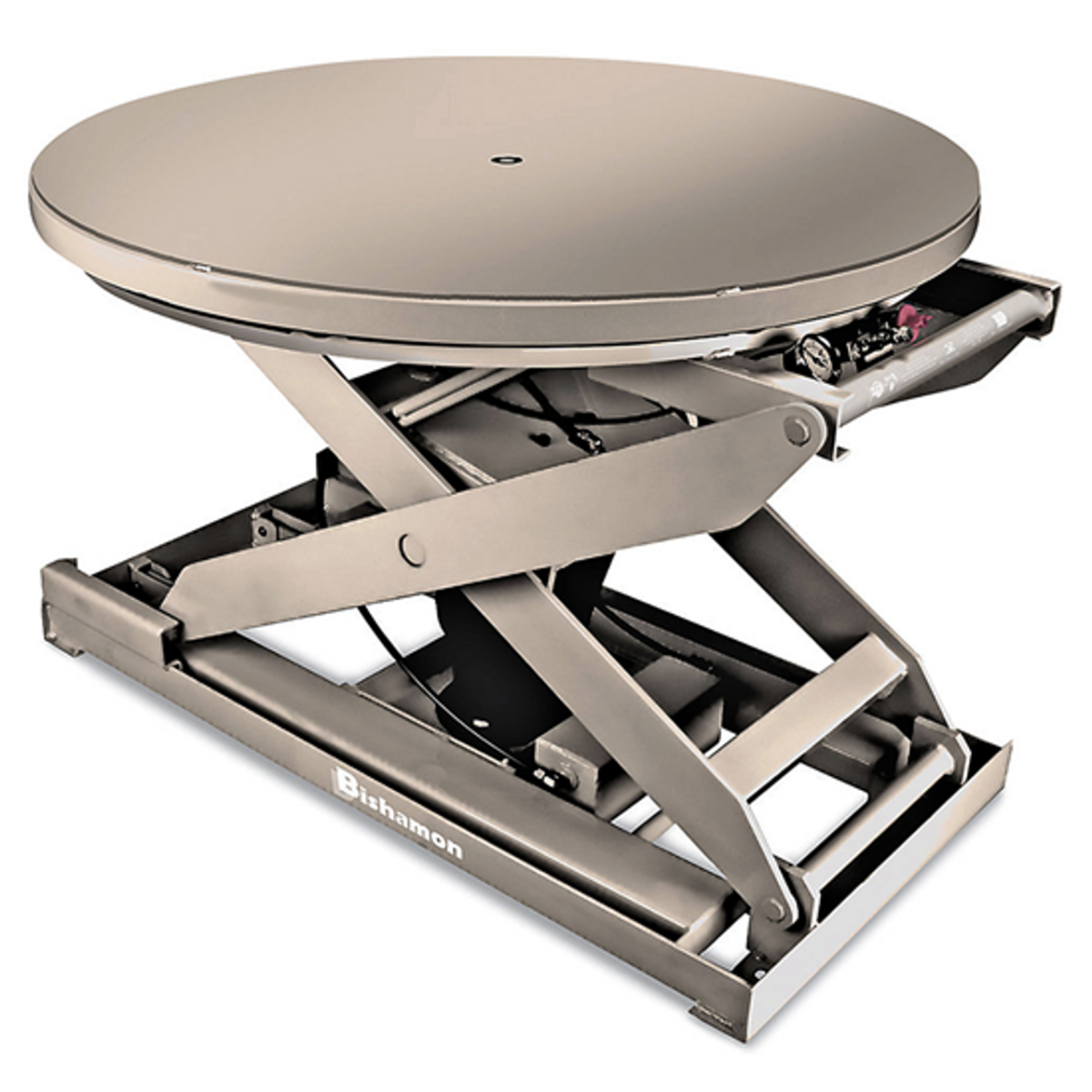

The Bishamon EZ Loader ® 3648-SS Automatic Pallet Positioner is a high-performance stainless steel pallet leveler designed for sanitary applications and efficient material handling. Featuring a 36" x 48" rotating platform, this model accommodates standard and larger pallet sizes while maintaining exceptional stability and ease of use in demanding environments.

Engineered to improve ergonomics and workplace safety, the EZ Loader ® 3648-SS utilizes a self-leveling pneumatic system that automatically adjusts platform height as loads are added or removed. This ensures materials remain at an ideal working height, reducing bending, reaching, and repetitive strain €”helping to prevent injuries while increasing productivity.

Unlike traditional spring-loaded pallet positioners, this unit features a captive air system that provides smooth, controlled, and dampened vertical movement without mechanical springs. This advanced design reduces maintenance requirements while delivering consistent, reliable performance in high-use and washdown environments.

Constructed from corrosion-resistant stainless steel, the EZ Loader ® 3648-SS is ideal for industries requiring strict hygiene standards, including food processing, pharmaceuticals, and cleanroom operations. Its durable construction withstands moisture, chemicals, and frequent cleaning, ensuring long-term reliability.

The integrated rotating turntable ring allows operators to easily spin pallets for 360 ° access, eliminating the need to walk around loads. This improves workflow efficiency and reduces operator fatigue during repetitive tasks. An optional rotator ring brake is available to lock the platform when needed.

The patented EZ Adjust knob enables quick and simple capacity adjustments without altering air pressure, allowing the unit to adapt easily to varying load weights. Delivered fully assembled and ready for use, the EZ Loader ® 3648-SS requires only a compressed air connection for immediate operation.

Designed for flexibility, this model is forklift portable and compatible with optional mobility packages, making it easy to reposition throughout your facility. Whether supporting lean manufacturing initiatives or upgrading your material handling process, the Bishamon EZ Loader ® 3648-SS delivers superior ergonomic performance, sanitation, and efficiency.

Specifications
Model: EZ Loader ® 3648-SS
Platform Size: 36" x 48"
Type: Stainless steel automatic pallet positioner / pallet leveler
Operation: Air-powered (pneumatic) self-leveling system
Capacity Adjustment: EZ Adjust knob with multi-position settings
Lift Mechanism: Captive air system (no mechanical springs)
Platform Feature: Integrated rotating turntable ring for 360 ° load access
Construction: Corrosion-resistant stainless steel for washdown environments
Mobility: Forklift portable; optional mobility kits available
Assembly: Ships fully assembled; ready for immediate use
Control Features: Optional rotator ring brake
Applications: Food processing, pharmaceuticals, cleanrooms, warehousing, distribution, pallet loading/unloading

Warranty Information
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
