Product Overview

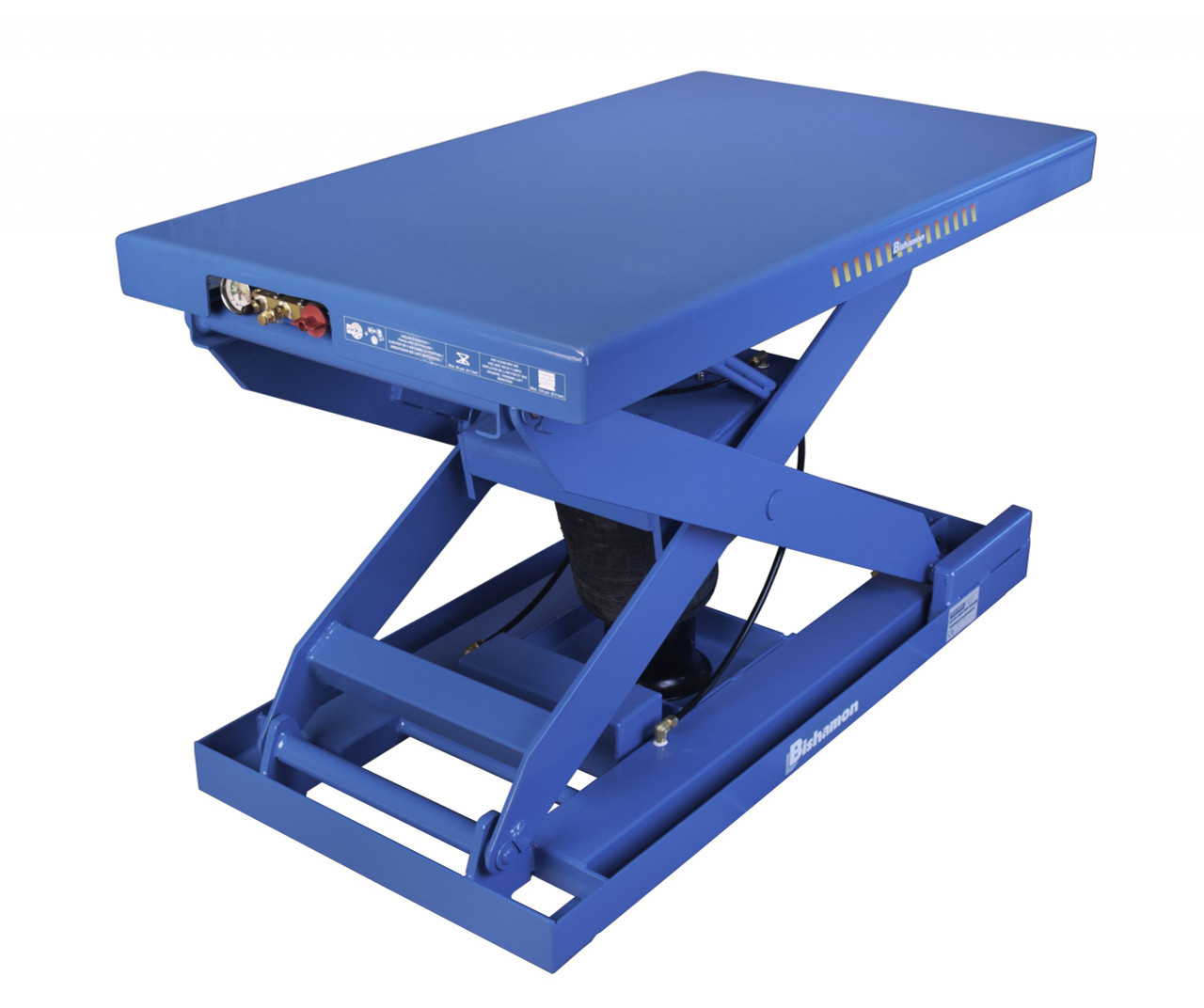

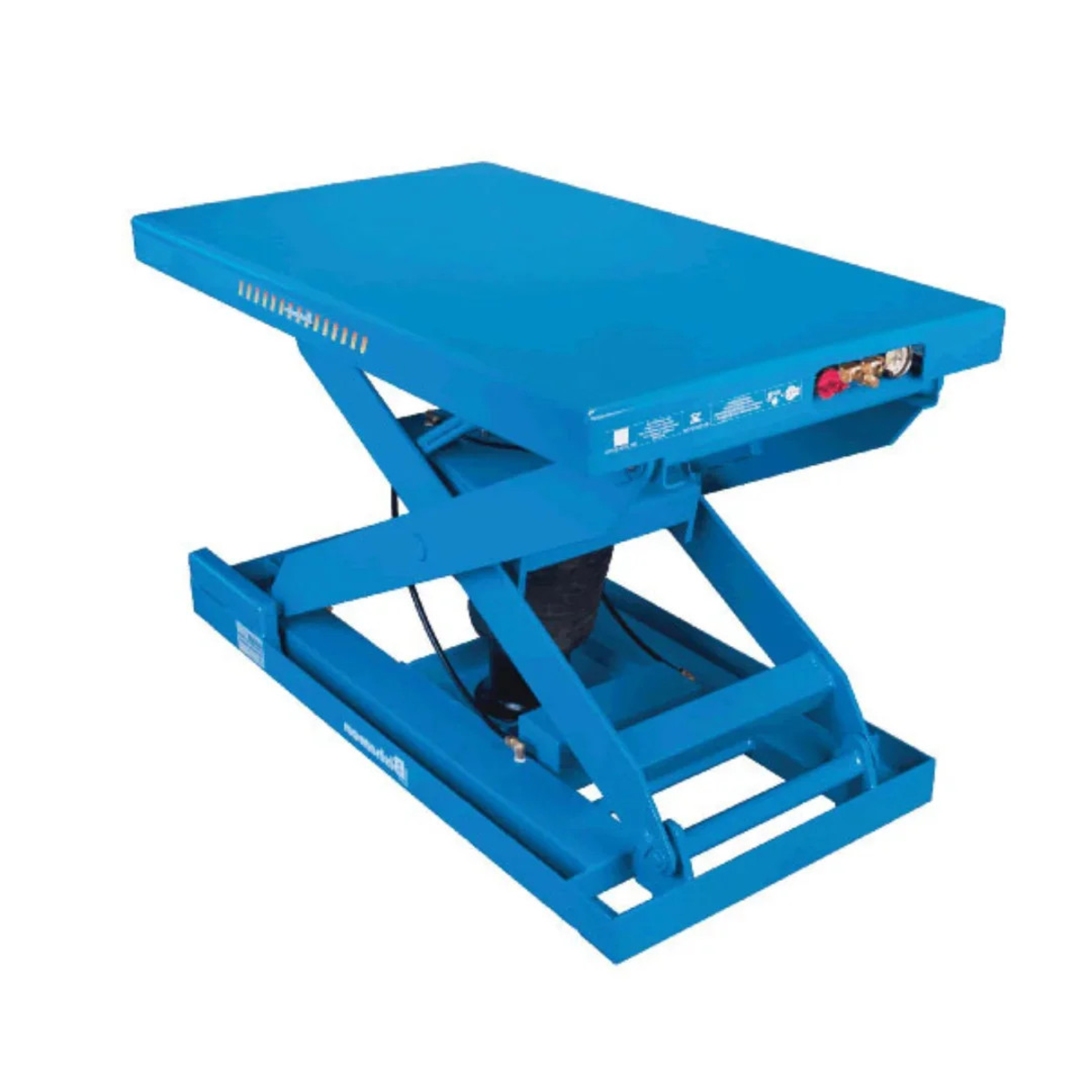

Bishamon EZ Loader-2848® – Rectangular Self-Leveling Pallet Positioner
Rectangular Platform. Automatic Height Adjustment. Maximum Efficiency.
The Bishamon EZ Loader-2848® is a rectangular-platform version of the industry-leading EZ Loader self-leveling pallet positioner. Designed for applications where a round turntable is not ideal, this unit features a 28" x 48" rectangular platform, making it ideal for narrow skids, long boxes, or custom loads that require a more stable rectangular surface.
Like all EZ Loaders, the 2848 model automatically adjusts its height as weight is added or removed, keeping the load at an ergonomic working height to reduce operator fatigue and improve productivity. It operates entirely on shop air, requiring no electrical or hydraulic components, and delivers clean, maintenance-free performance for a variety of environments, including manufacturing, warehousing, and fulfillment centers.
Key Features
- 28" x 48" Rectangular Platform – Accommodates long, narrow, or non-standard pallet loads
- Pneumatic Self-Leveling – The platform automatically adjusts the height to match the load
- No Power Required – Operates using standard 60–100 psi shop air
- Ergonomic Height Control – Minimizes bending and reaching during palletizing/de-palletizing
- Heavy-Duty Steel Frame – Engineered for industrial use
- Low-Maintenance Design – No springs, seals, or hydraulics to service
- Compact, Freestanding Base – Requires no floor lagging or pit installation
- Stable, Non-Rotating Platform – Ideal for linear workflows or fixed-position stations
Benefits
- Perfect for Long or Narrow Loads – Rectangular surface improves stability and alignment
- Boosts Worker Comfort – Automatically keeps work at the right height
- Speeds Up Load Handling – Reduces repositioning and operator strain
- Plug-and-Play Operation – No setup beyond connecting to air supply
- Ideal for Conveyor Integration – Non-rotating rectangular design pairs well with linear workflows
Technical Specifications – EZ Loader-2848
SpecificationDetails
Model EZ Loader-2848
Capacity Range 400 – 4,000 lbs (181 – 1,814 kg)
Platform Size 28 inches x 48 inches (rectangular)
Lowered Height 10.5 inches
Raised Height 30 inches
Lift Type Pneumatic, self-leveling
Power Source Shop air (60–100 psi required)
Turntable Not included (fixed rectangular surface)
Construction Heavy-duty steel, powder-coated
Weight Approx. 500 lbs
Recommended Use Narrow pallet handling, manufacturing, warehousing, order fulfillment, conveyor line integration
