Product Overview

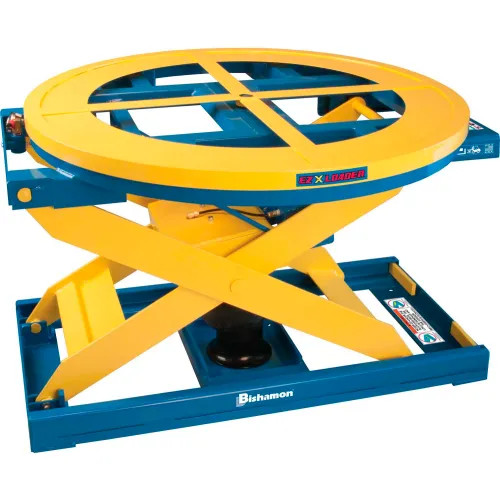

Bishamon EZ X Loader Self-Leveling Pallet Positioner
Smarter Pallet Handling. Safer Workflows. Built to Perform.
The Bishamon EZ X Loader is an automatic, self-leveling pallet positioner that significantly improves worker productivity and safety during pallet loading and unloading. Utilizing pneumatic technology, the EZ X Loader automatically adjusts the platform height as weight is added or removed—keeping loads at a consistent, ergonomic working level without the need for electricity or manual intervention.
Engineered for use in demanding environments such as manufacturing, packaging, warehousing, and distribution, the EZ X Loader also features a turntable top that allows operators to rotate loads effortlessly—eliminating the need for bending, stretching, or walking around pallets. Its rugged, maintenance-free design makes it a dependable solution for reducing fatigue, minimizing injuries, and boosting throughput.
Key Features
- Automatic Self-Leveling: Platform height adjusts automatically based on load weight
- Pneumatic Operation: No electricity required—connect to standard shop air
- Integrated Turntable: 360° rotation allows for easy access to all sides of the pallet
- Heavy-Duty Steel Construction: Provides long service life in industrial environments
- No Maintenance Required: No springs, seals, or hydraulic fluid to maintain
- Stable Base Design: Wide base with no floor lagging required
- Low-Profile Platform: Allows for easy pallet placement using pallet jacks or forklifts
- Adjustable Air Pressure: Allows customization based on varying load weights
- Portable: Easily moved with a forklift for deployment in different work zones
- Safety Features: Includes platform retainers and internal air regulator for controlled operation
Benefits
- Reduces Operator Strain: Keeps loads at an ergonomic height to minimize bending and lifting
- Increases Productivity: Speeds up palletizing and depalletizing tasks
- Improves Safety: Reduces workplace injuries caused by poor lifting posture
- Energy-Efficient: Uses shop air, not electricity or hydraulics
- Plug-and-Play Design: Quick and easy setup in any facility with an air supply
Technical Specifications – EZ X Loader
SpecificationDetails
Model EZ X Loader
Capacity Range 400 – 4,000 lbs (181 – 1,814 kg)
Platform Diameter 43 inches
Lowered Height 10.5 inches
Raised Height 30 inches
Turntable Rotation 360°, manual
Air Pressure Required 60–100 psi (regulated)
Power Source None (pneumatic only)
Finish Durable powder-coated steel
Weight Approx. 470 lbs
Construction Welded steel frame, non-powered
Recommended Use Manufacturing, distribution centers, shipping and receiving, order fulfillment, packaging
