Product Overview

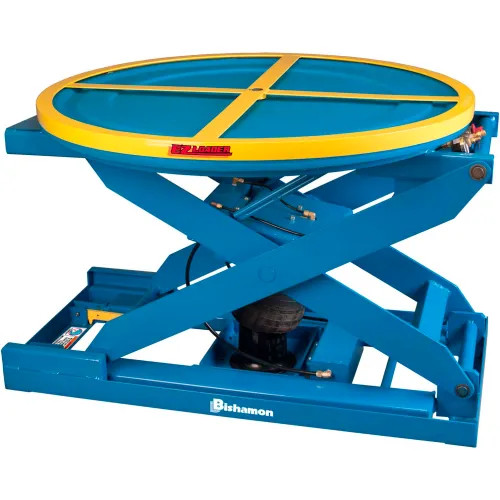

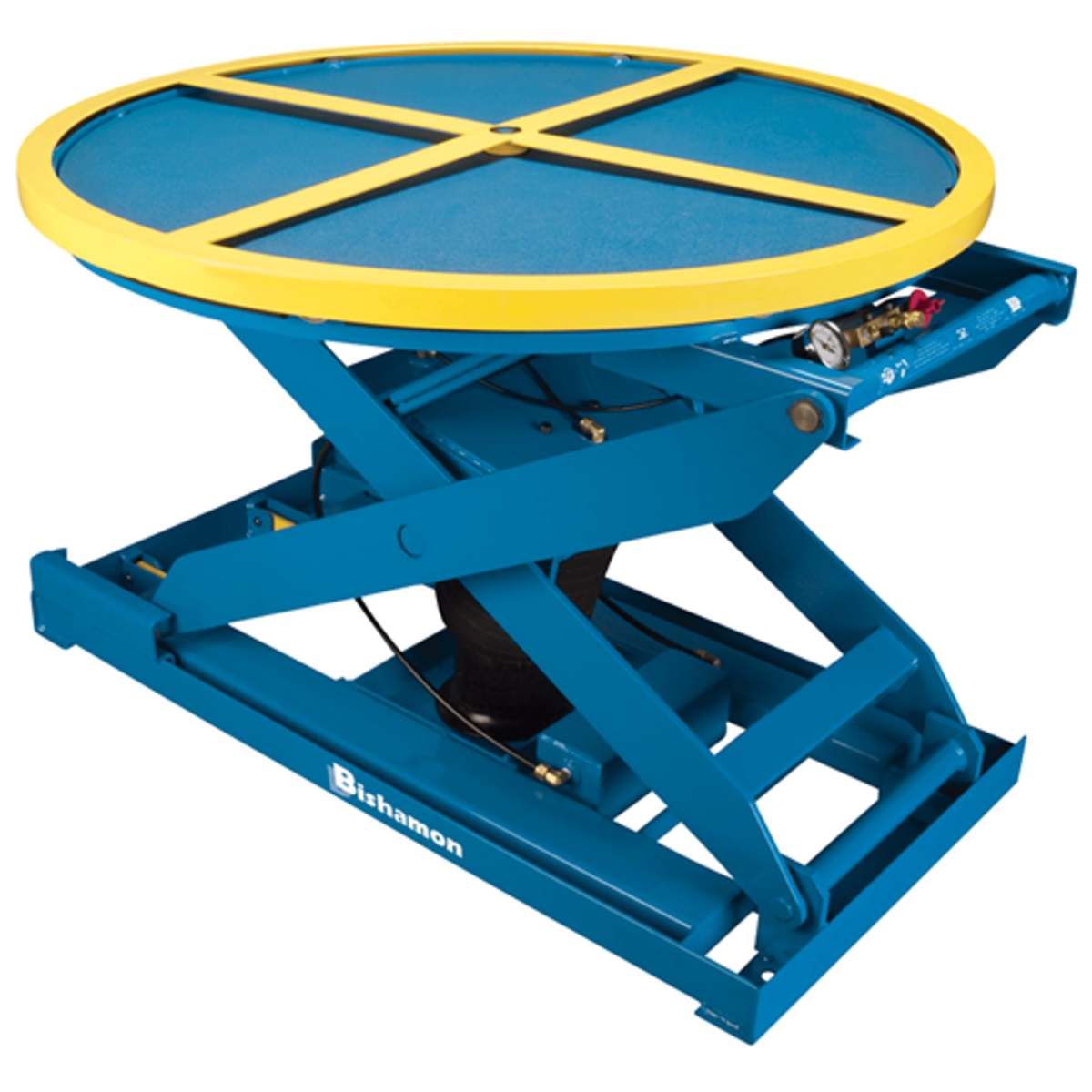

Bishamon EZ Loader® Self-Leveling Pallet Positioner
Automatic Height Adjustment. Increased Productivity. Proven Performance.
The Bishamon EZ Loader® is a premium pneumatic self-leveling pallet positioner designed to improve worker safety and efficiency during loading and unloading operations. It automatically raises and lowers loads to the optimal working height as weight is added or removed, eliminating the need for bending, reaching, or walking around pallets.
The EZ Loader features a built-in rotating turntable that allows full 360° access to the load, enabling faster and safer palletizing. Powered by standard shop air, this lift table operates without the need for electricity or hydraulics, making it maintenance-free and simple to install in virtually any work environment.
Whether in manufacturing, warehousing, packaging, or distribution, the EZ Loader is an essential ergonomic solution for increasing throughput and reducing repetitive motion injuries.
Key Features
- Self-Leveling Platform: Automatically adjusts the height to keep loads at an ergonomic working level
- Pneumatic Operation: Uses standard shop air—no electrical power or hydraulics required
- 360° Rotating Turntable: Smooth rotation improves access and load positioning
- No Maintenance Springs: Operates without mechanical springs or seals
- Adjustable Air Pressure: Easily adjusts to accommodate various load weights
- Stable, Low-Profile Base: Enhances safety without the need for floor anchoring
- Heavy-Duty Steel Construction: Built to withstand demanding industrial applications
- Plug-and-Play Setup: Quick to install and ready to use with shop air
- Compact Footprint: Fits seamlessly into tight workspaces or production lines
Benefits
- Reduces Worker Fatigue: Minimizes lifting, bending, and walking
- Improves Efficiency: Allows continuous access to the pallet without repositioning
- Lowers Injury Risk: Promotes safe lifting posture and workflow
- Adaptable: Ideal for a wide range of pallet sizes and work environments
- Cost-Effective: Maintenance-free operation and long service life
Technical Specifications – EZ Loader
SpecificationDetails
Model EZ Loader
Capacity Range 400 – 4,000 lbs (181 – 1,814 kg)
Platform Diameter 43 inches
Lowered Height 10.5 inches
Raised Height 30 inches
Turntable Rotation 360°, manual
Power Source Pneumatic (air pressure 60–100 psi)
Air Consumption Minimal — regulated via onboard valve
Construction Heavy-duty powder-coated steel
Weight Approx. 470 lbs
Finish Durable blue powder coat
Applications Warehouses, packaging lines, production areas, shipping & receiving, order picking
