Product Overview

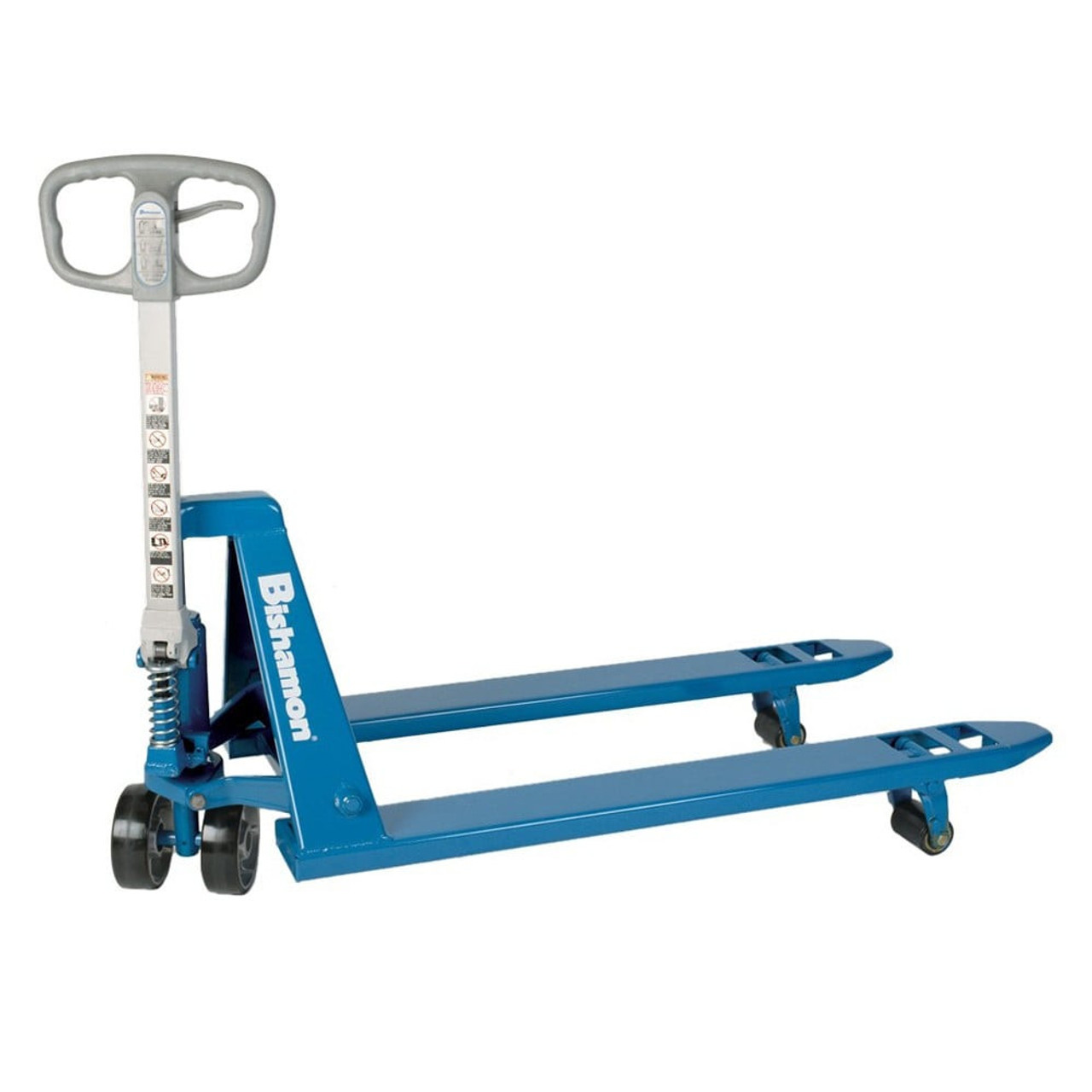

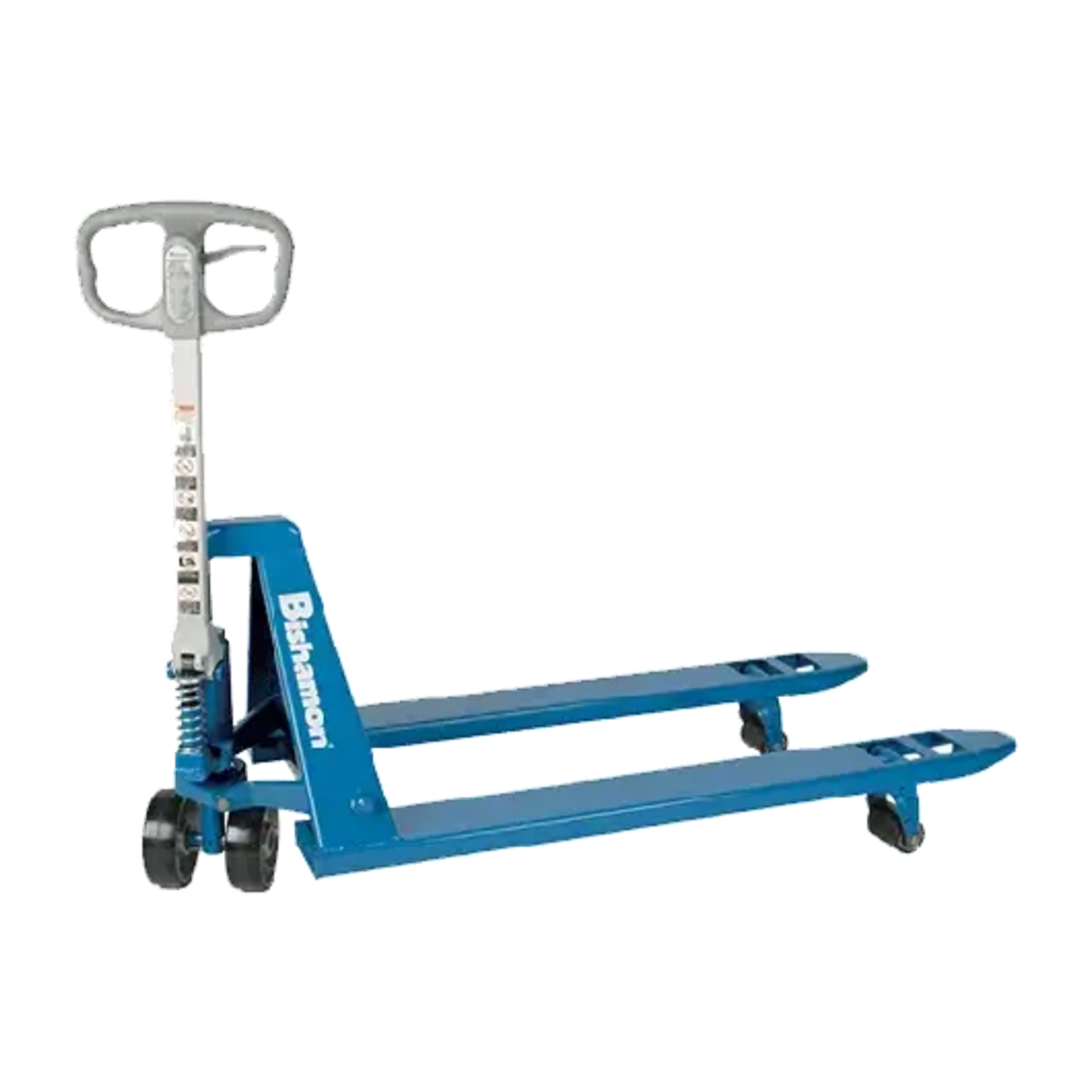

Bishamon BS-65A Blue Label Heavy-Duty Pallet Truck
Maximum Strength. Industrial Grade. Built to Endure.
The Bishamon BS-65A is the heavy-duty flagship of the Blue Label Series, built to handle extra-heavy palletized loads with unmatched strength, precision, and longevity. With a robust 6,500 lb capacity, reinforced construction, and the same user-friendly features as the rest of the Blue Label line, the BS-65A delivers high-performance load handling in demanding industrial settings like manufacturing plants, distribution centers, and freight operations.
Equipped with a fully rebuildable hydraulic pump and frame, the BS-65A is designed for years of reliable use and reduced lifetime cost—making it the ideal solution for operations where durability and lifting power are non-negotiable.
Standard Features
- Heavy-duty welded steel frame supports high-capacity loads
- Ergonomic 3-position hand lever (Lift / Neutral / Lower) operable from any angle
- 210° rotating handle enables controlled maneuvering under load
- Low-friction thrust bearings in the pump and steering system for smoother operation
- Heavy-duty polyurethane wheels and rollers with sealed ball bearings for longevity
- One-piece formed forks provide maximum strength and rigidity
- Steel entry/exit slides protect forks and guide them into pallets
- Solid steel push rods and continuous welds add structural integrity
- Hydraulic pump and chassis are fully rebuildable for longer service life
- A durable powder-coated enamel finish protects against corrosion and wear
Key Benefits
- High Capacity: 6,500 lb lifting capacity for demanding industrial tasks
- Smooth Handling: Premium bearings and wheels reduce operator effort even under heavy loads
- Ergonomic Operation: Designed for safety and ease of use
- Built to Last: Fully serviceable and rebuildable design lowers total cost of ownership
- Ideal for Tough Environments: Perfect for loading docks, heavy manufacturing, and freight handling
Technical Specifications – BS-65A
SpecificationDetails
Model BS-65A
Capacity 6,500 lbs (2,950 kg)
Fork Width (Overall) 27 inches
Fork Length 48 inches
Lowered Fork Height 2.9 inches
Raised Fork Height 7.8 inches
Steer Wheel Diameter 7 inches
Load Wheel Diameter 3 inches
Pump Type Heavy-duty hydraulic pump
Handle Ergonomic, three-position lever
Finish Powder-coated baked enamel (Blue)
Weight Approx. 200 lbs
Construction Reinforced welded steel, rebuildable
Recommended Use Industrial plants, freight terminals, heavy-duty warehousing, shipping docks
