Product Overview

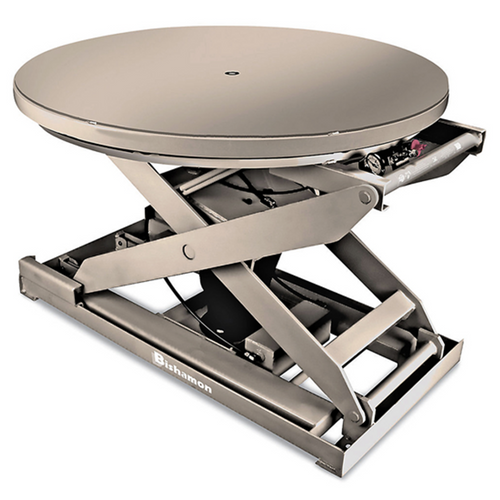

Bishamon EZ Loader-E® – Electric Self-Leveling Pallet Positioner
Precision Control. Powered Performance. Ergonomic Efficiency.

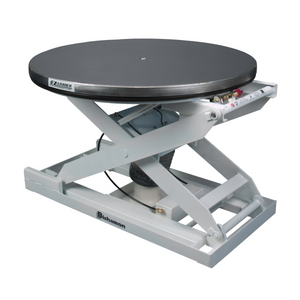

The Bishamon EZ Loader-E® is an electric-powered, self-leveling pallet positioner engineered to provide enhanced control, ergonomic efficiency, and reliable load handling. FDA-compliant powder-coated finish with a stainless solid round top. Designed for operations requiring greater consistency or lacking a pneumatic air supply, the EZ Loader-E uses a powered hydraulic system to raise and lower loads with precision at the push of a button.
Built on the trusted EZ Loader platform, the EZ Loader-E features a 360° rotating top platform, an adjustable work height range, and a robust steel structure capable of handling demanding material handling tasks. With electric lift actuation, this model is ideal for facilities prioritizing plug-and-play operations without the complexity of air systems.
Perfect for manufacturing, order fulfillment, packaging, and warehouse applications, the EZ Loader-E enhances worker safety, reduces fatigue, and improves productivity by keeping palletized loads at an optimal ergonomic height during handling.
Key Features
- Electric Lift Operation: Smooth and precise vertical positioning via push-button control
- Self-Leveling Platform: Automatically maintains ergonomic height as loads change (sensor-controlled)
- 360° Rotating Top: Improves access and reduces strain during loading/unloading
- No Air Required: Ideal for facilities without shop air systems
- Heavy-Duty Construction: All-steel frame with powder-coated finish for durability
- Plug-and-Play Setup: Easy to install and relocate
- Compact Design: Small footprint fits into most workstations
- Adjustable Load Control: Set lifting response for various load weights and pallet types
Benefits
- Reduces Manual Strain: Keeps pallet loads at optimal working height
- Boosts Productivity: Allows for faster and more ergonomic loading/unloading
- Minimizes Downtime: No need for external air supply or manual adjustment
- Increases Safety: Reduces risk of repetitive motion injuries
- Excellent ROI: Long lifespan with minimal maintenance
Technical Specifications – EZ Loader-E
SpecificationDetails
Model EZ Loader-E
Capacity Range 400 – 4,000 lbs (181 – 1,814 kg)
Platform Diameter 43 inches
Lowered Height 10.5 inches
Raised Height 30 inches
Lift Type Electric Hydraulic
Turntable Manual, 360° rotation
Control Push-button pendant
Power Source 115V AC, single-phase
Construction Heavy-duty steel, powder-coated
Weight Approx. 500 lbs
Applications Warehousing, packaging lines, assembly, shipping/receiving, production work cells
