Product Overview

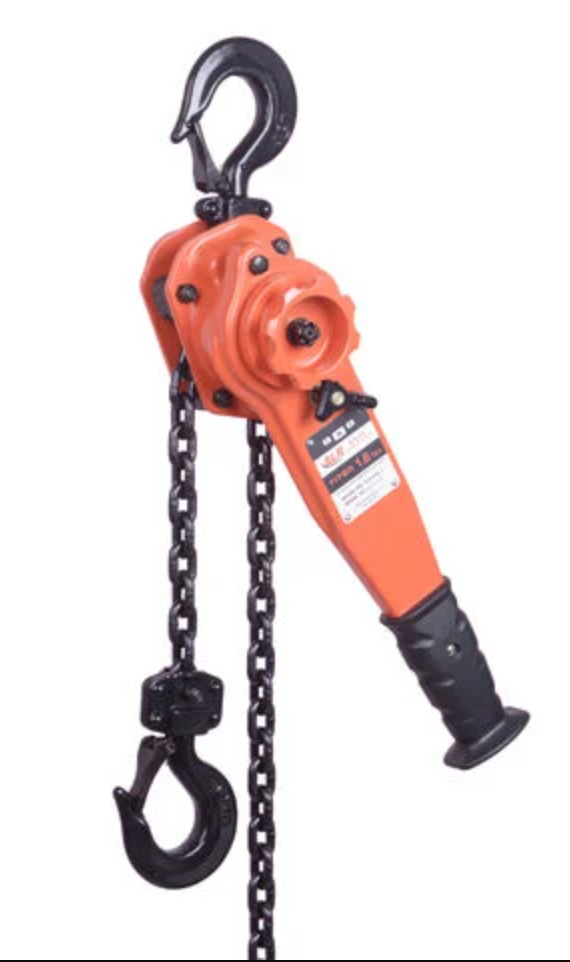

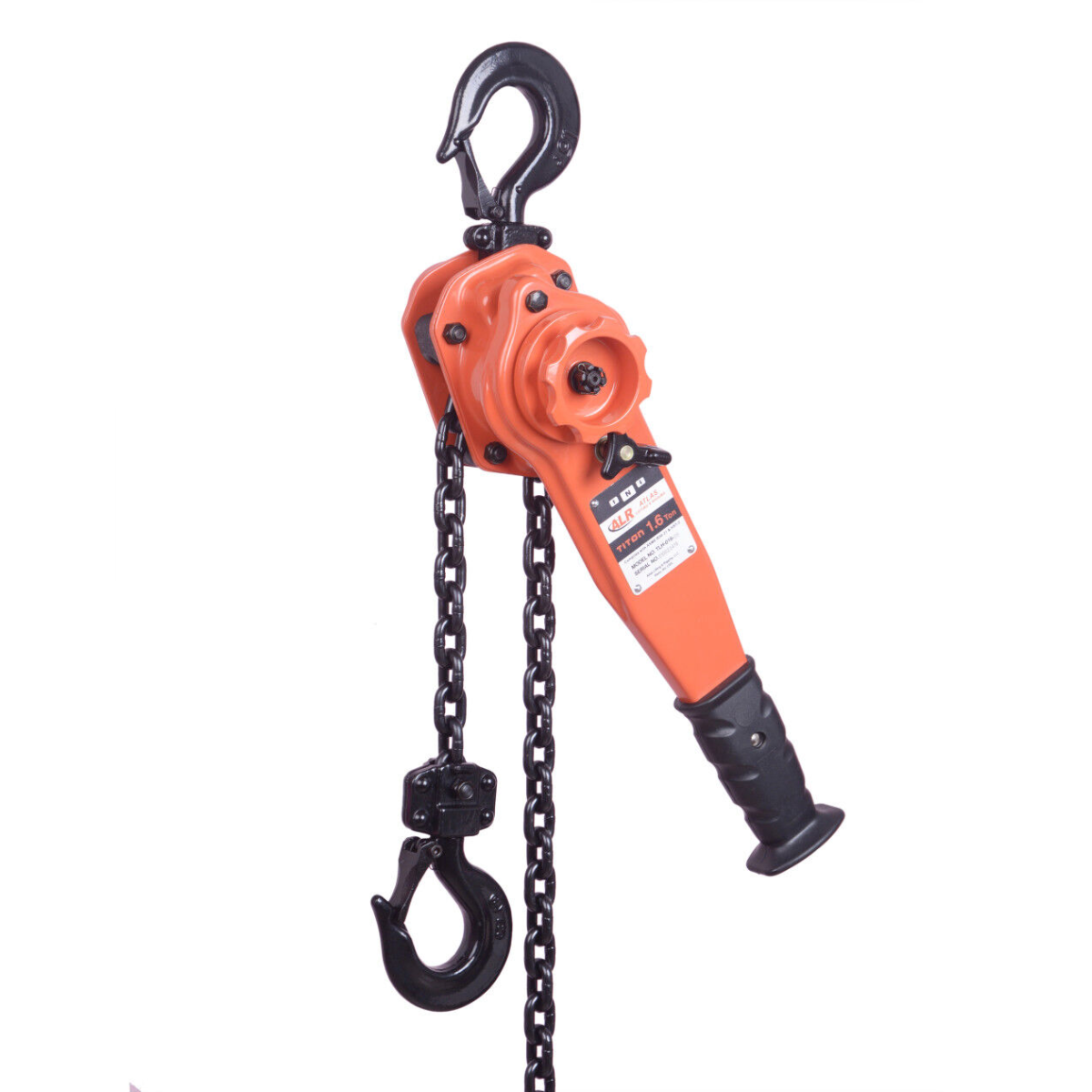

Atlas Lifting & Rigging Titon 1.6 Ton Lever Hoist – 10 Ft. Lift
The Atlas TLH-016-10 is a 1.6-ton lever hoist designed to deliver dependable lifting and pulling performance in a wide range of settings. Featuring a rugged steel body and precision-engineered internal components, this hoist is built to withstand harsh job site conditions while maintaining consistent operation.
Equipped with a 10-foot lift, this model offers more reach for applications that require greater vertical movement. Its compact, portable design and 360-degree rotating handle make it easy to operate in confined areas. The TLH-016-10 includes a mechanical load brake for secure load control, and the high-grade alloy steel chain ensures strength and longevity under heavy use.
Specifications:
- Model: TLH-016-10
- Capacity: 1.6 Ton (3,520 lbs)
- Lift Height: 10 Feet
- Load Chain Material: Grade 80 Alloy Steel
- Chain Diameter: 7.1 mm
- Number of Load Chain Falls: 1
- Handle Effort at Capacity: Approx. 50 lbs
- Hooks: Forged alloy steel, swivel type with safety latches
- Brake System: Weston-style mechanical load brake
- Body: Steel construction with corrosion-resistant finish
- Net Weight: Approx. 35 lbs
- Compliance: Meets ASME B30.21 and OSHA standards
This lever hoist is ideal for demanding lifting applications where strength, durability, and control are essential. Suitable for heavy-duty use in maintenance, rigging, utilities, and material handling.
