Product Overview

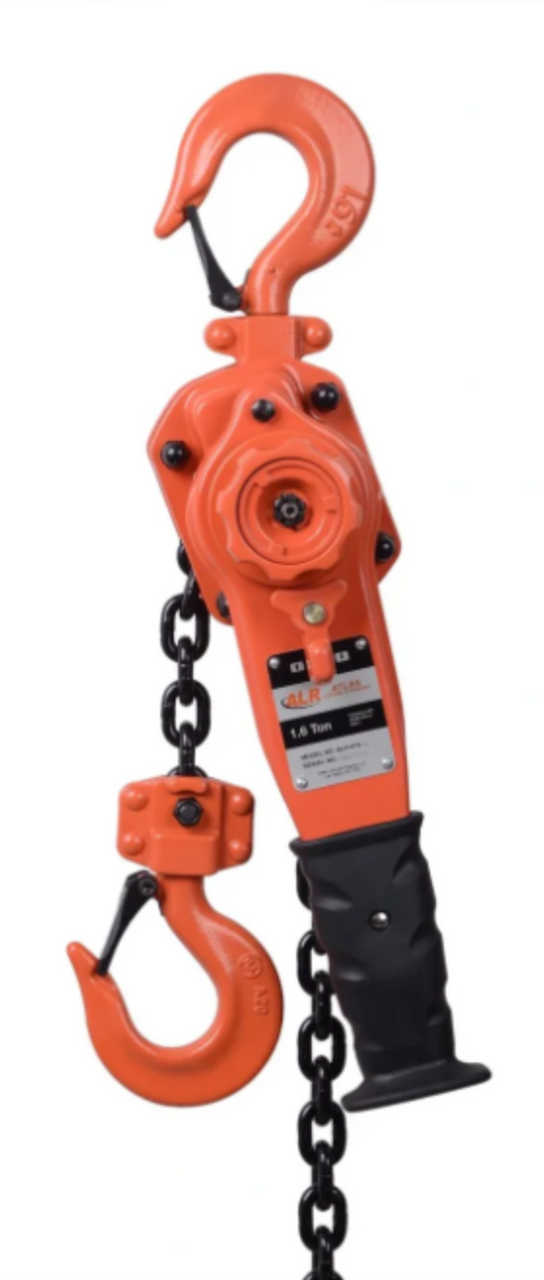

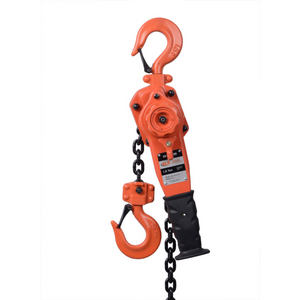

Atlas Lifting and Rigging ALH-016-05 Manual Lever Hoist
The ALH-016-05 offers robust lifting power in a compact design, with a 1.5-ton (3,000 lbs) capacity and a 5-foot lift height. This lever hoist is ideal for precise, short-lift applications where dependable strength and control are essential.
Built for industry with a rugged steel frame and a heat-treated alloy steel load chain, the hoist is built to endure heavy-duty use in industrial, construction, and maintenance environments. The ergonomic lever handle delivers smooth, low-effort operation, while forged swivel hooks with safety latches ensure secure rigging and easy attachment.
Key Features:
- 1.5-Ton Load Capacity: Suitable for medium-duty lifting, pulling, and tensioning tasks.
- 5-Foot Lift Height: Perfect for short-lift applications requiring precise control.
- Durable Steel Housing: Provides strength and resilience in tough job site conditions.
- Heat-Treated Alloy Steel Chain: Ensures long-lasting durability and wear resistance.
- Comfortable Lever Handle: Designed for smooth, controlled operation.
- Three-Mode Selector: Easily switch between lift, lower, and free-chain modes.

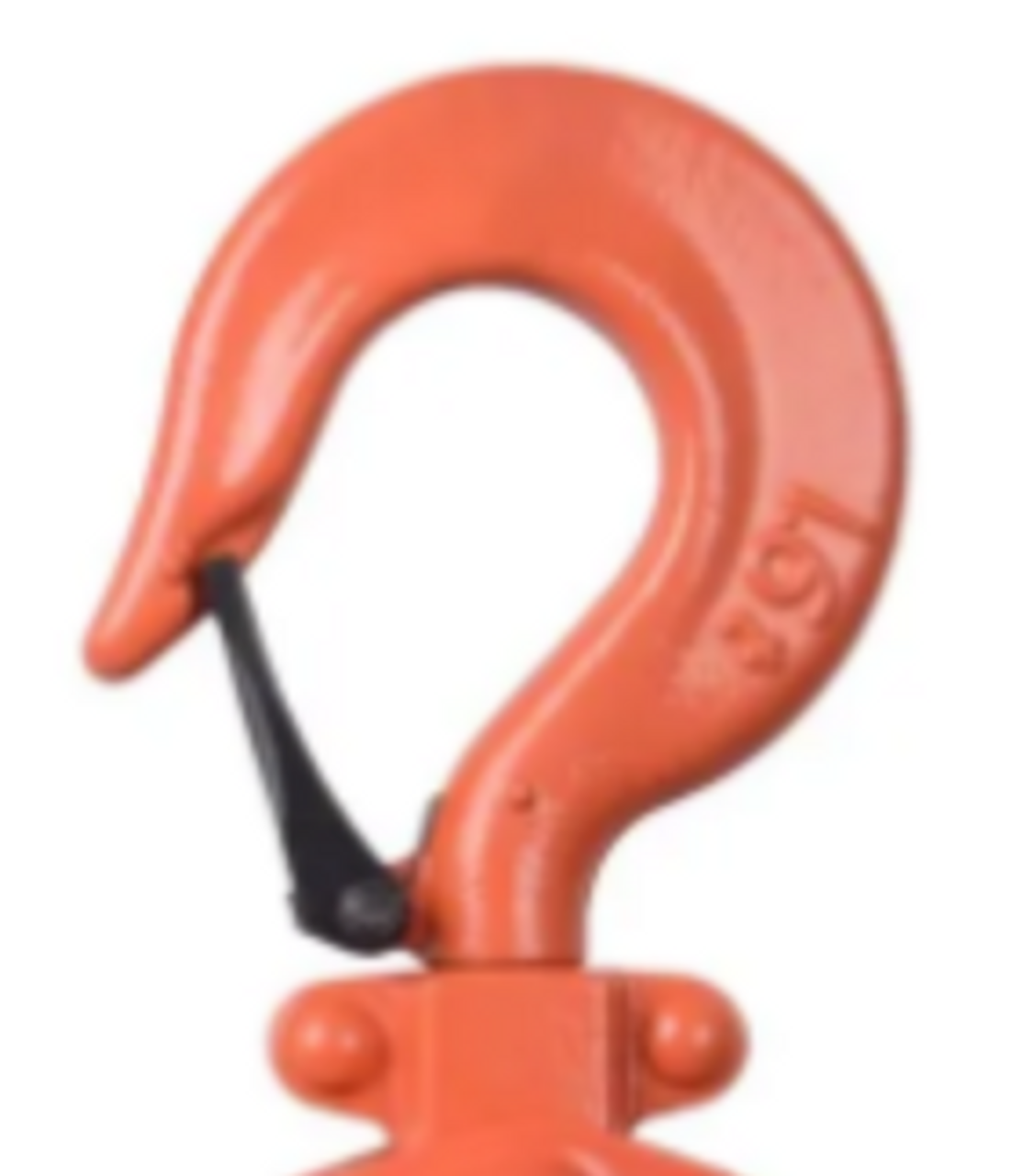

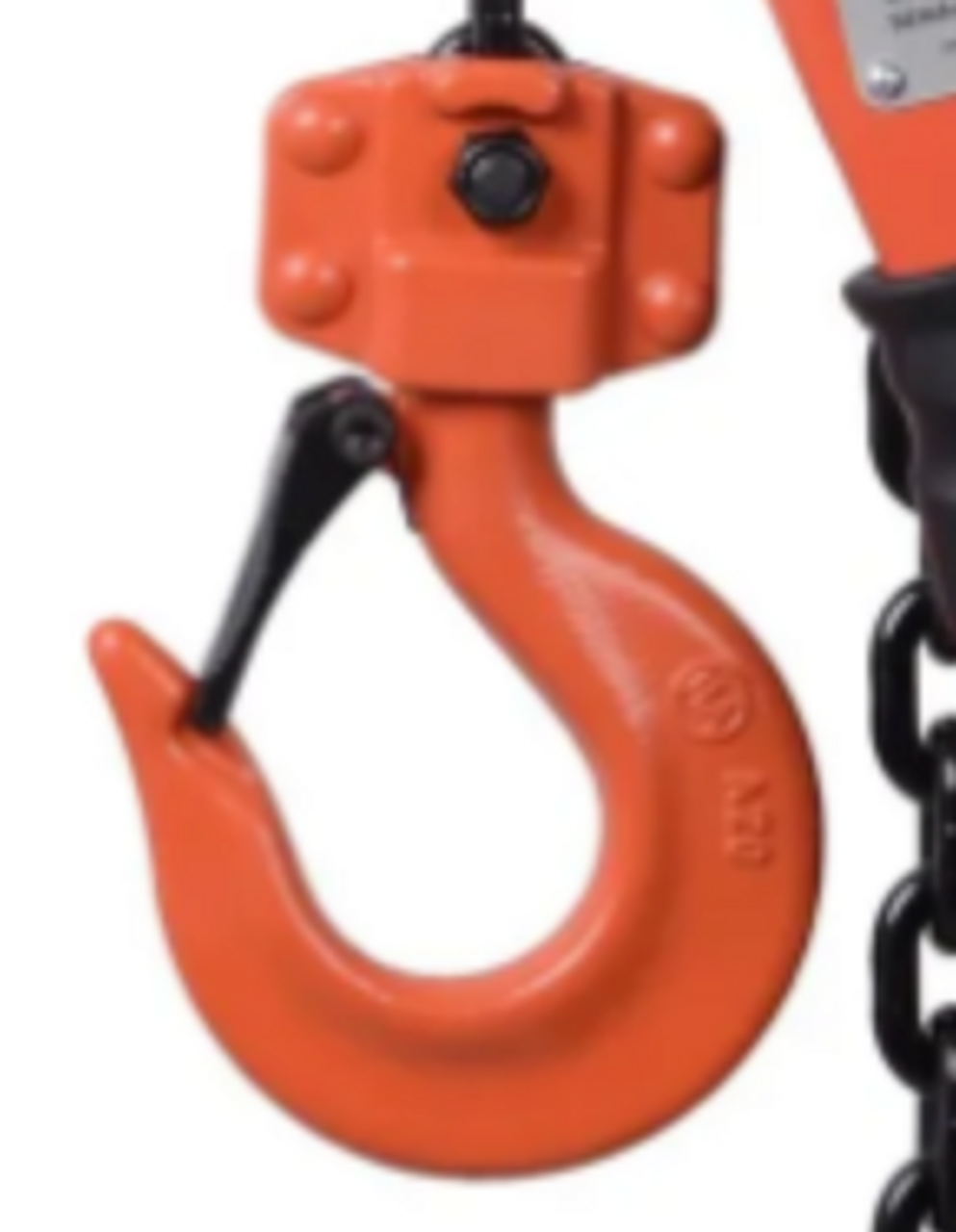

- Forged Swivel Hooks with Safety Latches: Offer versatile and secure rigging options.
Specifications:
- Model: ALH-016-05
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 5 ft (1.5 m)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 24 lbs (10.9 kg)
The Atlas ALH-016-05 lever hoist combines a compact size with a powerful lifting capacity, making it a reliable tool for professionals who need strong and precise lifting in tight spaces.
