Product Overview

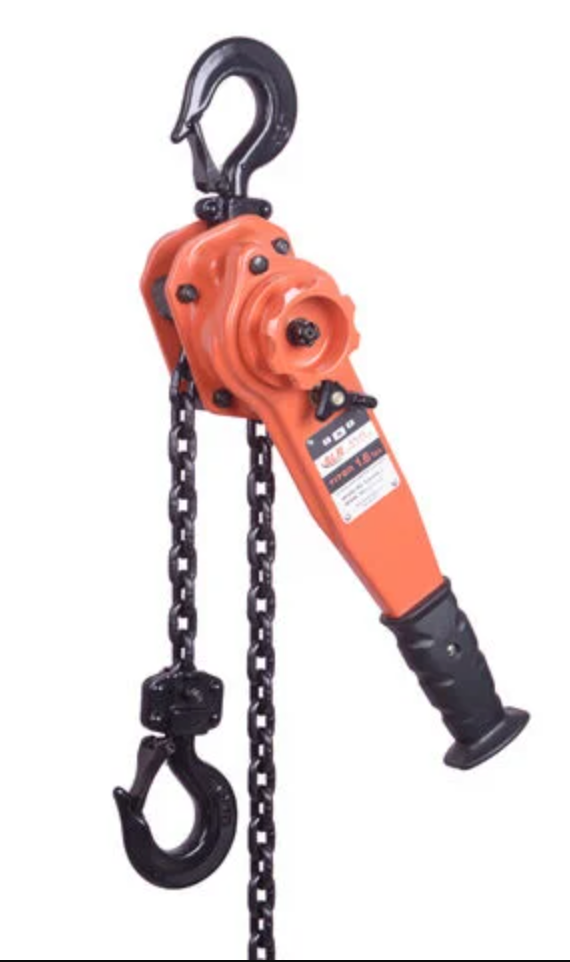

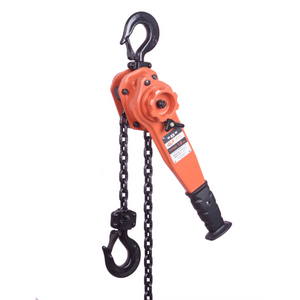

Atlas Lifting & Rigging Titon 1.6 Ton Lever Hoist – 15 Ft. Lift
The Atlas TLH-016-15 lever hoist is engineered for reliability and performance in rigorous lifting and pulling applications. With a lifting capacity of 1.6 tons and an extended 15-foot lift height, this model is ideal for jobs requiring additional reach without sacrificing strength or control.
Built for industry with a solid steel frame and a corrosion-resistant finish, the TLH-016-15 is made to endure harsh working conditions. Its Grade 80 alloy steel load chain provides excellent strength and wear resistance, while the forged swivel hooks with safety latches ensure secure and safe attachment. A dependable mechanical load brake enables smooth and precise load handling. The ergonomic lever design and compact size allow for easy use in tight spaces.
Specifications:
- Model: TLH-016-15
- Capacity: 1.6 Ton (3,520 lbs)
- Lift Height: 15 Feet
- Load Chain: Grade 80 Alloy Steel
- Chain Diameter: 7.1 mm
- Number of Falls: 1
- Hand Pull to Lift Full Load: Approx. 50 lbs
- Hooks: Forged alloy steel, swivel type with safety latches
- Brake System: Weston-style mechanical load brake
- Housing: All-steel with powder-coated finish
- Net Weight: Approx. 43 lbs
- Compliance: Meets ASME B30.21 and OSHA standards
The TLH-016-15 is a dependable and rugged solution for professionals who need longer lift reach combined with reliable lifting power, whether in field operations or workshop settings.
