Product Overview

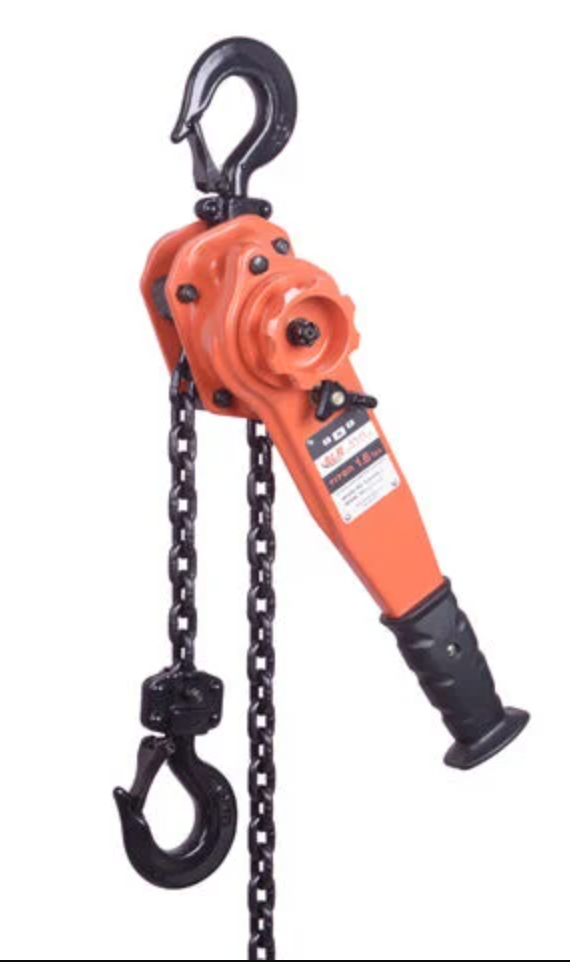

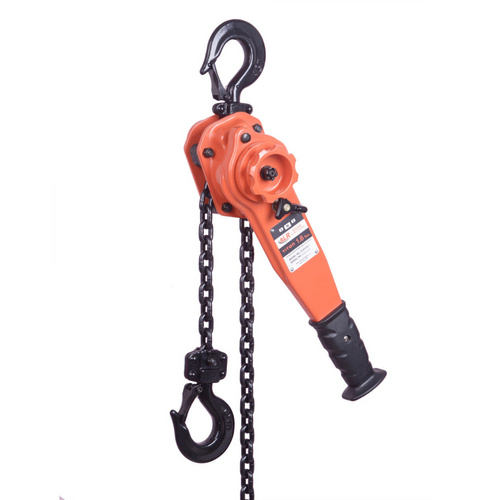

Atlas Lifting & Rigging Titon 1.6 Ton Lever Hoist – 20 Ft. Lift
The Atlas TLH-016-20 lever hoist is built for heavy-duty lifting and pulling tasks in industrial, construction, and maintenance environments. With a rated capacity of 1.6 tons and a 20-foot lift height, this hoist provides extended reach for elevated rigging operations without compromising control or safety. It is engineered for durability, precision, and simplicity, making it a necessary tool for professionals handling demanding load requirements.
Key Features:
- Heavy-Duty Capacity:
- Supports up to 1.6 tons (3,520 lbs), suitable for mid-range load handling in a wide variety of applications.
- Extended Lift Range:
- 20-foot lift height accommodates taller structures and deeper pull requirements.
- Durable Load Chain:
- Equipped with high-strength Grade 80 alloy steel chain for long-term wear resistance and load security.
- Reliable Load Control:
- Features a Weston-style mechanical load brake for smooth, controlled lifting and lowering under load.
- Safe and Secure Hooking:
- Forged alloy steel swivel hooks with safety latches enable flexible load positioning and enhanced safety during operation.
- Compact, Ergonomic Design:
- Slim profile and 360° rotating lever handle for ease of use in confined or elevated workspaces.
- Corrosion-Resistant Construction:
- All-steel housing with a durable, powder-coated finish for protection against harsh environments.
Technical Specifications:
- Model: TLH-016-20
- Rated Capacity: 1.6 Ton (3,520 lbs)
- Standard Lift Height: 20 Feet
- Load Chain Material: Grade 80 Alloy Steel
- Chain Diameter: 7.1 mm
- Number of Chain Falls: 1
- Hand Pull to Lift Rated Load: Approx. 50 lbs
- Hook Type: Swivel hooks with safety latches (forged steel)
- Brake System: Weston-style mechanical load brake
- Housing: All-steel construction with corrosion-resistant finish
- Net Weight: Approx. 51 lbs
- Compliance: Meets or exceeds ASME B30.21 and OSHA standards
