Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift
Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift
Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift
Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift

Write a Review
$784.30
$441.00
(You save $343.30 )
SKU: ALH-016-20
Availability: Subject to Availability
Weight: 29.54 LBS
Width: 13.78 (in)
Height: 5.32 (in)
Depth: 7.01 (in)
Shipping: Calculated at Checkout
Capacity: 2,500 - 4,999 lbs
Lift: 20 ft
Adding to cart… The item has been added
Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift

Atlas Lifting and Rigging Lever Hoist, 1.6 Ton, 3,300 lb, 20 ft Lift

$784.30
$441.00
(You save $343.30 )
Description

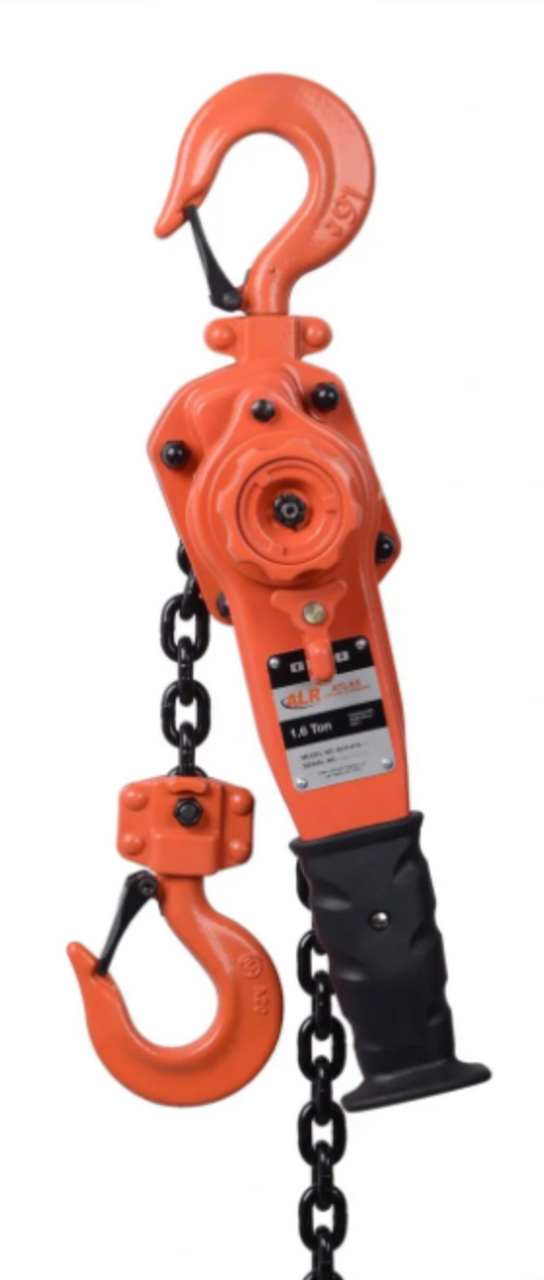

Atlas Lifting and Rigging ALH-016-20 Manual Lever Hoist

The ALH-016-20 is designed to deliver reliable lifting power with exceptional reach. With a 1.5-ton (3,000 lbs) capacity and an extended 20-foot lift height, this manual lever hoist is ideal for overhead rigging, high-clearance applications, and jobs that require longer chain lengths.

Built for industry with a steel frame and heat-treated alloy steel load chain. This hoist offers consistent performance and long service life, even in demanding industrial or construction environments. The compact lever design provides smooth, controlled operation while minimizing operator fatigue.

Key Features:

  • 1.5-Ton Load Capacity: Handles a broad range of lifting, pulling, and tensioning tasks.
  • 20-Foot Lift Height: Extended vertical reach for tall or elevated rigging applications.

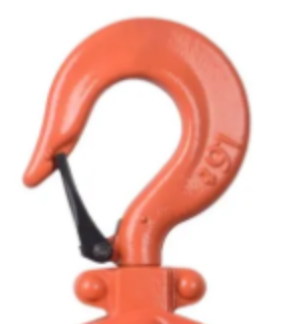

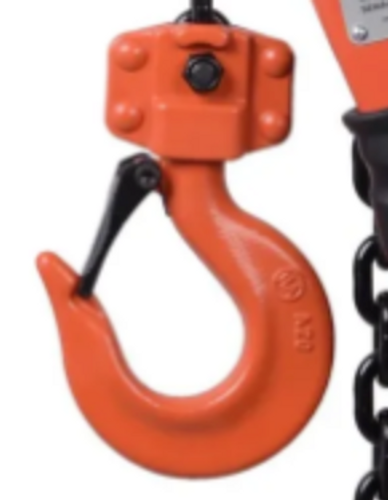

  • Forged Swivel Hooks: Equipped with safety latches for secure, flexible load handling.
  • Durable Steel Construction: Engineered for industrial use in tough environments.
  • Heat-Treated Alloy Steel Chain: Provides strength, wear resistance, and long-term durability.
  • Three-Mode Selector: Allows for fast switching between lifting, lowering, and free-chaining.
  • Ergonomic Lever Handle: Designed for ease of use and precise manual control.

Specifications:

  • Model: ALH-016-20
  • Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
  • Lift Height: 20 ft (6.1 m)
  • Hook Type: Forged swivel hooks with safety latches
  • Load Chain: Heat-treated alloy steel
  • Overload Protection: Not included
  • Lever Handle Length: Approx. 14 inches
  • Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 43 lbs (19.5 kg)

The Atlas ALH-016-20 offers reliable performance and generous lift height, making it an excellent solution for professionals needing extended reach in elevated or industrial lifting scenarios.

Warranty Information
All products sold by Atlas Lifting & Rigging are warranted to be free of defects in material and workmanship from the date of shipment, with a standard limited warranty of 2 years that ALR extends by an additional 1 year (for a total of 3 years) if the product is registered through www.alrlift.com, while accessories carry a limited warranty of one year from the date of receipt; this warranty covers only the initial purchaser from the date of delivery and applies to defects in workmanship or materials subject to stated limitations, but does not cover failures due to misuse, abuse, negligence, accidents, normal wear-and-tear, improper repair, alterations, or lack of maintenance, and customers needing repair or service should contact ALR Technical Service at 1-833-ALR-LIFT, available 8AM to 5PM Monday through Friday.
