Product Overview

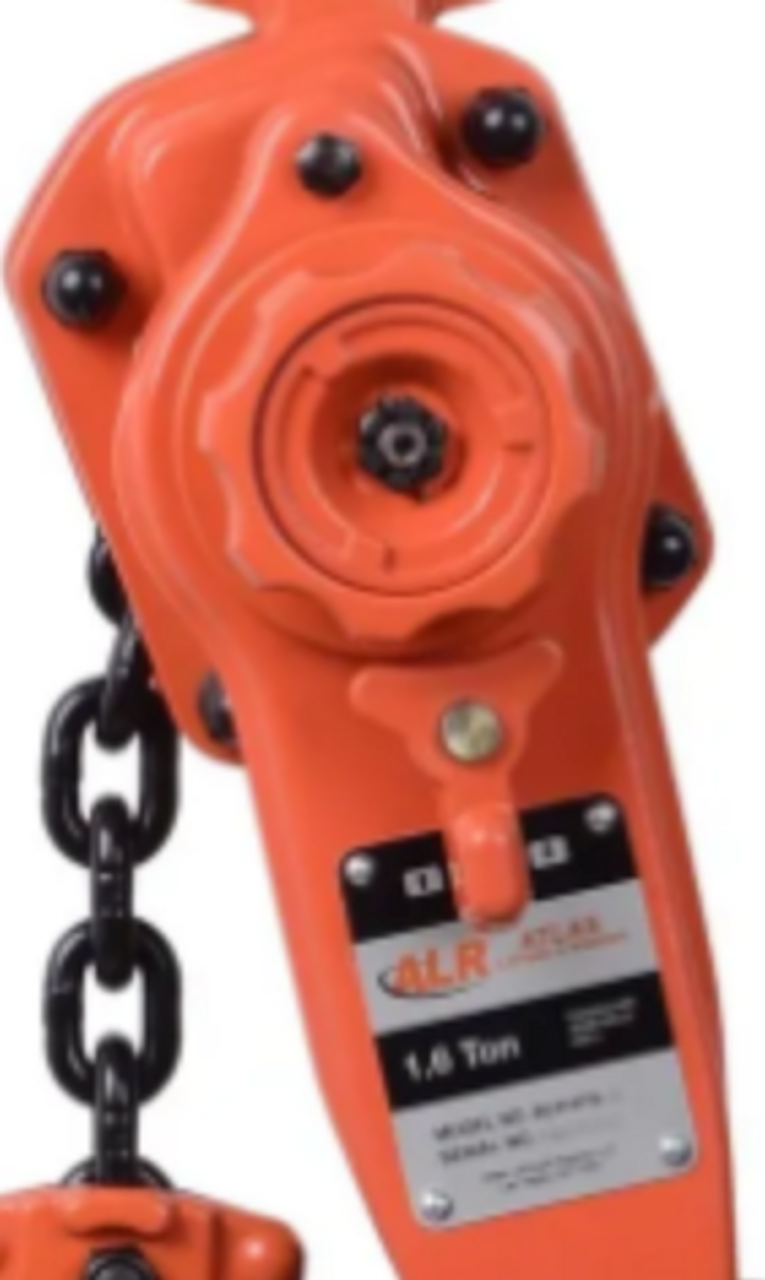

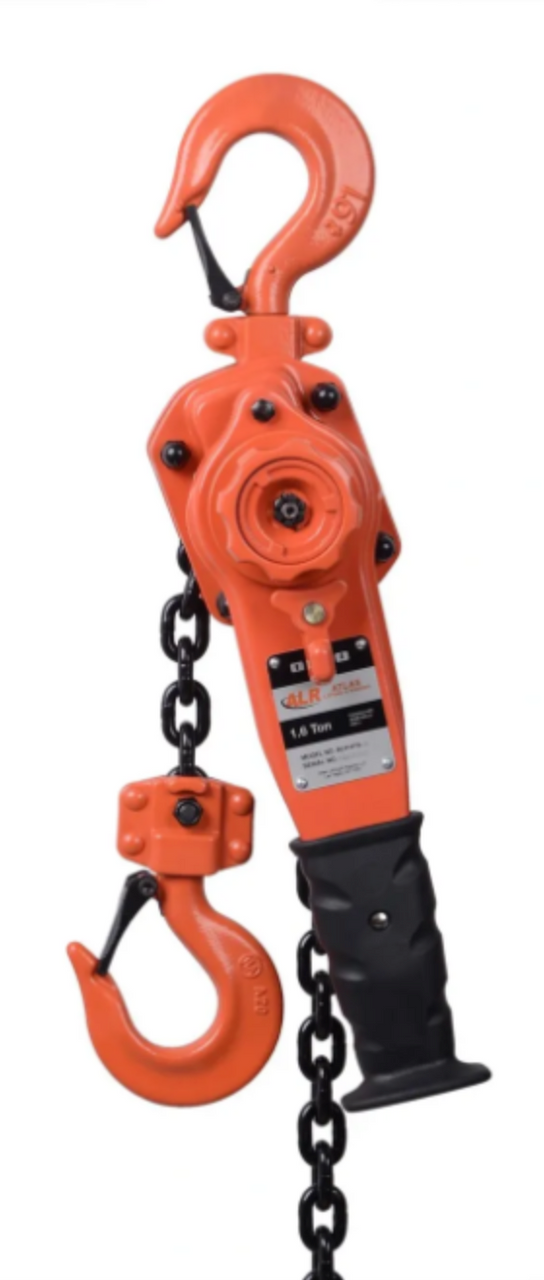

Atlas Lifting and Rigging ALH-016-15 Manual Lever Hoist
The ALH-016-15 delivers extended lifting reach with a 1.5-ton (3,000 lbs) capacity and a 15-foot lift height, making it a top choice for taller lifting applications across industrial, construction, and rigging environments. Built with a durable steel frame and high-strength components, this hoist is designed to perform reliably in demanding settings.
Its heat-treated alloy steel chain ensures long-lasting service under repeated loads, while the forged swivel hooks with safety latches provide flexible and secure rigging. The compact and ergonomic lever design promotes smooth, low-effort operation even in confined or overhead conditions.
Key Features:
- 1.5-Ton Load Capacity: Suitable for a broad range of mid-duty lifting and tensioning tasks.
- 15-Foot Lift Height: Designed for jobs requiring extended vertical reach or higher elevation setups.
- Rugged Steel Construction: Withstands heavy use in industrial and job site conditions.
- Heat-Treated Alloy Steel Load Chain: Resists wear and delivers reliable strength.
- Swivel Hooks with Safety Latches: Provide secure, adaptable attachment in a variety of lifting scenarios.
- Three-Mode Selector Switch: Quick shifting between lifting, lowering, and free-chain operation.
- Ergonomic Lever Handle: Compact and easy to operate for user comfort and control.
Specifications:
- Model: ALH-016-15
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 15 ft (4.6 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 35 lbs (15.9 kg)
The Atlas ALH-016-15 is designed for professionals who require a dependable lever hoist with a longer reach and rugged performance for extended lifting tasks.
