Product Overview

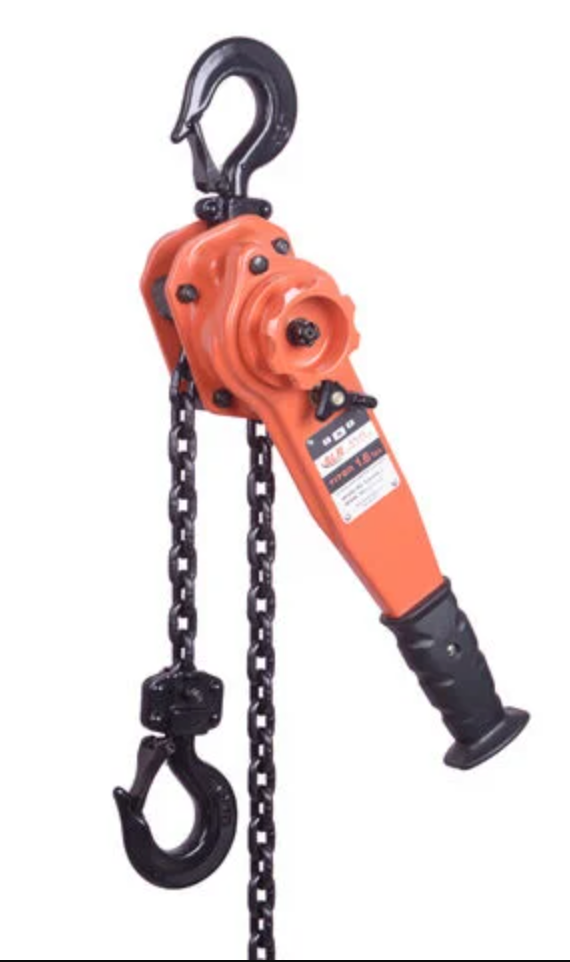

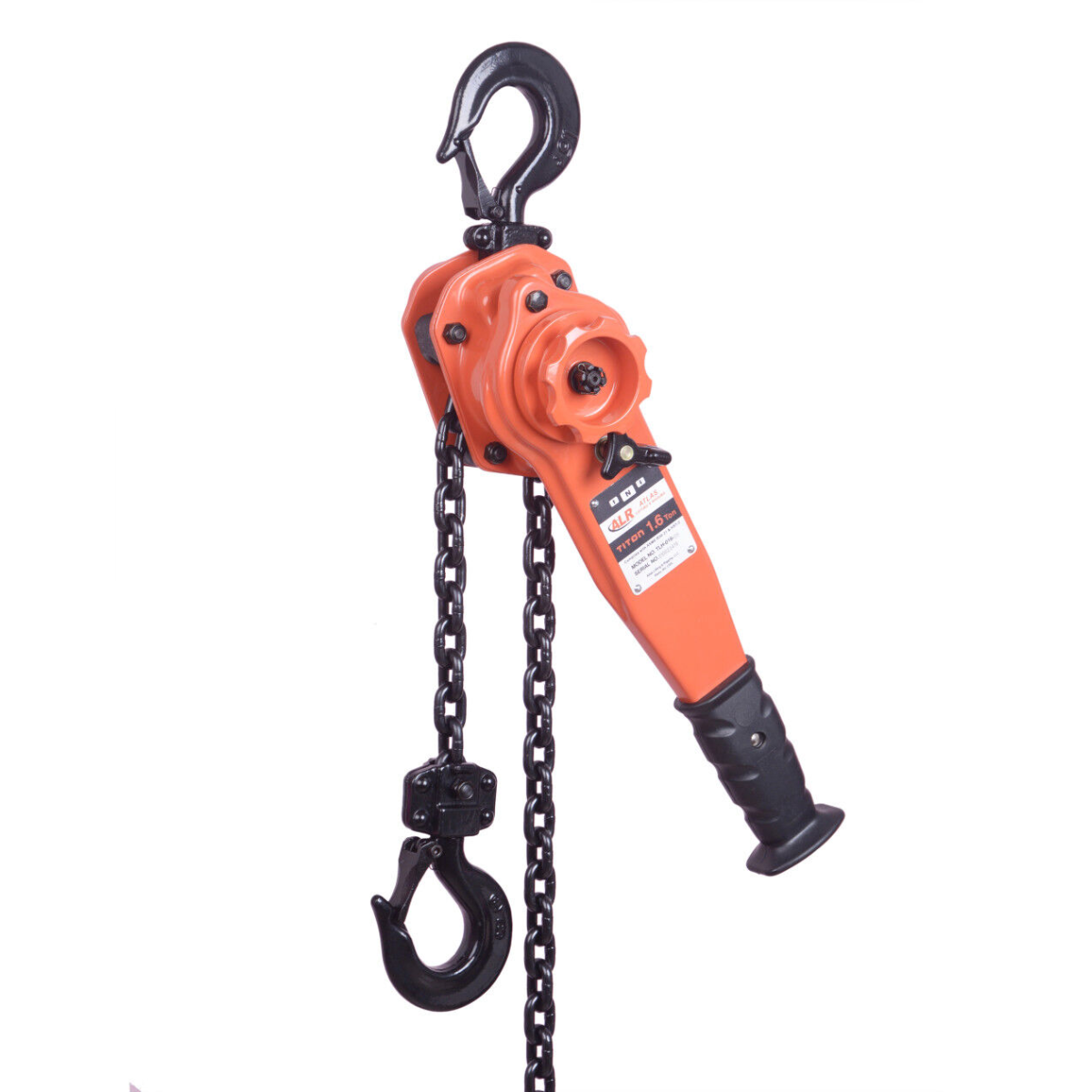

Atlas Lifting & Rigging Titon 1.6 Ton Lever Hoist – 10 Ft. Lift
The Atlas TLH-016-10 lever hoist is built for heavy-duty lifting and pulling tasks where strength and control are critical. With a rated capacity of 1.6 tons and a standard 10-foot lift, this hoist is well-suited for industrial, construction, and rigging environments requiring extended reach and dependable performance.
Constructed with a durable steel frame and fitted with a high-strength Grade 80 alloy steel load chain, the TLH-016-10 offers reliable operation and long service life. The hoist features a mechanical load brake for precise load handling and forged swivel hooks with safety latches for secure attachment. Its compact design and sleek handle allow for smooth, controlled operation in confined or overhead spaces.
Specifications:

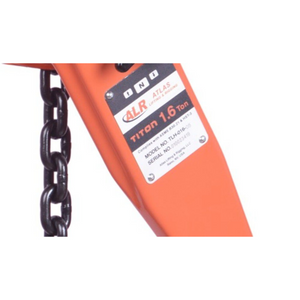

- Model: TLH-016-10
- Capacity: 1.6 Ton (3,520 lbs)
- Lift Height: 10 Feet
- Load Chain: Grade 80 Alloy Steel
- Chain Diameter: 7.1 mm
- Number of Falls: 1
- Hand Pull to Lift Full Load: Approx. 50 lbs
- Hooks: Forged steel, swivel type with safety latches
- Brake Type: Weston-style mechanical load brake
- Housing: All-steel construction with corrosion-resistant finish
- Net Weight: Approx. 35 lbs
- Standards: Complies with ASME B30.21 and OSHA regulations
Designed for demanding applications, the TLH-016-10 combines strength, safety, and ease of use to meet the needs of professionals in lifting and rigging operations.
