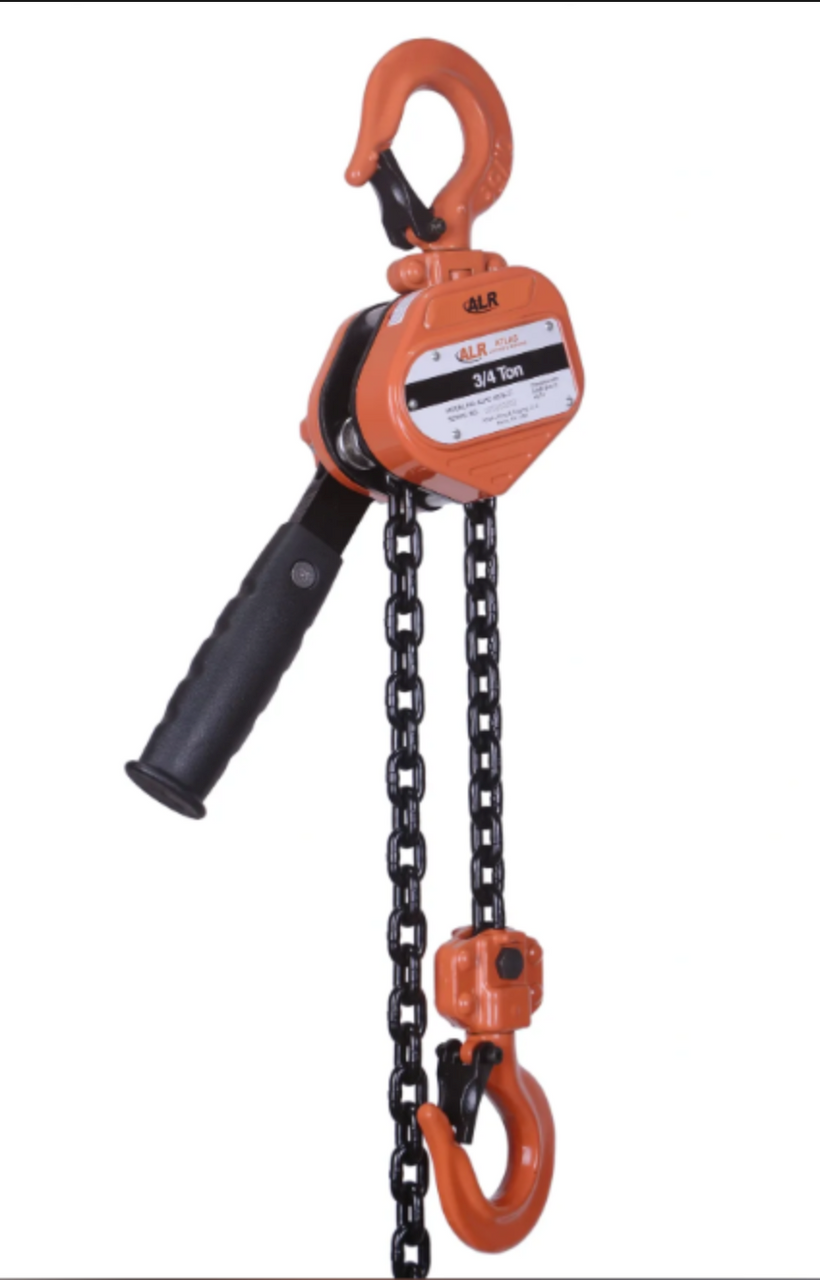

Atlas Lifting and Rigging ALH 3/4 Ton Lever Chain Hoist 20 Ft. Chain

Atlas Lifting and Rigging ALH-008-20 Manual Lever Hoist

The ALH-008-20 manual lever hoist is designed for optimal performance in applications that require extended reach and reliable load handling. With a 0.8-ton (1,600 lbs) capacity and an extended 20-foot lift height, this hoist is ideal for light-duty lifting, pulling, and tensioning tasks where extra chain length is needed.

Made for industry with a heavy-duty steel frame and a heat-treated alloy steel load chain, the ALH-008-20 is designed to perform reliably in harsh environments, ensuring consistent and smooth operation. The compact, ergonomic lever enables precise control, and the forged swivel hooks with safety latches ensure a secure and flexible attachment in various rigging scenarios.

Key Features:

• 0.8-Ton Capacity: Ideal for utility, maintenance, and light industrial applications.
• 20-Foot Lift Height: Extended chain for long-distance lifting and pulling tasks.
• Rugged Steel Housing: Provides durability and long-term reliability.
• Heat-Treated Alloy Steel Load Chain: High-strength, corrosion-resistant chain.
• Ergonomic Lever Handle: Comfortable grip for smooth, controlled operation.
• Reversible Load Direction: Quick and easy switching between lift, lower, and neutral.
• 360° Swivel Hooks with Safety Latches: Provide secure, multi-angle rigging capability.

Specifications:

• Model: ALH-008-20
• Capacity: 0.8 Ton (1,600 lbs / 725 kg)
• Lift Height: 20 ft (6 m)
• Load Chain: Heat-treated alloy steel
• Lever Handle Length: Approx. 14 inches
• Hook Type: Forged steel swivel hooks with safety latches
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 21 lbs (9.5 kg)

The Atlas ALH-008-20 lever hoist delivers extended lift range, dependable operation, and durable construction — a strong choice for light-duty applications requiring longer reach and manual precision.
